21

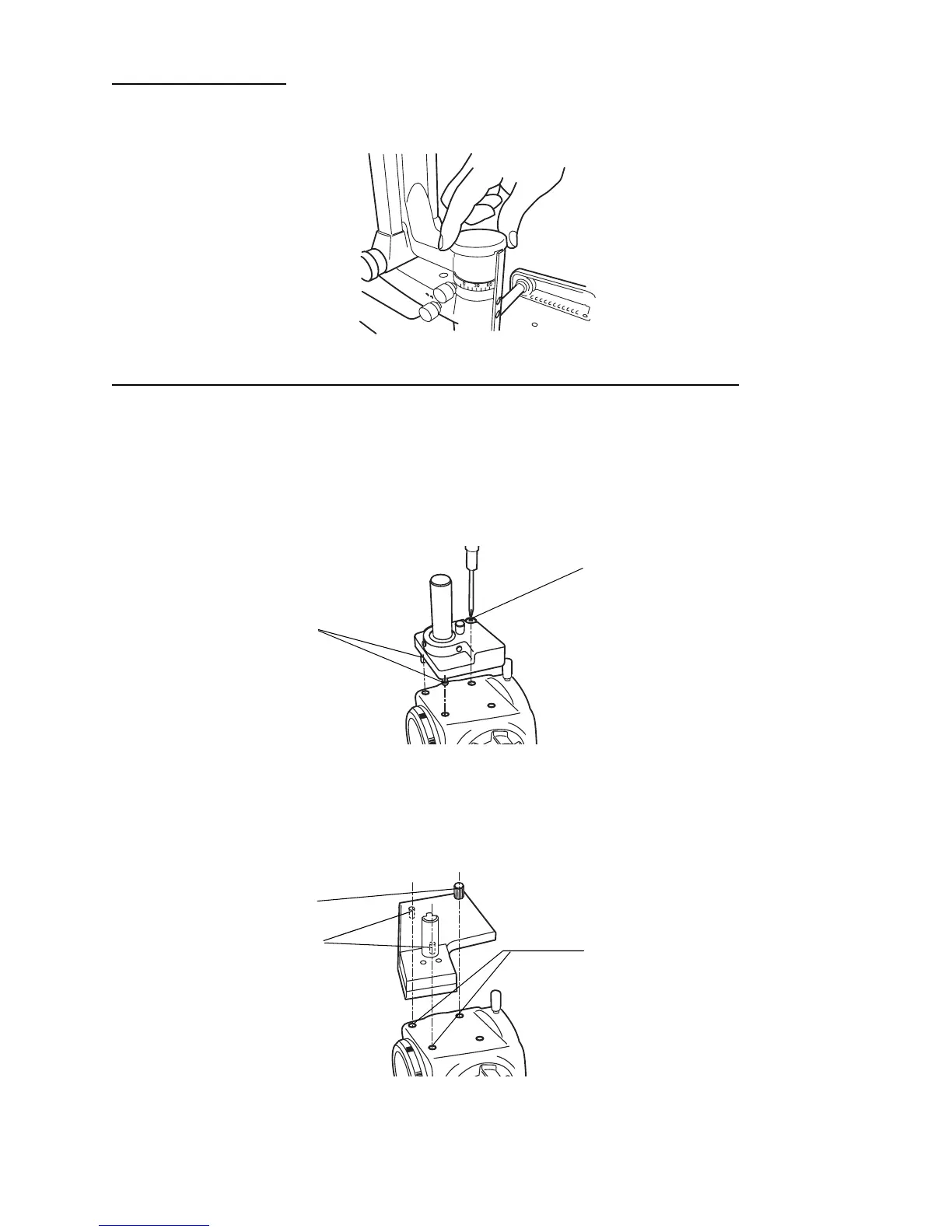

ASSEMBLY PROCEDURE
FITTING THE CAP
1 Fit the cap to the shaft, aligning the guide rod with the groove in the cap.
SECURING THE TONOMETER MOUNT (OPTIONAL ACCESSORY)
SO-TM1 and SO-TM2 may be included in standard accessories, depending on the
specifications.
SO-TM1
1 Align the locating pins of SO-TM1 into the holes of the SL-D2/D4 microscope, and fasten
the screw.
2 The applanation tonometer R900 type can be mounted on SO-TM1.
SO-TM2
1 Align the locating pins of SO-TM2 into the holes of the SL-D2/D4 microscope, and fasten
the fixing knob.
2 The applanation tonometer 870 type can be mounted on SO-TM2.
* Illustration shows
the SL-D2 type.
Locating pins
Screw
* Illustration shows
the SL-D2 type.
Fixing knob
Locating pins
The holes
