ASSEMBLY PROCEDURE
SECURING THE BINOCULAR TUBES

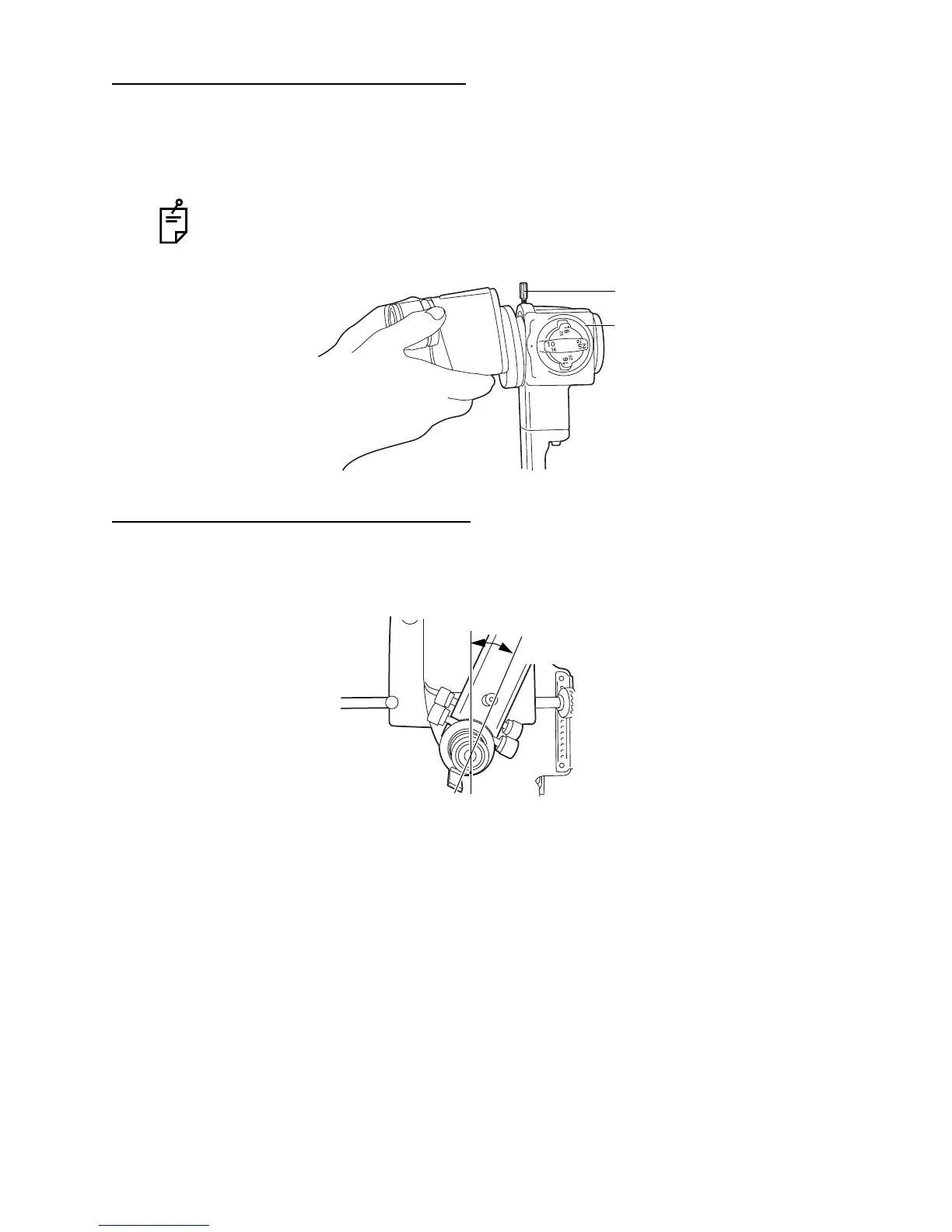

1 Align the pin of the microscope unit with the groove on the binocular tubes, and fasten the
fixing screw.
SECURING THE ILLUMINATION UNIT
1 Loosen the microscope arm locking knob of the base unit. Manually turn the shaft and tilt
the guide rod-shaft index 30-60°. Now refasten the microscope arm locking knob.
Make sure you do not touch the lens surfaces.
Fixing screw
Microscope unit
* The illustration shows
the SL-D2 type.
30° - 60°
