20
ASSEMBLY PROCEDURE

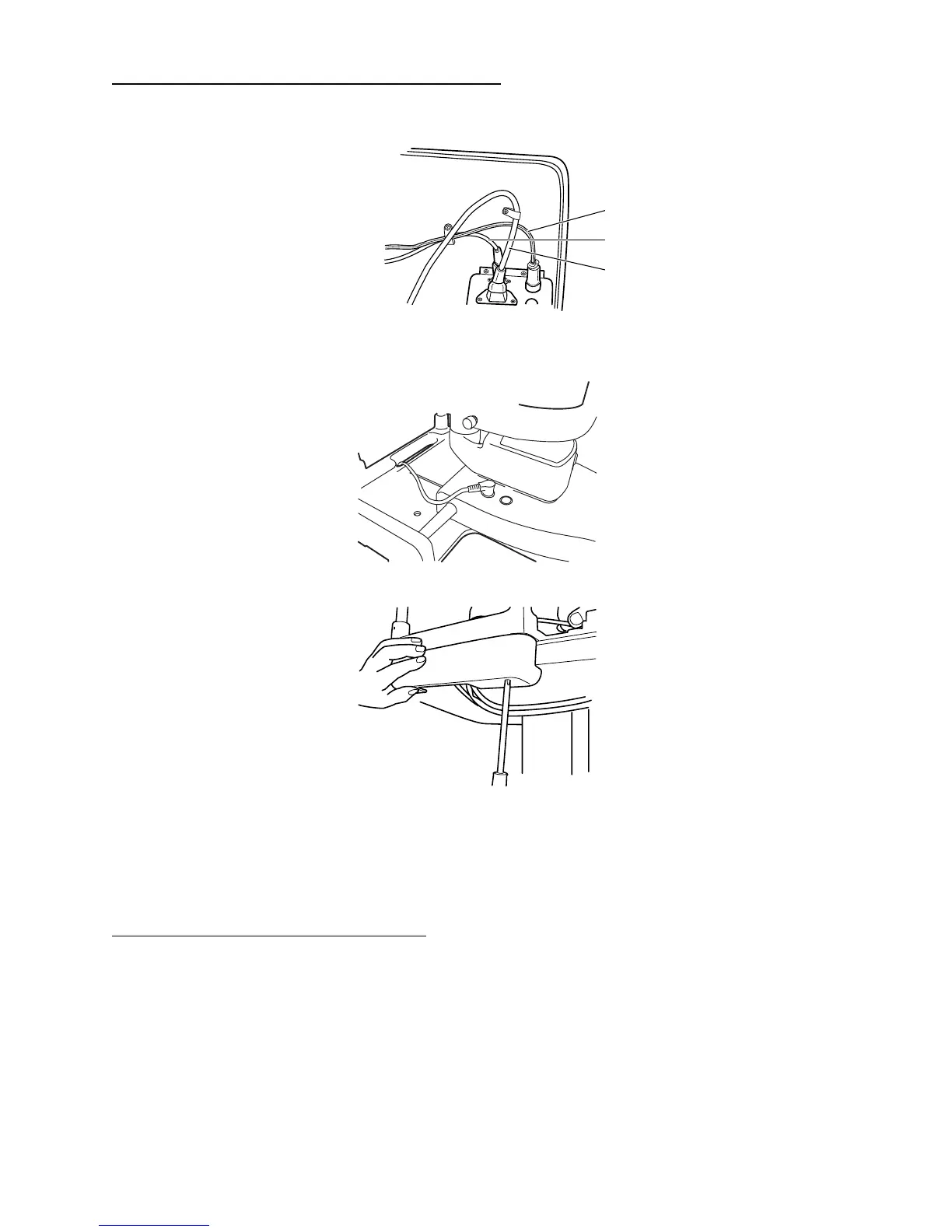

CONNECTING AND SECURING CABLES
1 Connect the cable of the illumination unit and the power cable to the power supply.
2 Pass the 5-pin connector of the metal plug connected to the power supply through the
hole of the chinrest and connect it to the base unit.
3 Fit the cable cover with 2 screws (10).
4 Pull the base unit toward the side of the operator, then lock it. Attach the cables to the
back of the table with the cable clip.
5 Move the base unit and illumination unit, and make sure there is enough cable to allow
free movement of the base unit in all directions.
FITTING THE CHINREST TISSUE
1 Remove the chinrest tissue pins.
2 Take approximately one-fifth of the pad of chinrest tissues and secure this at each end
with the pins.
Fixation cable
Illumination cable
Power cable
