CHAPTER 2– OPERATING CONDITIONS AND COMPONENTS
15 MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070

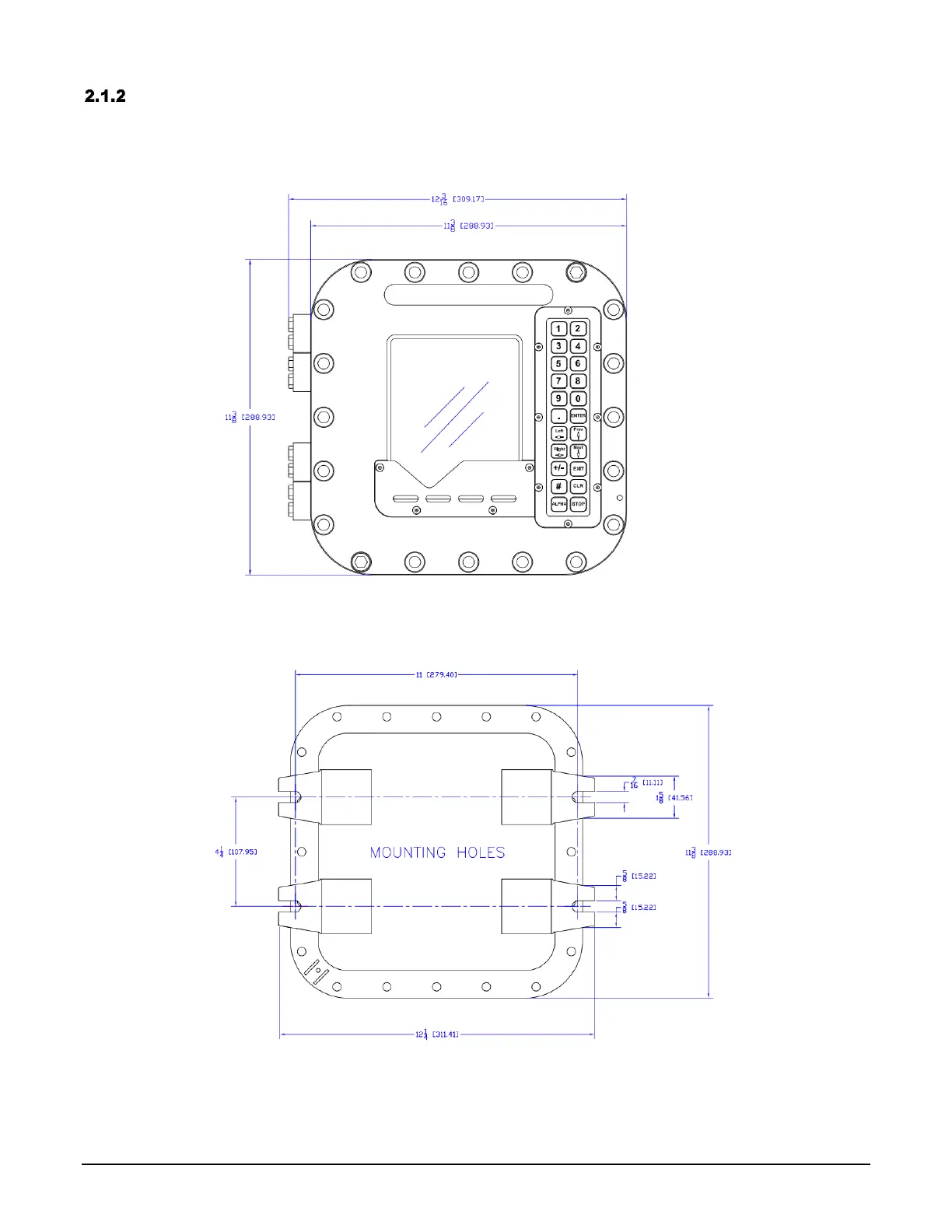

MultiLoad II/ RCU II – EXL Model – Dimensions
The dimensions in this section are indicated in inches and millimeters (in parenthesis).
2.1.2.1 Front View
Figure 2.2 Unit Outline Drawing – Front View
2.1.2.2 Back View
Figure 2.3 Unit Outline Drawing – Back View
