Toptech MultiLoad II EXL User Manual

CHAPTER 4– DATA COMMUNICATIONS INTERFACE
31 MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070
4.2.2.4 Ethernet – Host/TMS Communications
The Host/TMS Computer System can be connected to the MultiLoad II/ RCU II using Ethernet.
The Ethernet controller on revision 2.0 CPU boards uses HP Auto-MDIX technology. By
automatically detecting the signaling on the connected device, the transceiver will configure the
port settings automatically. Thus, the choice of a straight through or cross over cable no longer
has to be made—either will work.
Ethernet is available on MultiLoad II/RCUII with revision 2.0 or higher CPU boards.

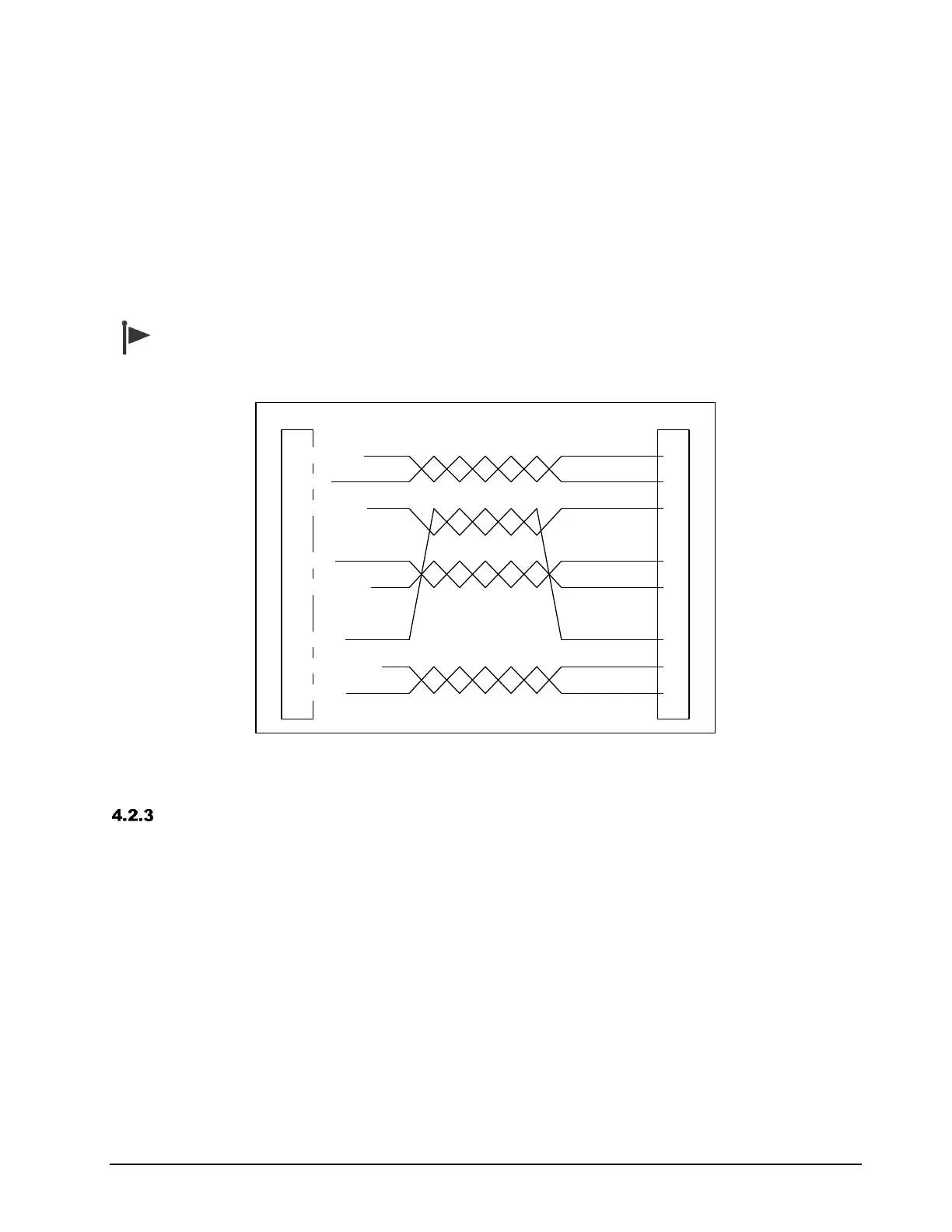

Figure 4.8 Ethernet Connections
Host Ticket Printer/Data Logger
Ticket Printers or alibilog printers can be connected to the MultiLoad II/ RCU II in the following
ways:
- RS 232 on COM1
- RS 232 on COM2
- Ethernet on the ethernet port
1 White/org 1
7 White/Brown
6 Green
5 White/Blue
4 Blue
3 White/Grn
2 Org
8 Brown
6
7
8
5
4
3
2
Twisted Pairs
