CHAPTER 7– SERVICE AND REPAIR
69 MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070
CPU Subassembly Removal and Replacement
The CPU subassembly exists out of the CPU chassis with the power supply/communications board and
the CPU mounted. Optionally, an I/O board can be added to this subassembly. The CPU subassembly
is comprised of different Toptech Parts.

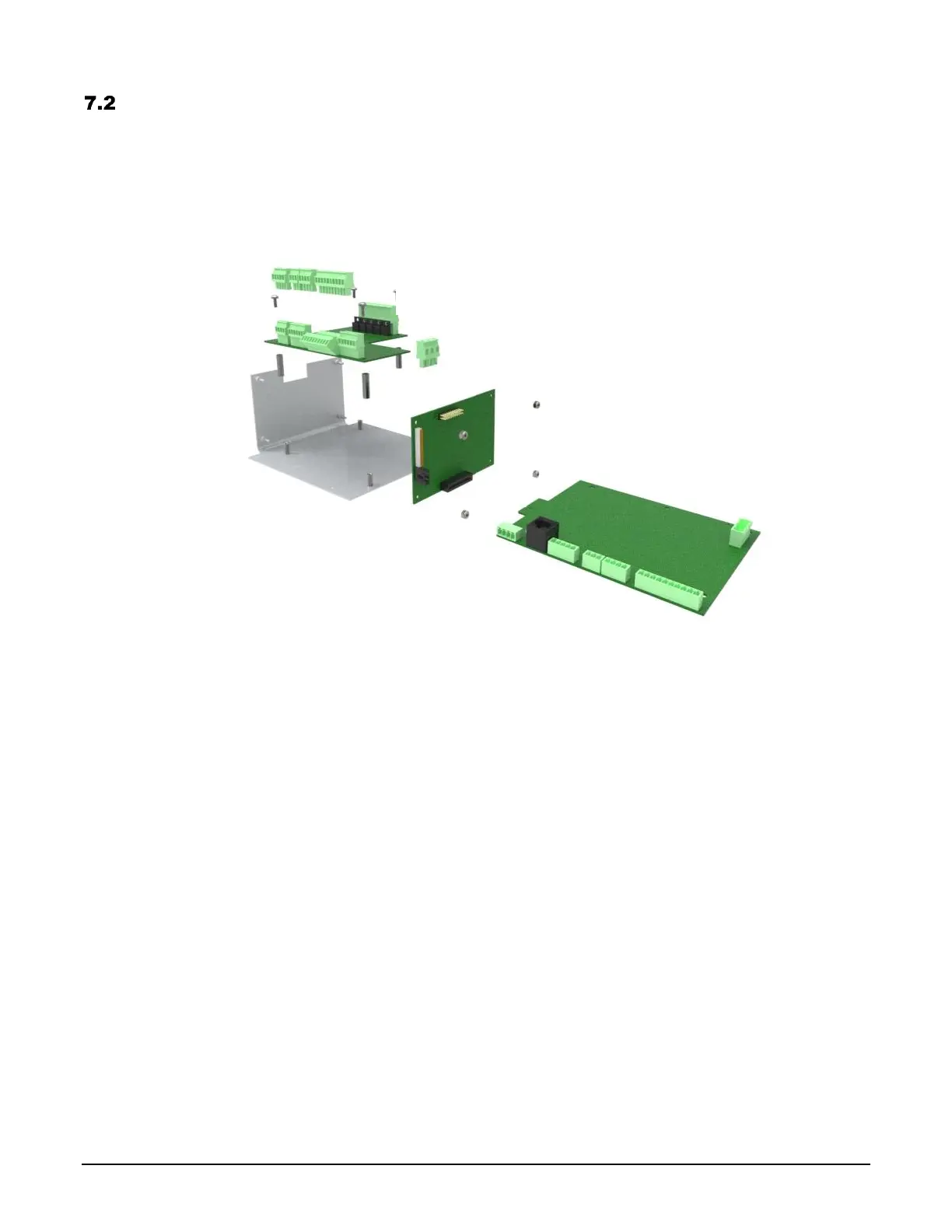

Figure 7.3 CPU Board, Power Supply / Comm Board, I/O Board with Chassis
Part Numbers:
Power Supply & Communication Board:
AC –Power Supply Board: 4728
DC – Power Supply Board: 4729
CPU Board: 4727
I/O Boards:
Digital/Analog I/O Board: 4718
2 Meter I/O Board: 4723
