CHAPTER 4 DATA COMMUNICATIONS INTERFACE
33 MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070
A Special variant of the ticket printing uses the PTB protocol.
A PTB printer can be connected to the MultiLoad II/ RCU II via RS232 on COM 2 or COM1:

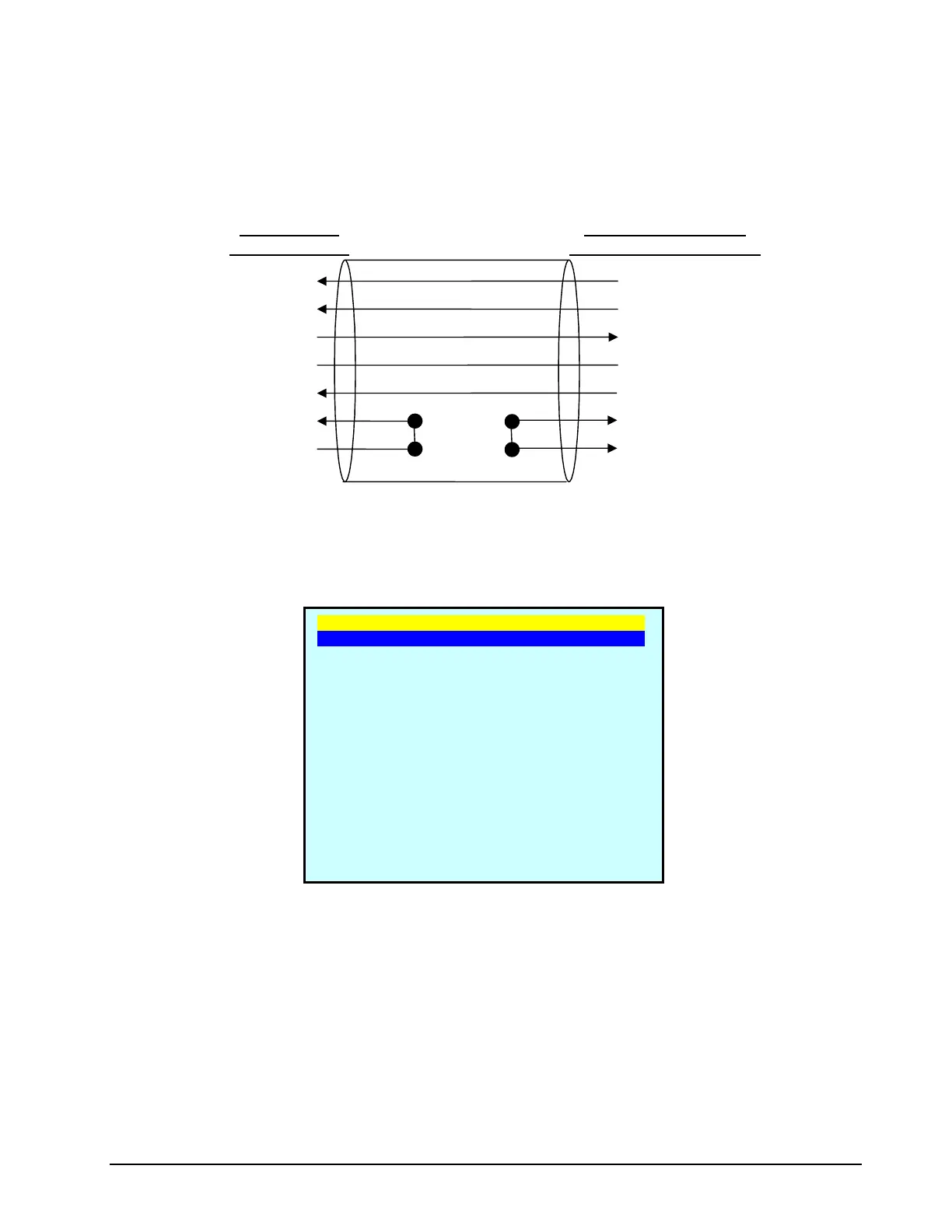

Figure 4.11 PTB Printer Connection with Handshake
Figure 4.12 PTB Printer Configuration
MultiLoad II/
RCU II COM 2
PTB Printer/ Logger
RS232 DB25 Connector
RX
CTS
TX
GND
DSR
(N/C) DCD
(N/C) RTS
(N/C) DTR
2 TX
20 - DTR
3 RX
7 GND
4 RTS
5 CTS (N/C)
6 DSR (N/C)
8 DCD (N/C)
COMMUNICATION SETUP COM (1) .
Baud Rate: 9600
Parity : Even
Data Bits : 7 Data
Stop Bits : 1 Stop
Multidrop Single
Type : PTB
Next Prev Exit Enter
