Feedback Controlyzer DigiLock 110
Page 32
Status: 5.12.17
8.2.5 Settings
The Settings function enables the user to access additional options of the DigiLock 110. It is splitted into
the following six tabs according to the affected functionality:
8.2.5.1 PID
1. On this tab all advanced parameters for the PID modules can be set.

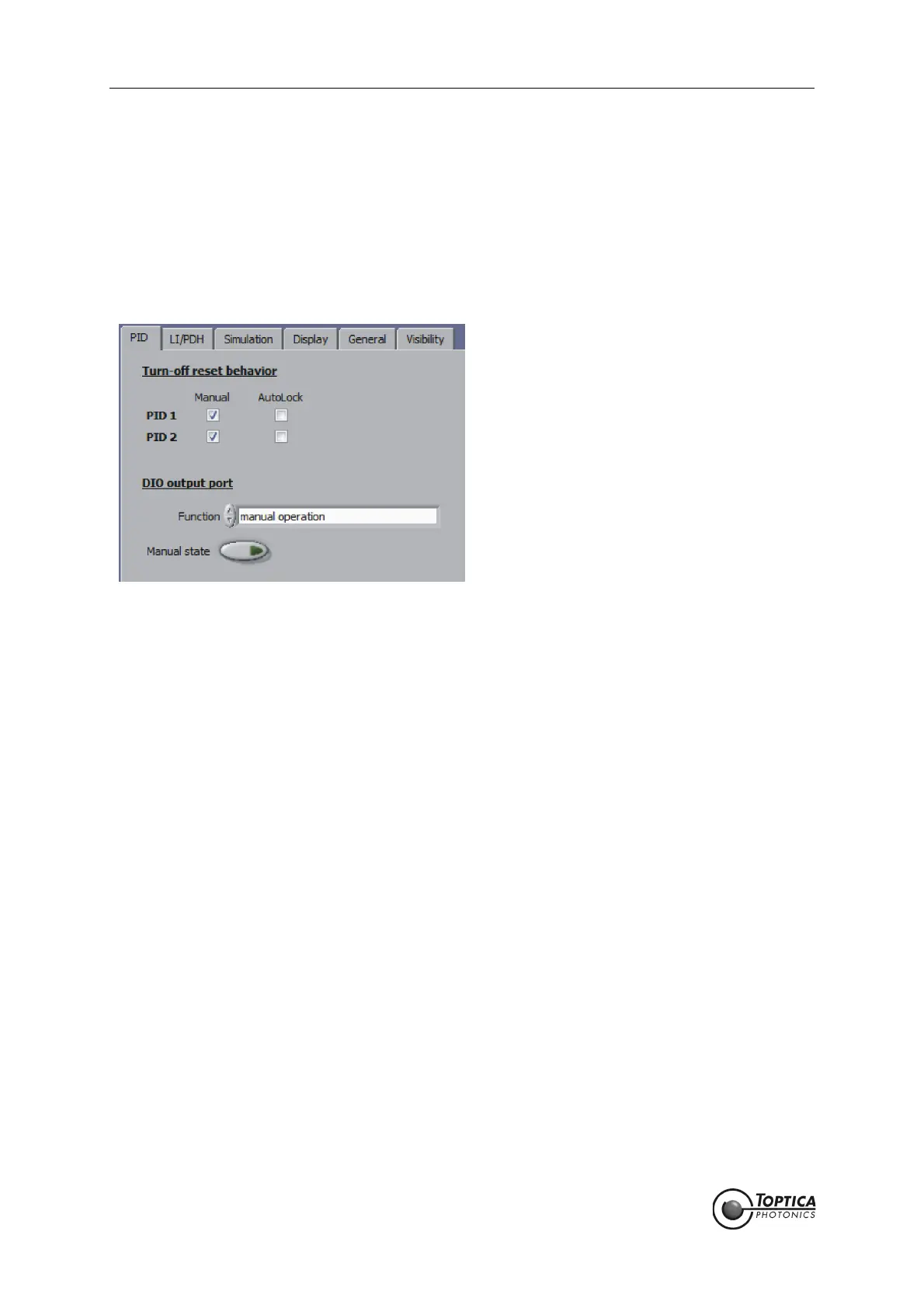

Figure 20 PID tab in the Settings function
Turn-off Behavior PID 1 and PID 2
Manual/Autolock: Controls the behavior of the PID controllers when switching off the lock.
Both PID controllers can be set individually for AutoLock as well as Man-
ual Mode. When checked the PID output is set to zero, hence, the out-
put returns to the initial offset. If unchecked the current PID value is
transferred to the offset value of its output channel (box unchecked) or
the PID output is simply set to zero (box checked). In this case the scan
will be centered around the last output value, which is suitable when
the PID controller offset has been compensating an offset drift.
DIO output port:
DIO output port
Function: Configures the function of the DIO (digital input/output) port when jum-
pered as output (factory setting). Four different modes are available
(manual operation, PID 1 within Lock Window range, PID 2 within Lock
Window range, PID 1 and PID 2 within Lock Window range).
Manual state: When the function selector (above) is in position "manual operation",
the state of the DIO output port can be set manually, e.g. for testing.
