Feedback Controlyzer DigiLock 110
Page 18
Status: 5.12.17
8.2 Functions
In the upper part of the screen all the available functions and options of the DigiLock 110 are displayed
on different layers. With the buttons on the left hand side you can select the desired function and then
browse the corresponding options and parameters.
8.2.1 Lock
This function comprises all the modules needed for scanning and locking of the laser.
8.2.1.1 Scan

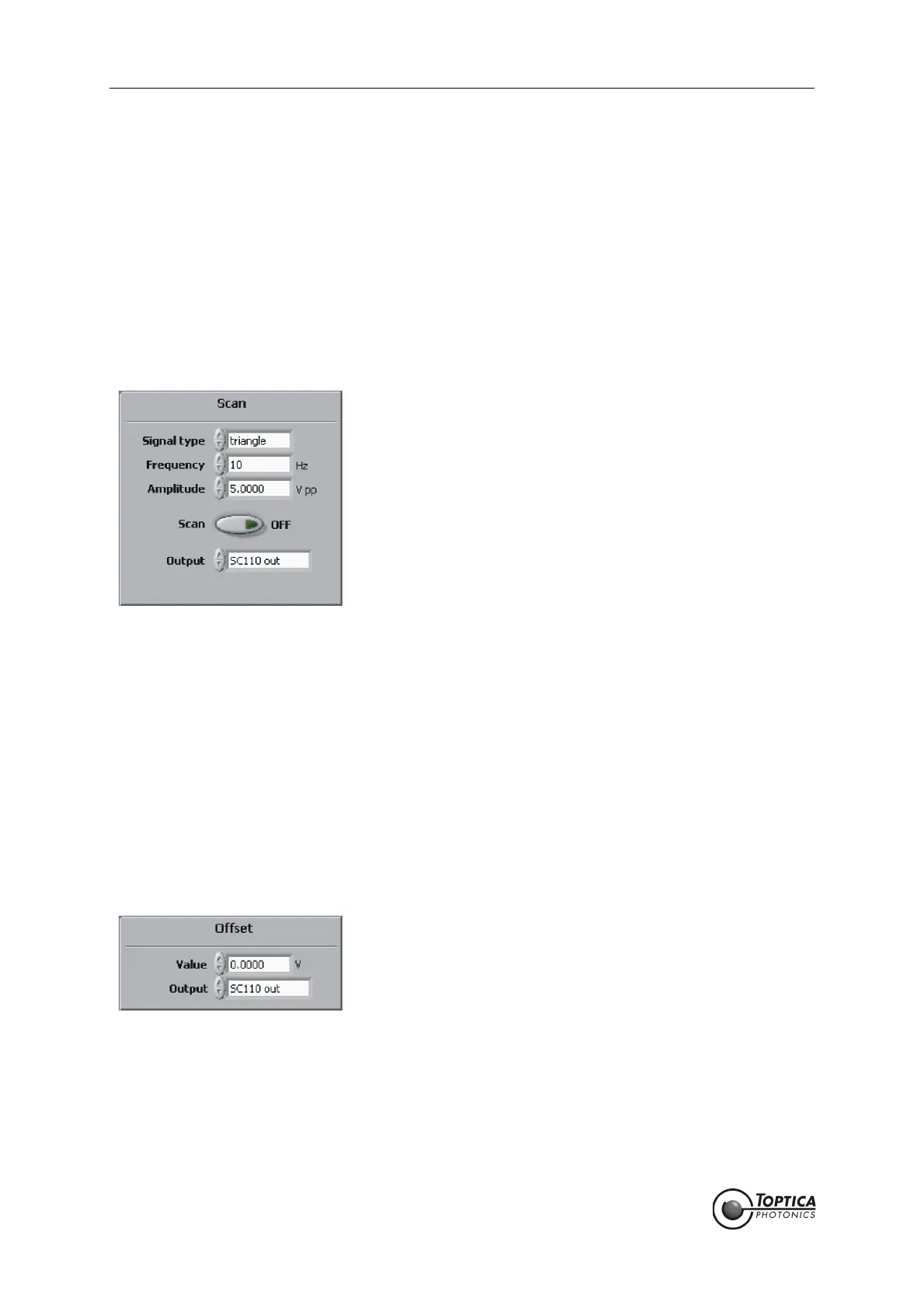

Figure 9 Scan module
The Scan module is used to generate periodic waveforms with user adjustable parameters. The signal
can be directed to different output channels.
Signal type: Type of the generated waveform (sine, triangle, square or sawtooth).
Frequency: Repetition frequency of the chosen waveform in Hz.
Amplitude: Peak-to-peak amplitude in Volts.
Scan button: Turn signal generation on/off (indicated by the green light).
Output: Output channel to which the generated signal is directed.
8.2.1.2 Offset
Figure 10 Offset adjustment
With the Offset Adjustment module it is possible to view and change the DC voltage level of the selected
output channel.
Offset: Signal level in Volts.
Output: Output channel to which the offset voltage applies.
