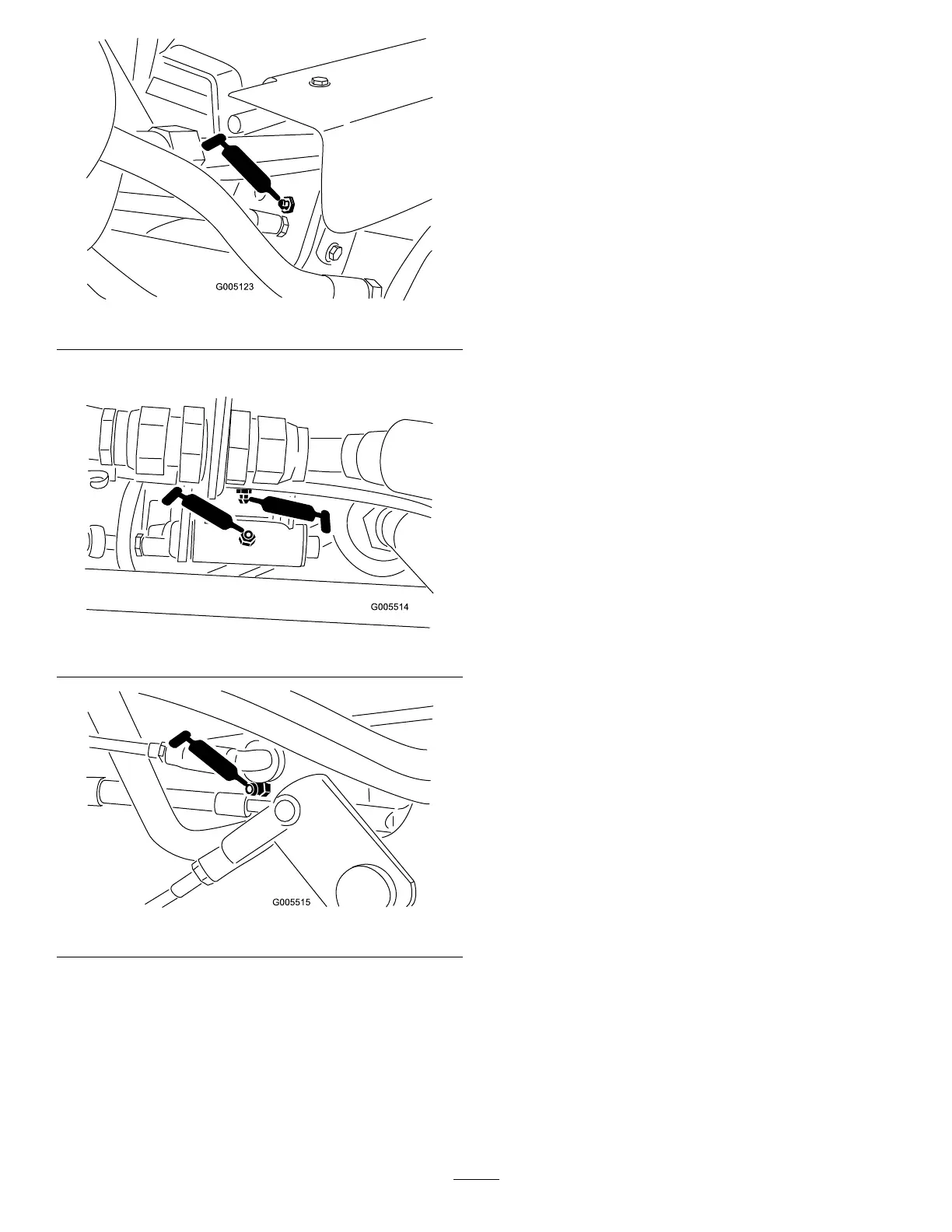

Figure43
•Speedselectorlinkage(Figure44&Figure45)
Figure44
Figure45
Togreasethemachine,completethefollowing
procedure:
1.Wipethegreasettingcleansoforeignmatter
cannotbeforcedintothebearingorbushing.
2.Pumpgreaseintothebearingorbushinguntilthe
greaseisvisible.Wipeupexcessgrease.
3.Applygreasetothereelmotorsplineshaftandonto
theliftarmwhenthecuttingunitisremovedfor
service.
4.ApplyafewdropsofSAE30engineoilorspray
lubricant(WD40)toallpivotpointsdailyafter
cleaning.
33
