•Frontandrearaxlepivotbushings(2)(Figure39)
•Steeringcylinderballjoints(2)(Figure40)
•Tierodballjoints(2)(Figure40)
•Kingpinbushings(2)(
Figure40).
Thetopttingonthekingpinshouldonlybe
lubricatedannually(2pumps).

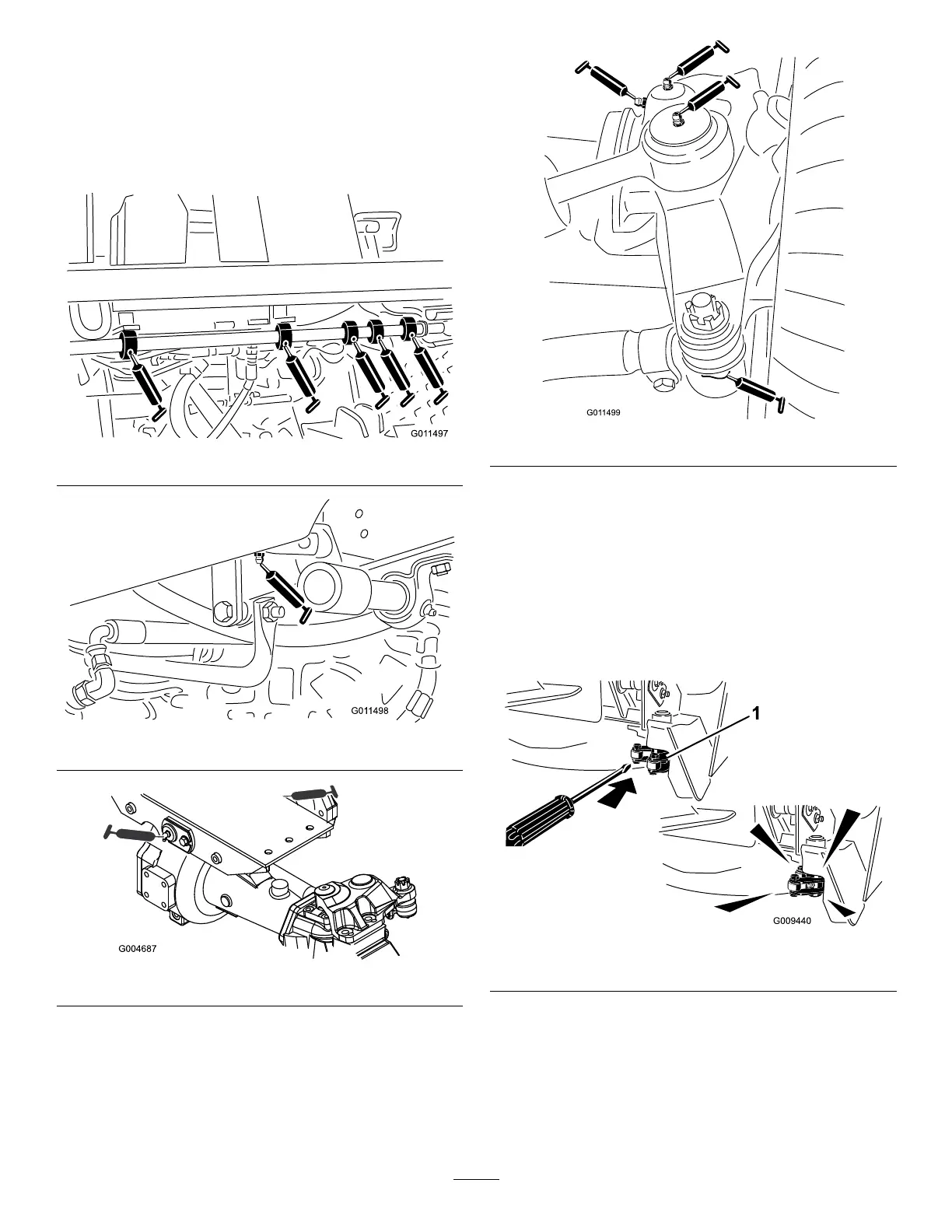

Figure37
Figure38
Figure39
Figure40
CenterCuttingUnit
Note:Deckmayhavetoberaisedtoexposethegrease
ttingsforthelatchpivotandthelowerlink.
•Latchpivot(2)(Figure42)
Note:Thelatch(Figure41)mayneedtobemanually
trippedtogainaccesstothegreasetting.Useaprybar
tocloseandre-openthelatch
Figure41
1.Latch
