PreparingtoServicetheEngineOil
Important:Thefastenersforthefrontenginepanelare
designedtoremainonthemachineaftercoverremoval.
Loosenallofthefastenersafewturnssothatthepanel
isloosebutstillattached,thengobackandloosenthem
untilthepanelcomesfree.Thispreventsyoufrom
accidentallystrippingtheboltsfreeoftheretainers.
Tilttheseatforward,loosentheboltsholdingthefront
enginepanelandremoveit(Figure55).
G012347
1
1
2
g012347

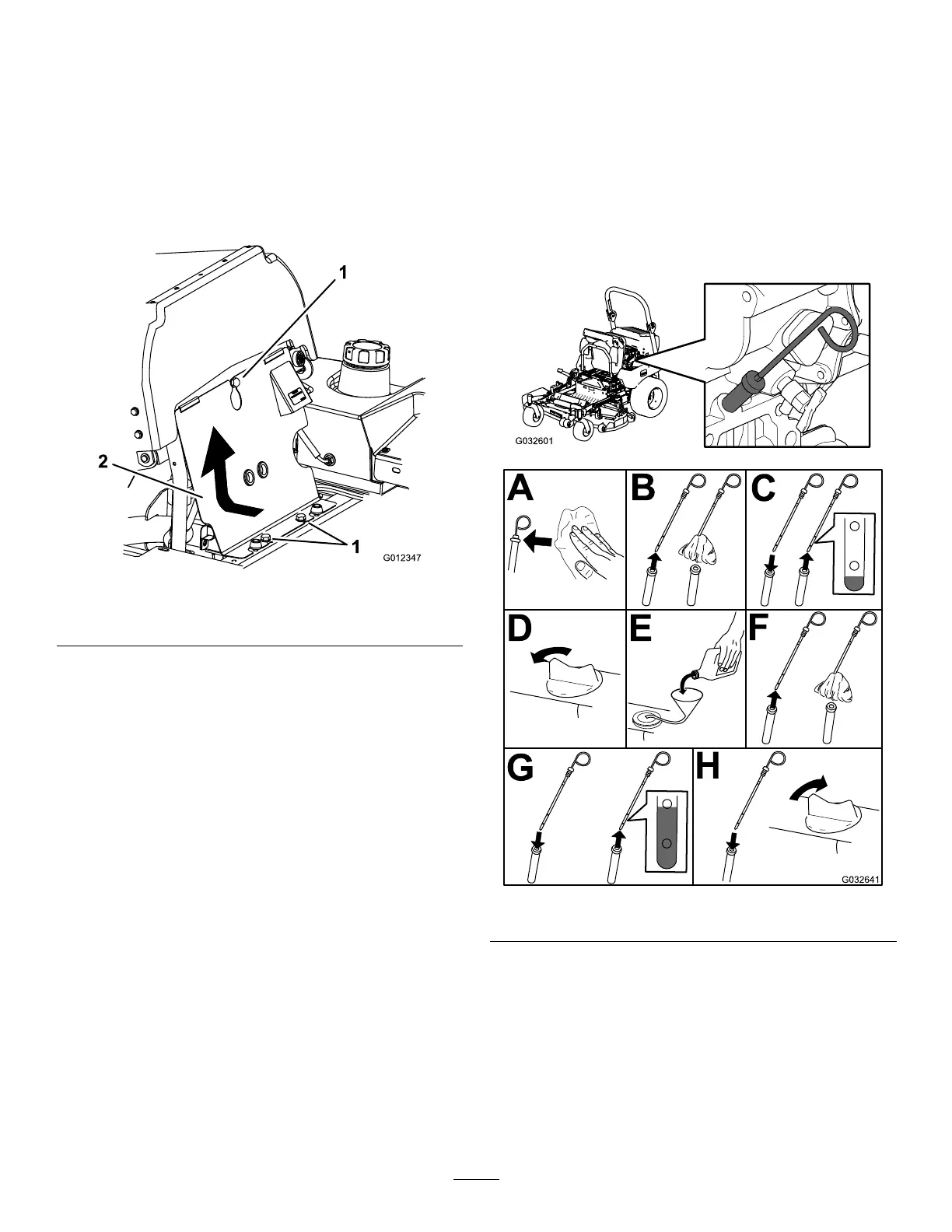

Figure55
1.Bolt2.Frontenginepanel
Note:Afterservicingtheengineoil,installtheenginepanel
andtilttheseatintoitsuprightposition.
CheckingtheEngine-OilLevel
ServiceInterval:Beforeeachuseordaily
Note:Checktheoilwhentheengineiscold.
1.Disengagetheblade-controlswitch(PTO),movethe
motion-controlleverstotheNEUTRAL-LOCKposition,
andengagetheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Checktheengine-oillevel(Figure56).
g032601
g032641
Figure56
4.Starttheengine,runitatidlefor5minutes,shutoff
theengine,waitfor3minutes,andthencheckthe
engine-oillevel.Ifneeded,addoiluptotheFULLmark
onthedipstick.
Important:Besuretokeeptheengine-oillevel
betweentheupperandlowerlimitsontheoil
gauge.Enginefailuremayoccurasaresult.
Important:Addtheoilveryslowlyanddonot
blocktheopeningofthellerhole(Figure40).If
