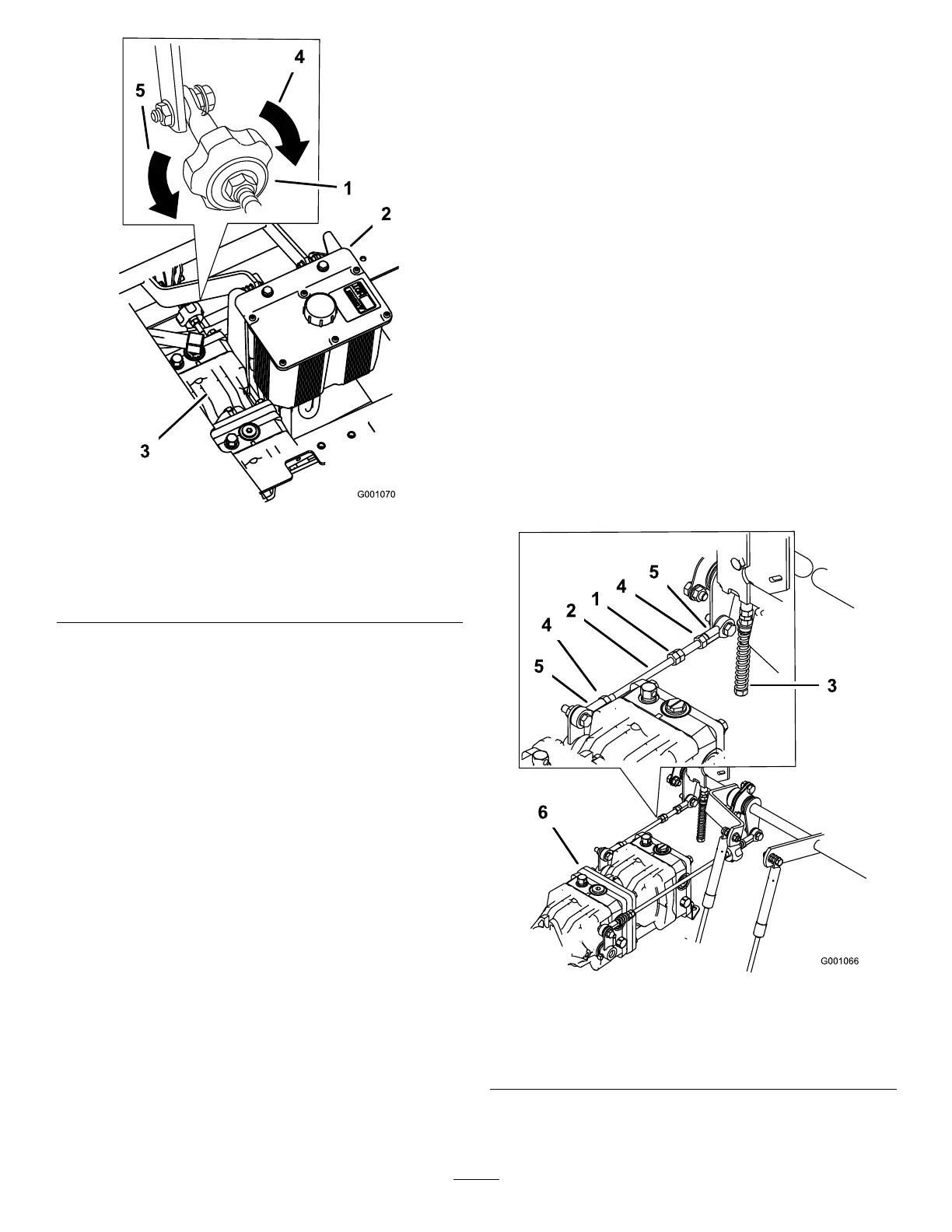

g001070
Figure95
1.Trackingknob4.Turnthiswaytotrackright
2.Hydraulictank
5.Turnthiswaytotrackleft
3.Hydraulicpumps
SettingtheLeftHydraulicPumpNeutral
Position
1.Loosenthelocknutsattheballjointsonthepump
controlrod(Figure96).
2.Starttheengine,openthethrottle1/2wayand
disengageparkingbrake;refertoStartingandShutting
OfftheEngine(page24).
Note:Themotion-controllevermustbeinneutral
whilemakinganyadjustments.
Note:Thefrontnutonthepumprodhasleft-hand
threads.
3.Adjustthepumprodlengthbyrotatingdoublenutson
rod,intheappropriatedirection,untilwheelisstillor
slightlycreepsinreverse(Figure96).
4.Movethemotion-controlleverforwardandreverse,
thenbacktoneutral.Thewheelmuststopturningor
slightlycreepinreverse.
5.Openthethrottletofast.Makesurethatthewheel
remainsstoppedorslightlycreepsinreverse,adjust
ifnecessary.
6.Tightenthelocknutsattheballjoints(Figure96).
g001066
Figure96
1.Doublenuts4.Locknut
2.Pumprod5.Balljoint
3.Adjustmentbolt6.Pumps
