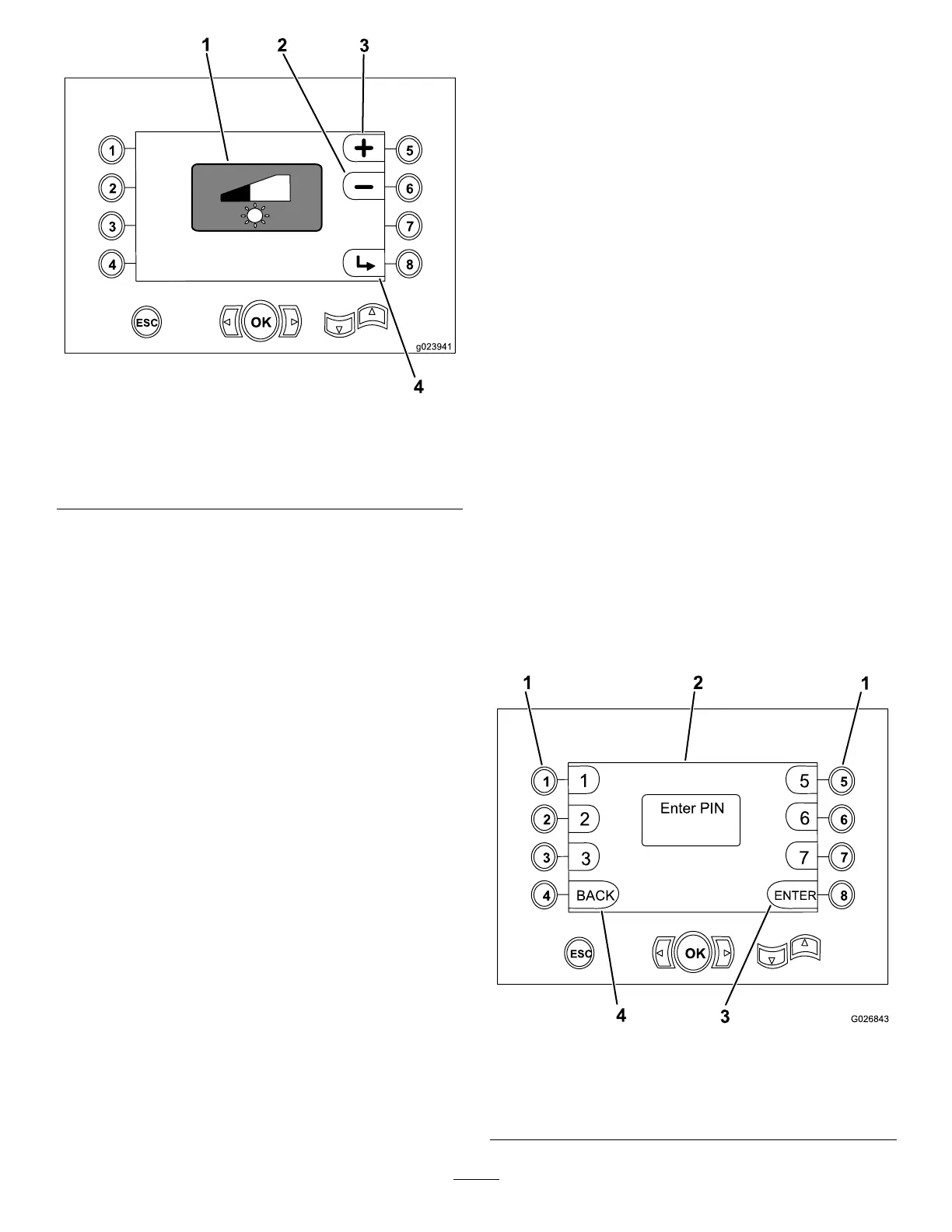

Figure36
1.Displaybrightness
indicator
3.Increasebrightness
2.Decreasebrightness4.Returntotheprevious
screen
AccessingtheTrencherDiagnosticsFunctionScreen
YouwillneedaPINtoaccessthisscreen;toobtainthePIN,
contactanAuthorizedToroDistributor.
AccessingtheTrencherErrorsInformationScreen
YouwillneedaPINtoaccessthisscreen;toobtainthePIN,
contactanAuthorizedToroDistributor.
AccessingtheEngineErrorsInformationScreen
YouwillneedaPINtoaccessthisscreen;toobtainthePIN,
contactanAuthorizedToroDistributor.
SettingtheFrontandRearSteering
Positions
Note:ThisprocedurerequiresthatyouhavethePIN
number,whichyoucanobtainfromanAuthorizedService
Dealer.
1.Pressbuttonnumber2[Trencher(tractionunit)setup]
onthemain-selectionscreen;refertoAccessingthe
Main-SelectionScreen(page30).
2.Enterthefollowingprogrammingmodesbyentering
thePINforthefollowingfunctions:
Note:Toaccessthecomputerfunctionfor
themachine,youmustentertheunique8-digit
identicationnumberassignedtothesetoffunctions.
•Maintenance-clearing(8-digitPIN)
•Diagnostic(8-digitPIN)
Note:Thenumbers(1,2,and3)andtheletters(A,
B,andC)shownonthedisplayscreenarenotthe
functionalPINnumbers.
EachbuttonentersintothePINasfollows:
•Button1entersthenumber1(Figure37)
•Button2entersthenumber2(Figure37)
•Button3entersthenumber3(Figure37)
•Button5enterstheletterA(Figure37)
•Button6enterstheletterB(Figure37)
•Button7enterstheletterC(Figure37)
Note:Numbers1,2,3,5,6,and7aretheonlynumbers
thatcanbeusedforthePIN.
Figure37
1.Buttonsforcorresponding
PINnumbers
3.EnterPIN
2.PINentryappearshere4.Returntotheprevious
screen
