6.Repeatsteps3through5fortheleft,rearroll

barassembly.

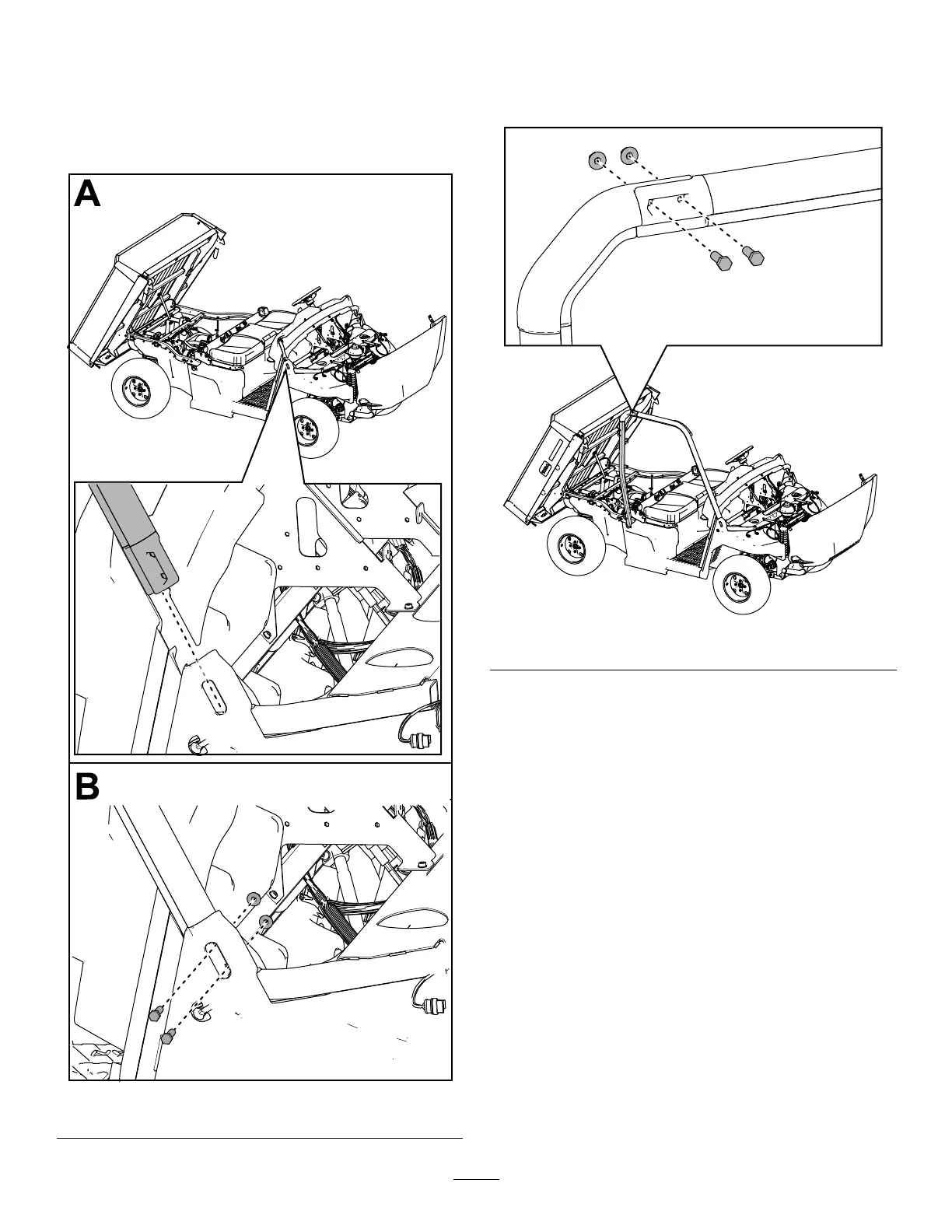

7.Looselysecuretheright,frontrollbarassembly

totherightrollbarmountbracketusing2

hex-headbolts(3/8x1-1/4inches)and2

locknuts(3/8inch)asshowninFigure13.

g361799

Figure13

8.Looselysecuretheright,frontrollbarassembly

totheright,rearrollbarassemblyusing2

hex-headbolts(3/8x1-1/4inches)and2

locknuts(3/8inch)asshowninFigure14.

g361800

Figure14
