Toro Workman UTX User Manual

Name: Toro Workman UTX
Brand: Toro
Rating: 5 (1 reviews)

112 pages

To Next Page

To Previous Page

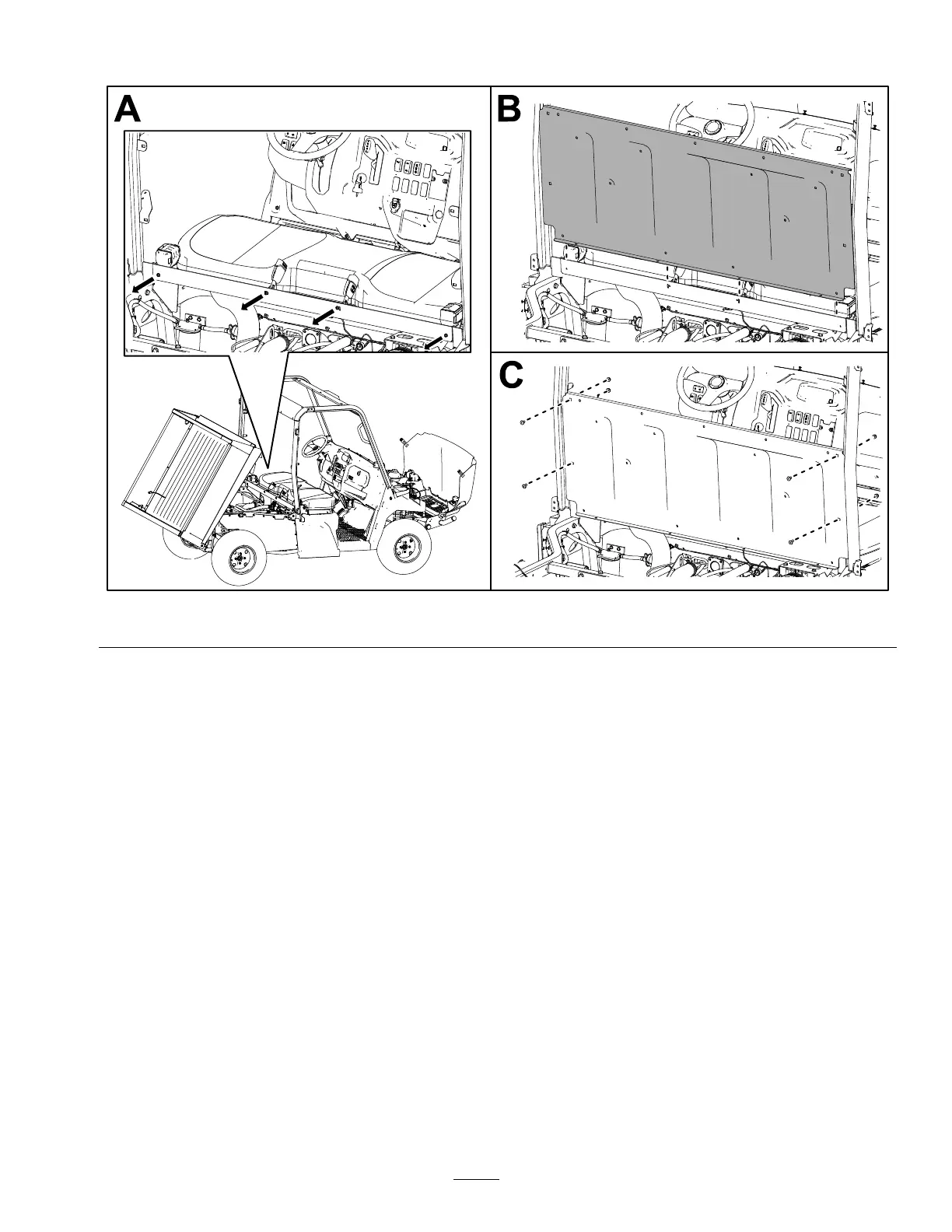

13.Securetheseatpaneltotherearrollbar

assembliesusing4carriagebolts(5/16x3/4

inch)and4locknuts(5/16inch)asshownin

Figure18.

g362076

Figure18

Table of Contents4
Safety5
General Safety5
Safety and Instructional Decals6
Setup9
Installing the Steering Wheel9
Connecting the Battery10
Changing the Blinker Mode from United States (US) to European (EU)11
Converting the Speedometer from Mph to Km/H11
Checking the Fluid Levels and Tire Pressure12
Installing the Rollover Protection System (ROPS)13
Installing the Rollover Protection System31
(Rops)31
Burnishing the Brakes51
Product Overview52
Controls52
Specifications58
Attachments/Accessories58
Before Operation59
Before Operation Safety59
Performing Daily Maintenance59
Checking the Tire Pressure60
Adding Fuel60
Breaking in a New Machine61
During Operation61
During Operation Safety61
Operating the Cargo Bed63
Starting the Engine65
Driving the Machine65
Using the Cruise Control66
Adjusting the Ground Speed Governor66
Stopping the Machine66
Shutting off the Engine66
Using the 4-Wheel Drive/Differential Lock(S)67
Controlling the Engine Throttle While in the P (PARK ) Position68
Loading the Cargo Bed69
After Operation70
After Operation Safety70
Hauling the Machine70
Towing the Machine71
Towing a Trailer71
Maintenance72
Maintenance Safety72
Recommended Maintenance Schedule(S)73
Daily Maintenance Checklist75
Maintaining the Machine under Special Operating Conditions75
Pre-Maintenance Procedures76
Preparing the Machine for Maintenance76
Raising the Machine76
Accessing the Hood77
Lubrication78
Greasing the Machine78
Engine Maintenance80
Engine Safety80
Servicing the Air Cleaner80
Servicing the Engine Oil81
Servicing the Spark Plugs83
Checking and Adjusting the Alternator Belt84
Checking the Spark-Plug Wires85
Checking the Positive Crankcase Ventilation (PCV) Valve86
Checking the Timing Belt86
Checking the Intake/Exhaust-Valve Clearance87
Fuel System Maintenance88
Checking the Fuel Lines and Connections88
Electrical System Maintenance88
Electrical System Safety88
Servicing the Battery88
Servicing the Fuses92
Drive System Maintenance93
Maintaining the Tires93
Checking the Steering and Suspension Components93
Checking/Adjusting the Front Wheel Alignment94
Adjusting the Front Ride Height95
Checking the Transaxle-Fluid Level96
Changing the Transaxle Fluid96
Checking the Front Differential Oil Level97
Changing the Front Differential Oil97
Cooling System Maintenance98
Cooling System Safety98
Checking the Engine-Coolant Level98
Removing Debris from the Cooling System99
Checking the Coolant Hoses100
Changing the Engine Coolant100
Brake Maintenance101
Checking the Brakes101
Checking the Brake-Fluid Level101
Changing the Brake Fluid101
Belt Maintenance102
Servicing the Drive Belt102
Cleaning103
Washing the Machine103
Storage104
Storage Safety104
Storing the Machine104
Troubleshooting105
