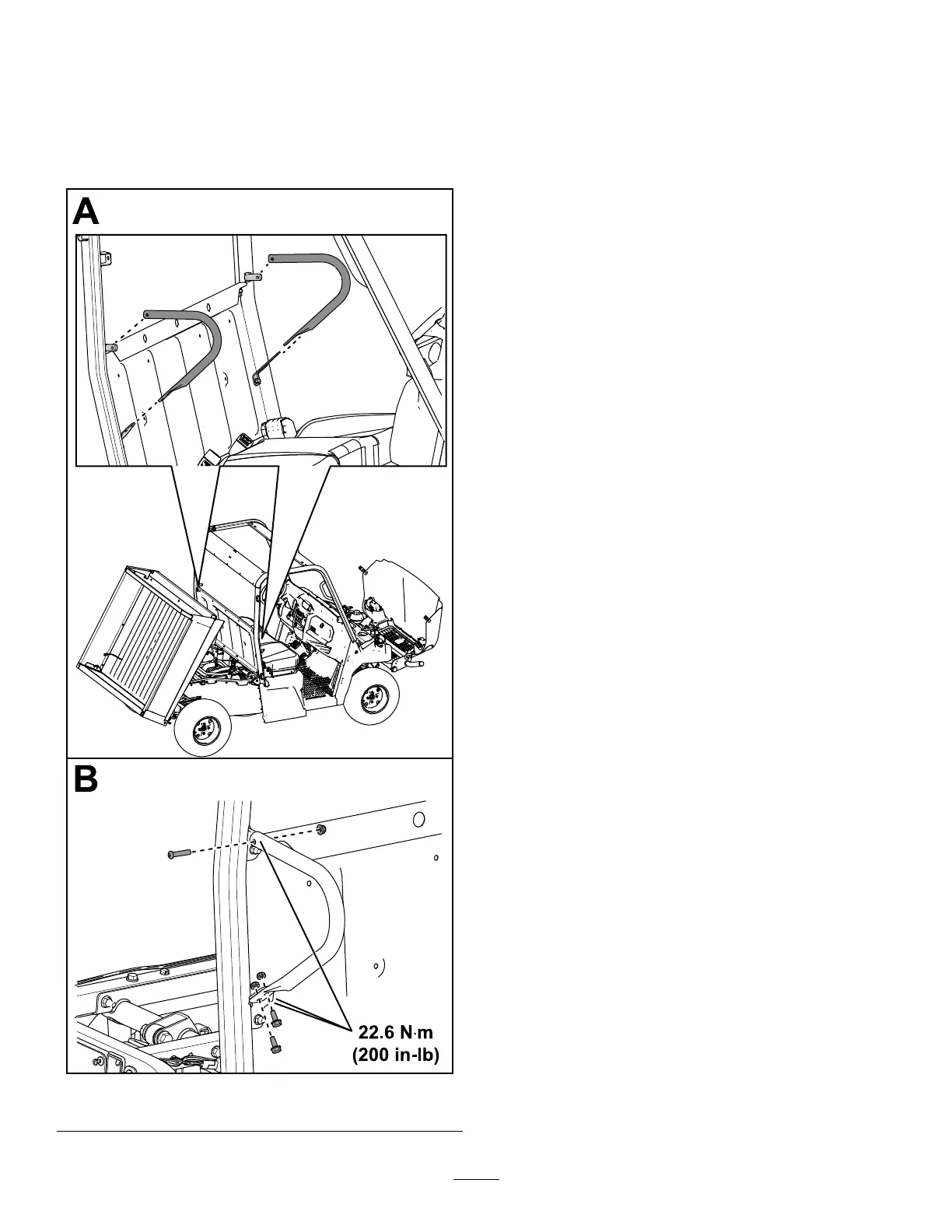

16.
Secure
the
2
shoulder
restraints
to
the
rear
roll
bar
assemblies
using
4
hex-washer
head
bolts
(5/16
x
3/4
inch),
2
button-head
bolts
(5/16
x
1-1/2
inches),
and
2
locknuts
(5/16
inch)
as
shown
in
Figure
21
.
T
orque
the
locknuts
(5/16
inch)
to
22.6
N∙m
(200
in-lb)
as
shown
in
Figure
21
.
g361806
Figure
21
23
22
24
Table of Contents
Table of Contents
4
Safety
5
General Safety
5
Safety and Instructional Decals
6
Setup
9
Installing the Steering Wheel
9
Connecting the Battery
10
Changing the Blinker Mode from United States (US) to European (EU)
11
Converting the Speedometer from Mph to Km/H
11
Checking the Fluid Levels and Tire Pressure
12
Installing the Rollover Protection System (ROPS)
13
Installing the Rollover Protection System
31
(Rops)
31
Burnishing the Brakes
51
Product Overview
52
Controls
52
Specifications
58
Attachments/Accessories
58
Before Operation
59
Before Operation Safety
59
Performing Daily Maintenance
59
Checking the Tire Pressure
60
Adding Fuel
60
Breaking in a New Machine
61
During Operation
61
During Operation Safety
61
Operating the Cargo Bed
63
Starting the Engine
65
Driving the Machine
65
Using the Cruise Control
66
Adjusting the Ground Speed Governor
66
Stopping the Machine
66
Shutting off the Engine
66
Using the 4-Wheel Drive/Differential Lock(S)
67
Controlling the Engine Throttle While in the P (PARK ) Position
68
Loading the Cargo Bed
69
After Operation
70
After Operation Safety
70
Hauling the Machine
70
Towing the Machine
71
Towing a Trailer
71
Maintenance
72
Maintenance Safety
72
Recommended Maintenance Schedule(S)
73
Daily Maintenance Checklist
75
Maintaining the Machine under Special Operating Conditions
75
Pre-Maintenance Procedures
76
Preparing the Machine for Maintenance
76
Raising the Machine
76
Accessing the Hood
77
Lubrication
78
Greasing the Machine
78
Engine Maintenance
80
Engine Safety
80
Servicing the Air Cleaner
80
Servicing the Engine Oil
81
Servicing the Spark Plugs
83
Checking and Adjusting the Alternator Belt
84
Checking the Spark-Plug Wires
85
Checking the Positive Crankcase Ventilation (PCV) Valve
86
Checking the Timing Belt
86
Checking the Intake/Exhaust-Valve Clearance
87
Fuel System Maintenance
88
Checking the Fuel Lines and Connections
88
Electrical System Maintenance
88
Electrical System Safety
88
Servicing the Battery
88
Servicing the Fuses
92
Drive System Maintenance
93
Maintaining the Tires
93
Checking the Steering and Suspension Components
93
Checking/Adjusting the Front Wheel Alignment
94
Adjusting the Front Ride Height
95
Checking the Transaxle-Fluid Level
96
Changing the Transaxle Fluid
96
Checking the Front Differential Oil Level
97
Changing the Front Differential Oil
97
Cooling System Maintenance
98
Cooling System Safety
98
Checking the Engine-Coolant Level
98
Removing Debris from the Cooling System
99
Checking the Coolant Hoses
100
Changing the Engine Coolant
100
Brake Maintenance
101
Checking the Brakes
101
Checking the Brake-Fluid Level
101
Changing the Brake Fluid
101
Belt Maintenance
102
Servicing the Drive Belt
102
Cleaning
103
Washing the Machine
103
Storage
104
Storage Safety
104
Storing the Machine
104
Troubleshooting
105
5
Based on 1 rating
Ask a question
Give review
