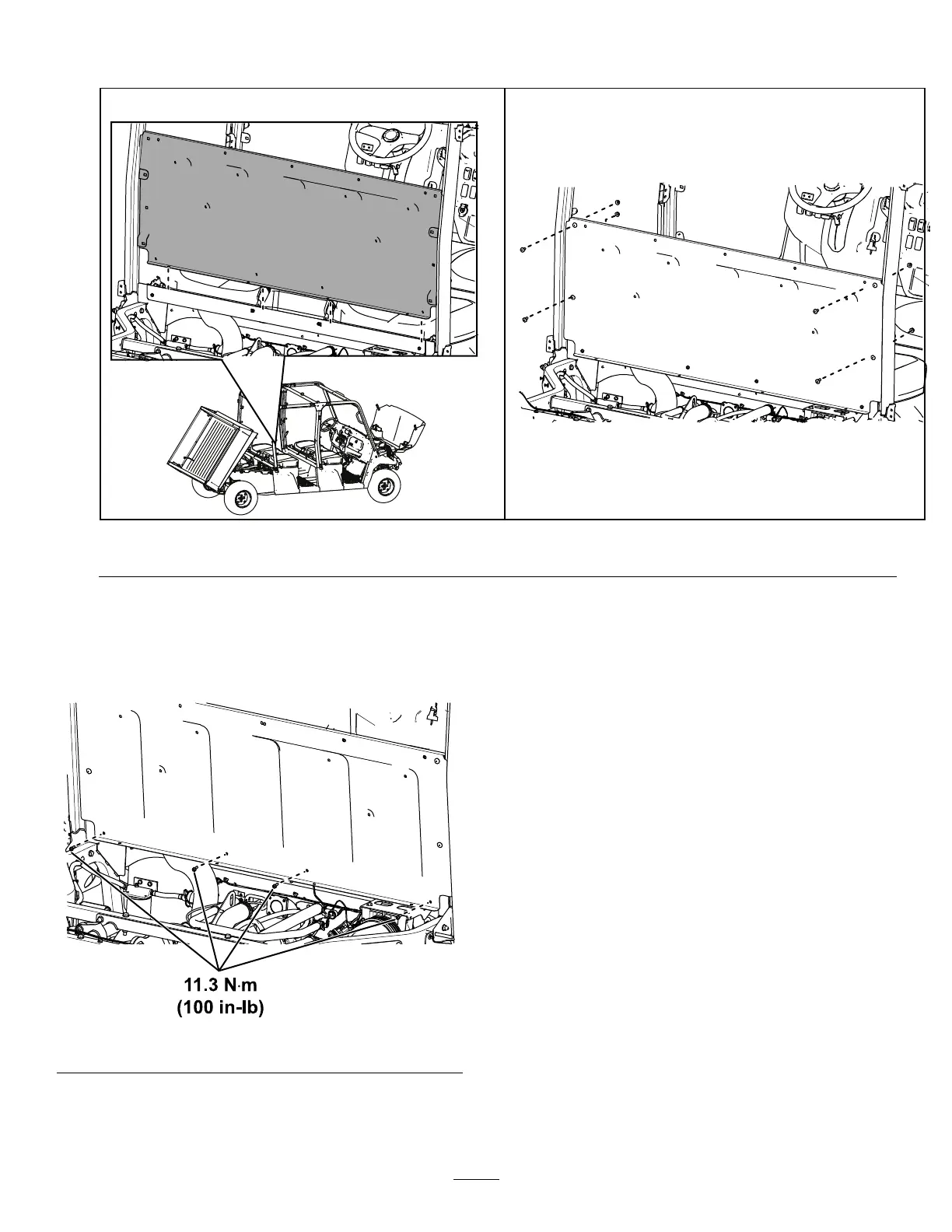

18.
Loosely
secure
a
seat
panel
to
the
rear
roll
bar
assemblies
using
4
carriage
bolts
(5/16
x
3/4
inch)
and
4
locknuts
(5/16
inch)
as
shown
in
Figure
45
.
A
B
g364854
Figure
45
19.
Secure
a
seat
panel
to
the
rear
frame
crosslink
channel
using
4
hex-washer
head
bolts
(1/4
x
3/4
inch)
as
shown
in
Figure
46
.
T
orque
the
4
hex-washer
head
bolts
(1/4
x
3/4
inch)
to
1
1.3
N∙m
(100
in-lb).
g364853
Figure
46
40
39
41
