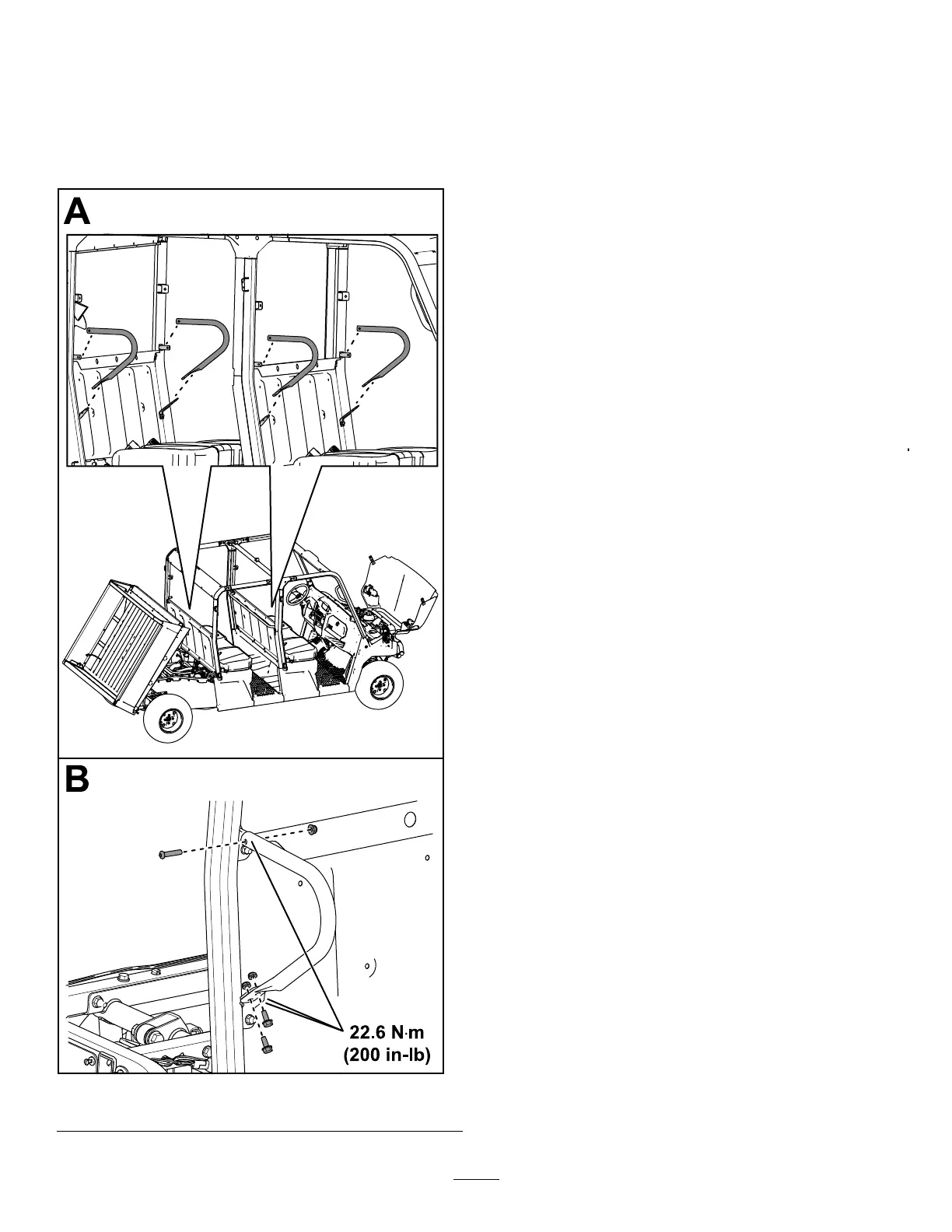

26.Securethe4shoulderrestraintstotherearroll
barassembliesandmiddlerollbarassemblies
using8hex-washerheadbolts(5/16x3/4inch),
4button-headbolts(5/16x1-1/2inches),and4
locknuts(5/16inch)asshowninFigure53.
Torquethelocknuts(5/16inch)to22.6N∙m(200
in-lb)asshowninFigure53.
g364847
Figure53
