ChangingtheEngineOilandFilter

Ifpossible,runtheenginejustbeforechangingthe

oilbecausewarmoilowsbetterandcarriesmore

contaminantsthancoldoil.

1.Parkthemachineonalevelsurface.

2.ShiftthetransmissionlevertotheP(PARK)

position.

3.Shutofftheengineandremovethekey.

4.Raisethecargobed.

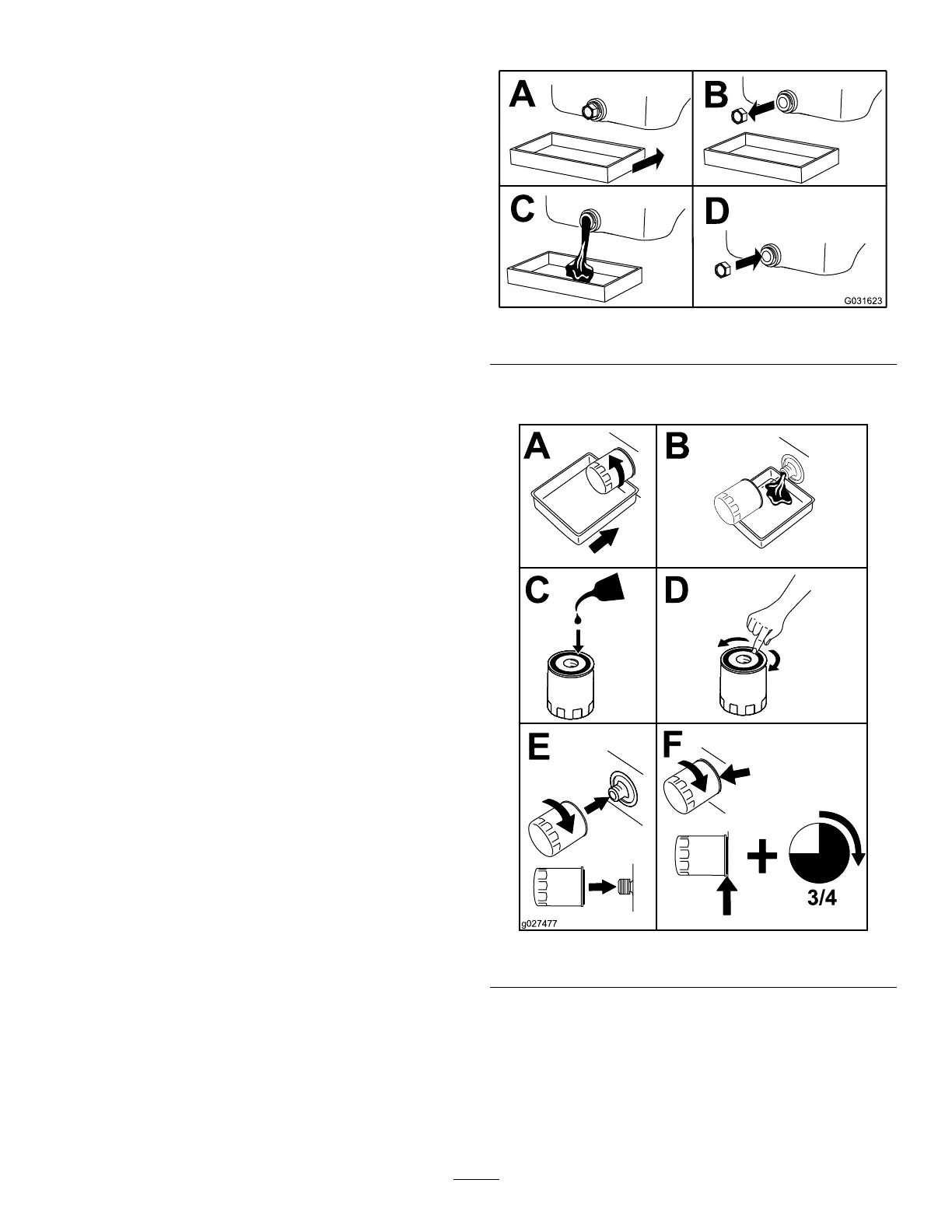

5.ChangetheengineoilasshowninFigure86.

g031623

Figure86

6.Replacetheengine-oillterasshowninFigure

87.

g027477

Figure87

7.Fillthecrankcasewithoil;refertoEngine-Oil

Specications(page81).
