1
2
3
4

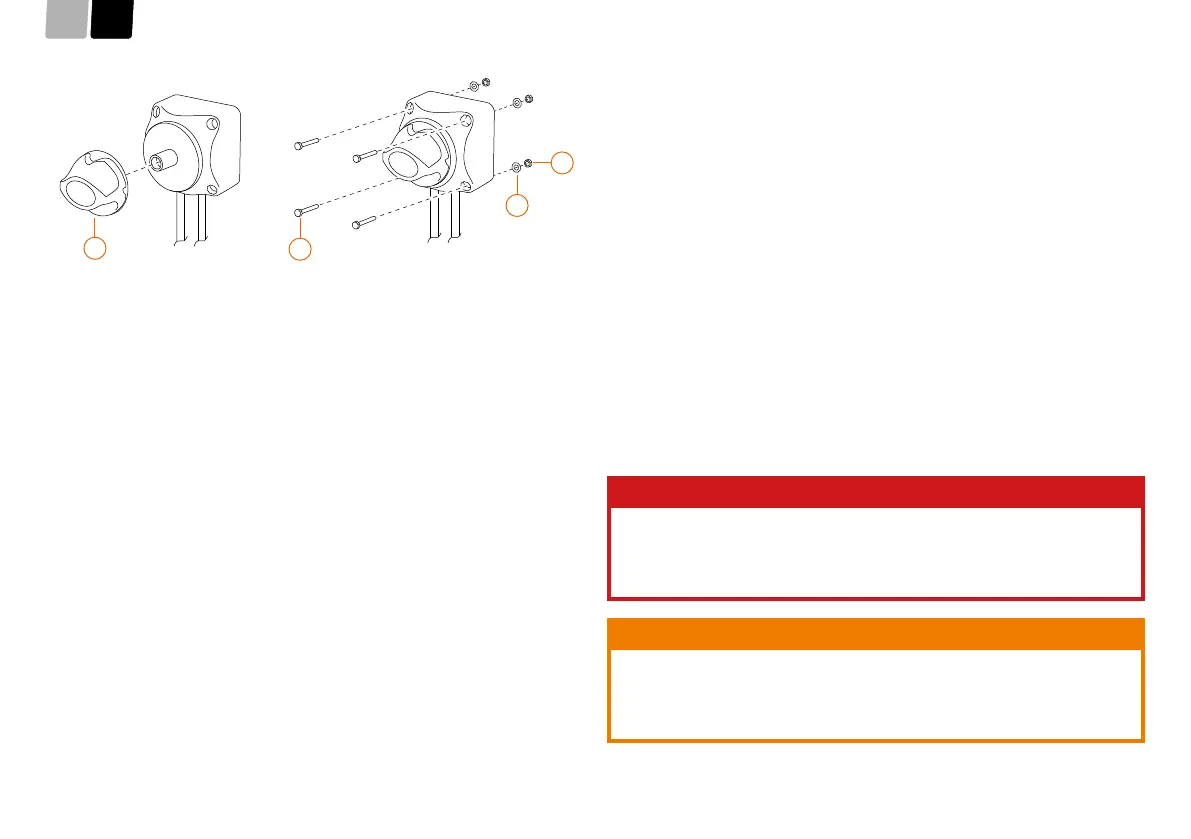

1. Prepare the boat for the installation of the battery main switch.
2. Position the battery main switch on the boat and secure it with M5 screws
(2), washers (3) and nuts (4). Make sure that the cables are pointing down-
wards.
3. IMPORTANT! After installation, set the main switch to the “Off” position and
secure it against unintentional operation by pulling off the switch
handle (1).
6.5 Installing and securing the batteries
During planning and installation, ensure that the batteries are securely fastened
at every stage.
Synchronising battery state of charge
If you use more than one battery in your Torqeedo system, you must charge each
battery to a state of charge of 100 % before installation and especially before
commissioning. This prevents high charge equalisation of the batteries during
wiring.
1. Charge each battery for at least 12 hours to ensure a state of charge of 100
%.
Installing batteries
Prepare the mounting location for the batteries and ensure that the intended
location
• provides a at surface for mounting,
• is protected against splash water,
• is not in a wet environment such as bilges.
1. Place the battery in the designated location in the boat and use the desig-
nated points for attachment.
NOTE! For more information on the battery and mounting, see the battery oper-
ating manual.
6.6 Installing and xing other components
TIP! Use the appropriate drilling template for installation. You can nd the drilling
template in the Service Center at www.torqeedo.com.
1. Prepare your boat for the installation of the component.
2. Position the component on the boat and fasten it with appropriate attach-
ment material.
NOTE! For further information on the component and mounting, please refer to
the relevant operating manual.
6.7 Wiring
DANGER
Danger of injury or death from electric shock. This can result in sever injuries
or death.
• Make sure that the overall system is de-energised during installation.
Batteries and external power sources must be disconnected from the
onboard power supply.
WARNING
Risk of injury from electrical voltage. This can result in moderate or severe
bodily injuries.
• Power cables, data cables, plug connections and screw connections
must not be laid in wet areas (e.g. bilges).
• Follow the connection sequence according to the work instructions.
Before wiring, make sure you have the correct wiring diagram. You can nd the
To Next Page
