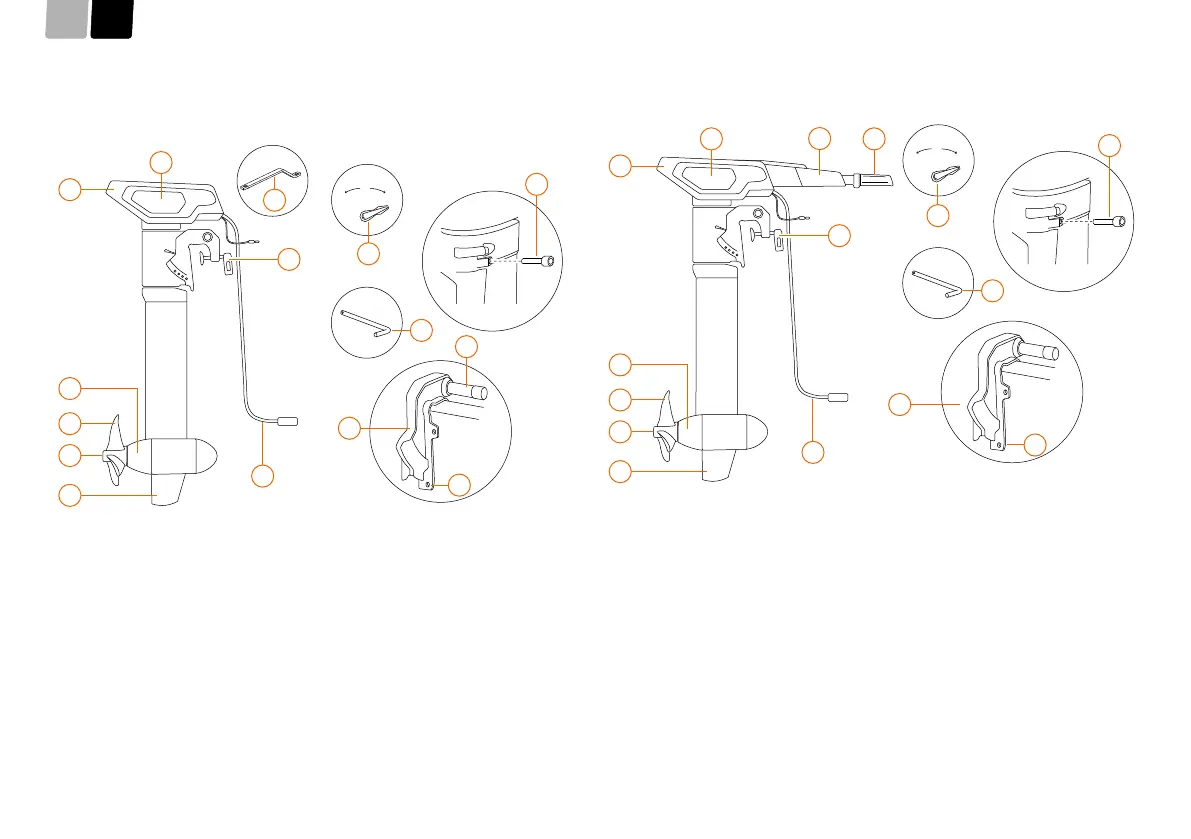

4.2 Controls and components
Cruise remote models
Lock
Tilt/
Auto kick-up
1
2
5
4
6
7
8
9
10
11
12
13
14
15
16
1 Motor head 9 Transom bracket
2 GPS receiver in the motor head 10 Transom clamp bolt
3 Shaft 11 Trim rod
4 Pylon 12 Mounting hole
5 Propeller 13 Steering tube for remote steering
6 Galvanic anode 14 Steering link arm remote steering
connection
7 Fin 15 Tilt lever
8 Power cable with plug connection 16 Motor locking screw
Cruise tiller models
Lock
Tilt/
Auto kick-up
1
2
5
4
6
7
8
9
10
11
12
13
14
15
16
1 Motor head 9 Transom bracket
2 GPS receiver in the motor head 10 Transom clamp bolt
3 Shaft 11 Trim rod
4 Pylon 12 Mounting hole
5 Propeller 13 Tiller
6 Galvanic anode 14 Accelerator lever
7 Fin 15 Tilt lever
8 Power cable with plug connection 16 Motor locking screw
