NOTE! Correct Torqeedo propeller direction of rotation: clockwise, (direction of
rotation viewed from behind propeller: clockwise).
If the propeller turns in the wrong direction, carry out the following points:
1. Set forwards/reverse motion, see chapter Set forwards/reverse motion.
If the system does not start as prescribed, check the following points and then
start the system test again:
• Is the battery main switch switched on?
• If necessary, is the emergency kill switch or kill switch in the position for
normal operation?
• Are the batteries sufciently charged?
• Are all data cables connected correctly?
• Are all power cables connected correctly?
• Have the fuses tripped (in the case of external batteries)?
If the system starts but the propeller does not turn despite being given propul-
sion, check the following points and then start the system test again:
• Is the emergency stop magnetic chip on or the kill switch in the position for
normal operation?
• Are all data cables connected correctly?
• Are all power cables connected correctly?
If you are unable to successfully complete the system test despite checking all
points, contact your dealer support or Torqeedo Service.
6.11 Motor trim adjustment
CAUTION
Danger of crushing due to uncontrolled tilting of the transom bracket. This
can result in minor or moderate bodily injuries.
• Do not grasp the tipping area of the motor during tipping.
TIP! The optimum trimming position depends on the boat's loading condition.
Make the most of the Torqeedo system's performance and efciency by adjusting
the trimming setting to the load.
Test ride
1. Carry out a test ride and observe the behaviour of your boat.
The bow of the boat rises too high out of the water during travel
• Steering becomes unsteady
• Poor course retention
» Move the trim rod downwards.
The bow of the boat sinks too far down during travel
• The maximum speed decreases.
» Move the trim rod upwards.
Optimum trim is achieved when
• the motor shaft is perpendicular to the water surface while driving
• and the waterline of the boat is parallel to the water surface.

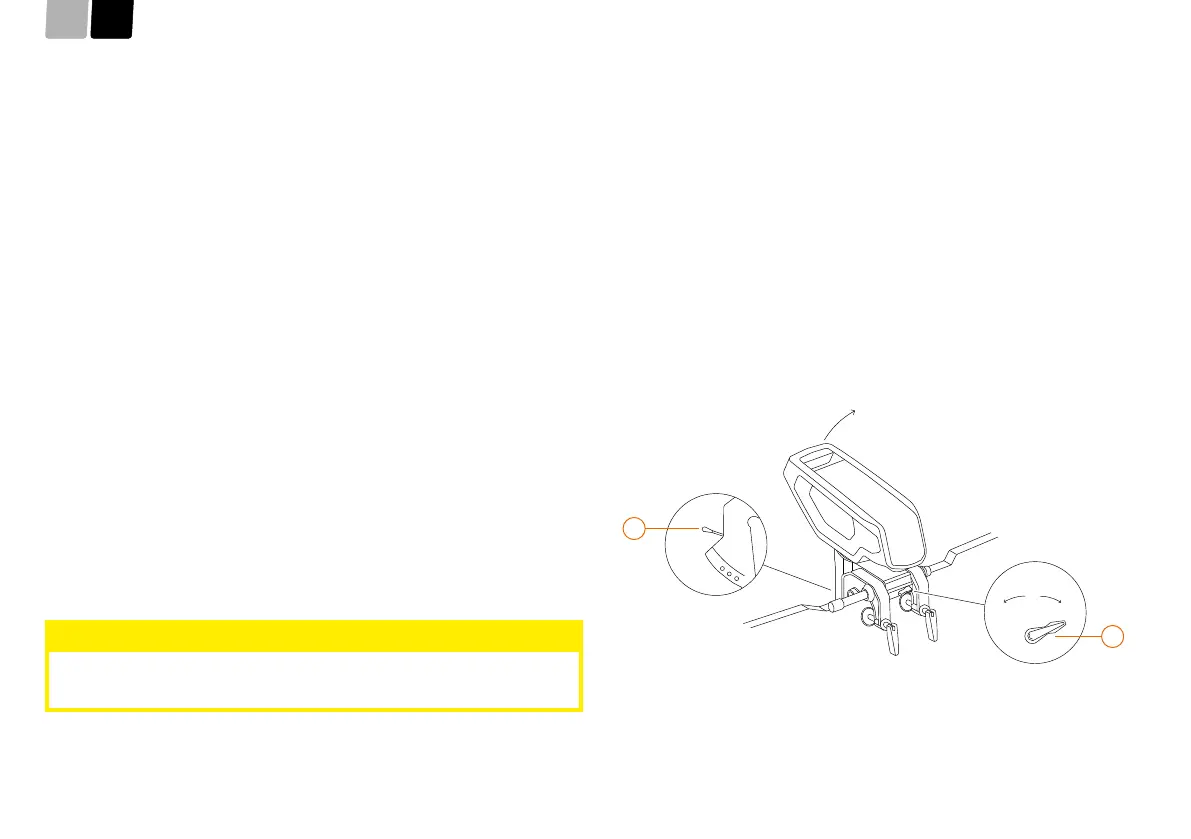

Changing the trim setting
Lock
Tilt/
Auto kick-up
1
2
1. Finish the ride.
2. Set the battery main switch to the “OFF” position to ensure that the
propeller cannot turn.
3. Set the tilt lever (1) to the “Tilt / Auto kick up” position.
4. Tilt the motor upwards by pulling the tilt lever (2) and then tilt the motor to
To Next Page
