3.10 Adjustment of the ADF (MR-2017)
3.10.1 Adjustment of ADF Position
Perform this adjustment when the ADF is not installed in the correct position.
Note: Note:
Check if the image adjustment for the equipment is performed properly before this adjustment of
the ADF.
[A] Checking

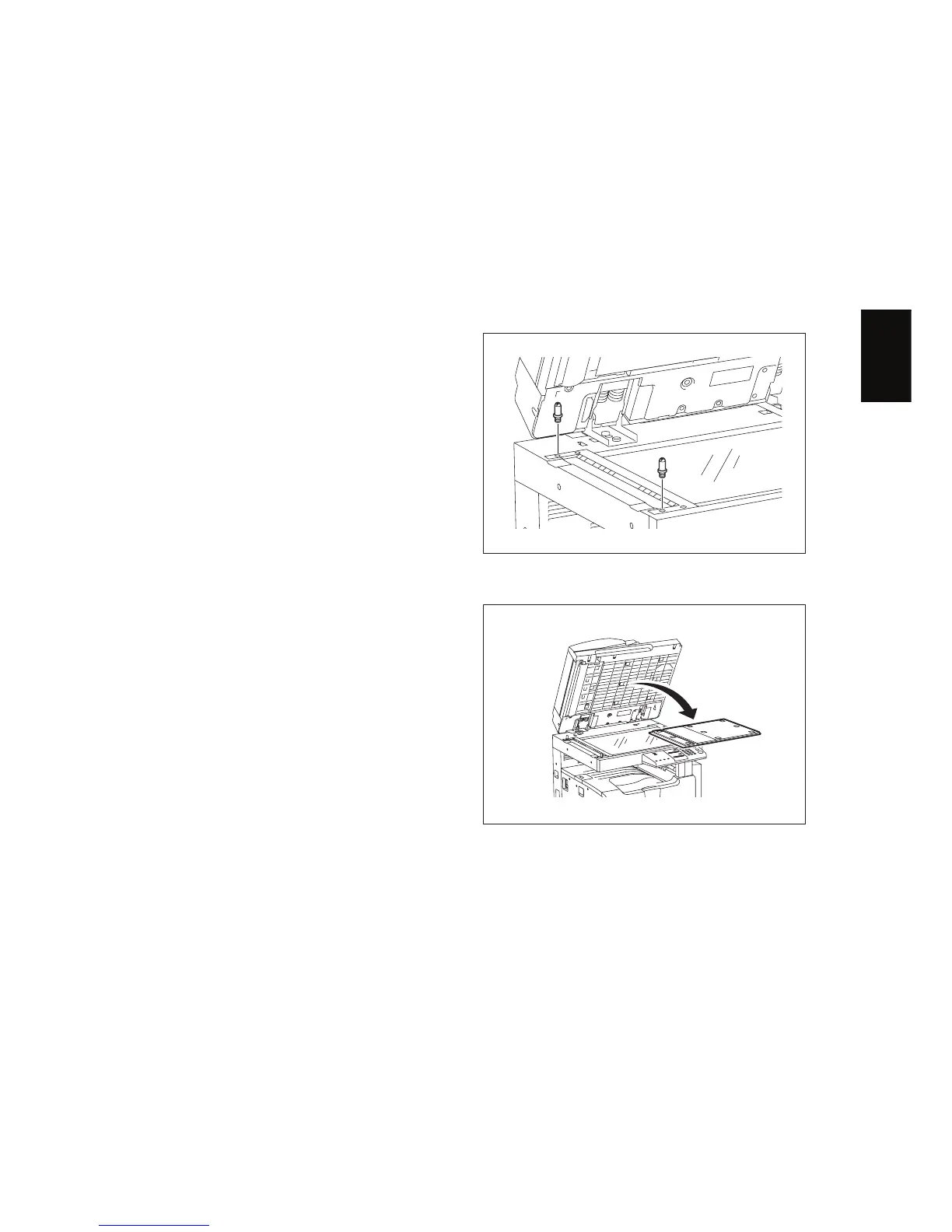

(1) Open the ADF and install 2 positioning pins
(the positioning pins are installed to the back
side of the hinge which is on the left side of
the ADF).
Fig. 3-37
(2) Remove the platen sheet.
Fig. 3-38
