e-STUDIO163/203 ADJUSTMENT December 2005 © TOSHIBA TEC
3 - 54
3.10.4 Adjustment of the Leading Edge Position
Note: Note:
Check if the image adjustment for the equipment is performed properly before this adjustment of
the ADF. Also, the ADF position and height shall be adjusted properly.
[A] Checking
Check the image using the chart (original) with vertical and horizontal lines in the following procedure.
(1) Place the chart provided as an original with its face up on the original tray of the ADF, select [1
Sided -> 1 Sided] and press the [START] button.
(2) Superimpose the chart on the copy and check the leading edge E of the chart and F of the copy.
[B] Adjustment
(1) Turn the power ON while pressing [0] and [5] simultaneously, key in [365] and then press the
[START] button.
(2) Enter the value.
• If the leading edge (F) margin of the copy image is larger than the (E) margin of the chart,
enter a value smaller than the current one.
Note: Note:
Changing one value shifts the copy image by 0.2 mm.
• If the leading edge (F) margin of the copy image is smaller than the (E) margin of the chart,
enter a value larger than the current one.
Note: Note:
Changing one value shifts the copy image by 0.2 mm.
(3) Press the [INTERRUPT] button.

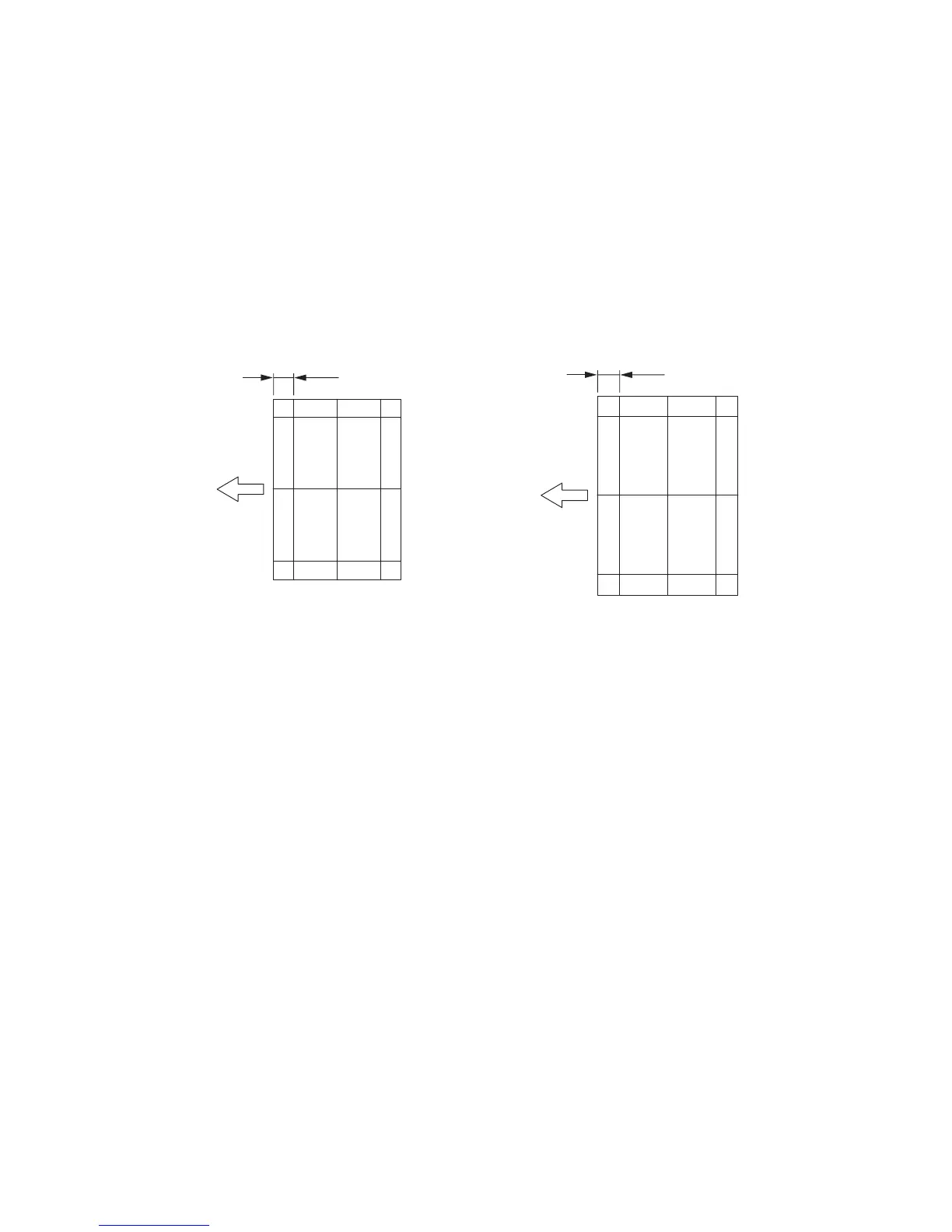

Fig. 3-57 Chart (Original)
Fig. 3-58 Copy
E
F
To Next Page
