December 2005 © TOSHIBA TEC e-STUDIO163/203 ADJUSTMENT
3 - 17
3
[F] Right margin
<Procedure>
(1) While pressing [0] and [5] simultaneously, turn the power ON. # (Adjustment Mode)
(2) Press [4] # [INTERRUPT] # [PAPER FEED] (Select from 0: bypass, 1: drawer or 2: PFU.) #
[START] (A solid black pattern (whole area) is printed out. Print out 2 sheets in A3/LD size.).
(3) Place the paper printed out in step (2) to cover the whole area of the original glass.
(4) Press [0] and [9] simultaneously to enter the normal mode.
(5) Make a copy at the mode of A3/LD, 100%, Text/Photo and standard drawer of the equipment.
(6) Press [0] and [5] simultaneously to enter the adjustment mode.
(7) Measure the blank area F at the right side of the copied image.
(8) Check if the blank area F is within the range of 2±1.0 mm.
(9) If not, use the following procedure to change values and repeat the steps (4) to (8) above.
(Adjustment Mode) # (Key in the code [432]) # [START]
# (Key in a value (acceptable values: 0 to 255))
# Press the [INTERRUPT] button (stored in memory).# (“AJ” is displayed.)
* The larger the adjustment value is, the wider the blank area at the right side becomes
(approx. 0.04 mm/step).

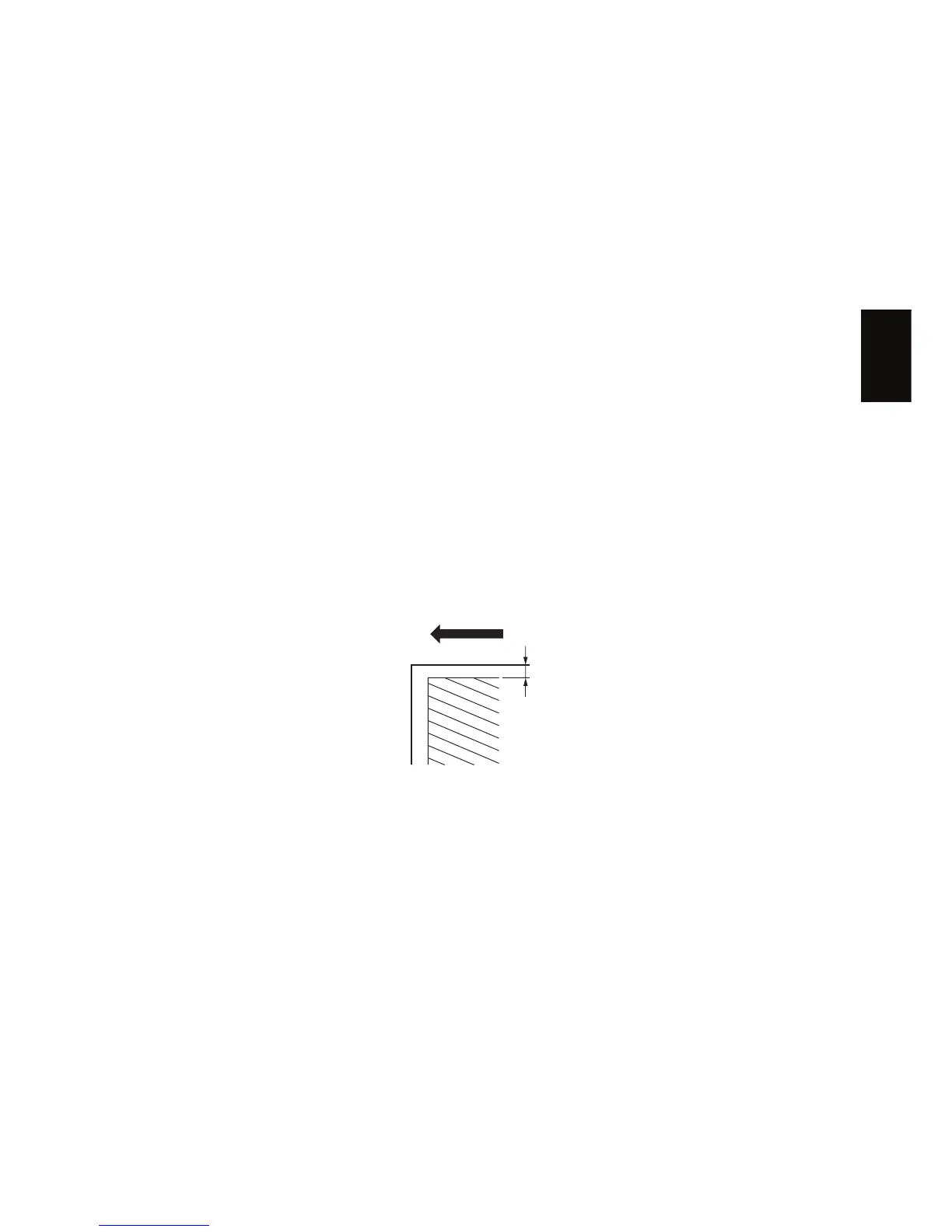

Fig. 3-13
F
Feeding direction
06/04
