PREVENTIVE MAINTENANCE (PM)
5 - 31
5.7.10 LCF (KD-1026)

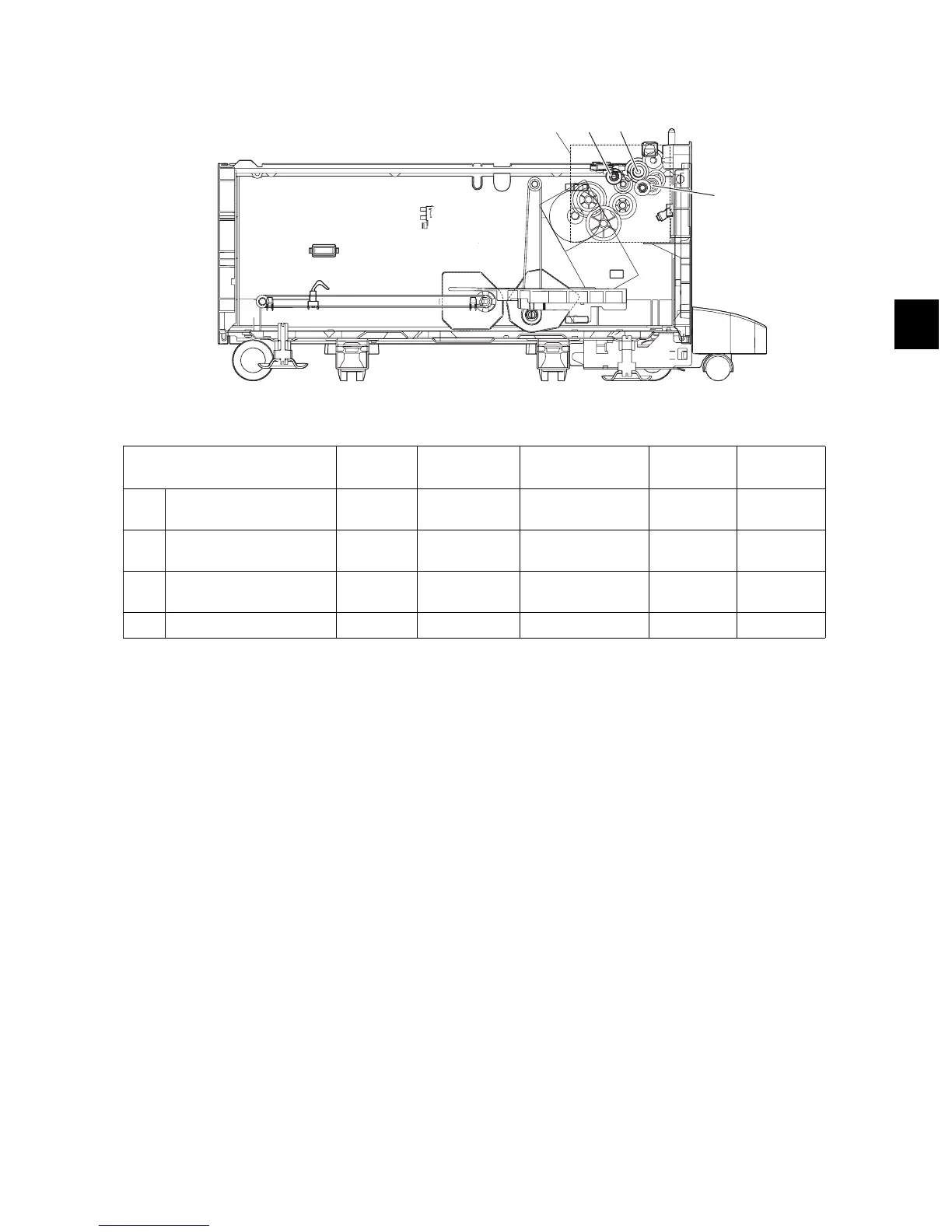

Fig. 5-21
Items to check Cleaning Lubrication
Replacement
(x 1,000 sheets)
Operation
check
Parts list
<P-I>
a Pickup roller A 160/160/160/160/
160
b Feed roller A 160/160/160/160/
160
c Separation roller A 160/160/160/160/
160
d Drive gear W1
ab
c
d
