DISASSEMBLY AND REPLACEMENT
4 - 52

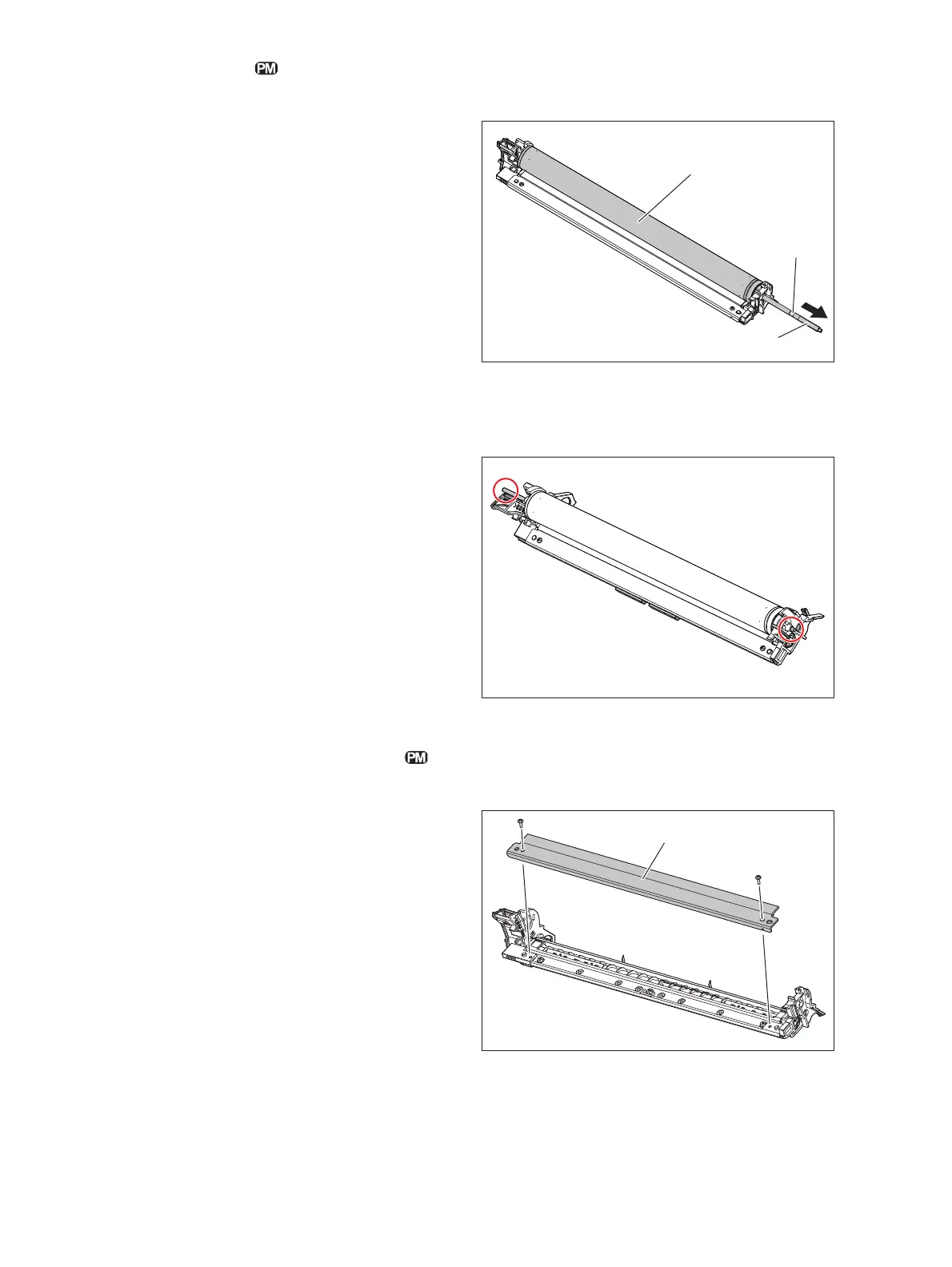

4.7.4 Drum
4.7.5 Drum cleaning blade
(1) Take off the drum cleaner unit.
 P. 4-51 "4.7.3 Drum cleaner unit"
(2) Pull out the drum shaft [1] and then take off
the drum [2].
Notes:
1. Be careful not to touch or scratch the
drum surface.
2. Avoid direct light. Place the drum in a
dark place immediately after taking off.
3. Be careful not to touch or scratch the
edge of the cleaning blade.
4. When reinstalling the drum, eject the
toner inside the drum cleaner unit first.
5. Be sure to apply patting powder
(lubricant) to the entire surface of the
drum when it is replaced or it is installed/
removed from the cleaner.
Fig. 4-133
Notes:
When installing a new drum, apply
conductive grease (Floil GE-334C) to the
groove [3] of the drum shaft. After installing
the drum and drum shaft, wipe off any
grease on the parts of the drum shaft
protruding outside (front and rear edges).
Fig. 4-134
(1) Take off the drum.
 P. 4-52 "4.7.4 Drum"
(2) Remove 2 screws and then take off the drum
cleaning blade [1].
Notes:
• Be careful not to touch or scratch the
edge of the drum cleaning blade.
• Be sure to apply patting powder
(lubricant) to the entire surface of the
drum when the drum cleaning blade is
replaced or it is cleaned.
Fig. 4-135
[1]
[2]
[3]
[1]

Toshiba e-STUDIO2303A Specifications

General

Functions	Print, Copy, Scan
Print Speed (Black/A4)	23 ppm
Print Resolution	2400 x 600 dpi
First Print Out Time	Approx. 6.4 seconds
Paper Capacity	250 sheets
Duplex	Manual
Interface	USB 2.0
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Copy Speed	23 cpm
Dimensions (W x D x H)	575 x 540 x 402 mm
Network Connectivity	Optional
Paper Size	A4, A5, B5
Paper Weight	64-80 g/m²
Operating System Compatibility	Windows, Mac
Multiple Copy	1 to 999 copies
