Toshiba e-STUDIO2303A User Manual

7
© 2013-2017 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2006/2306/2506/2007/2307/2507/2303A/2303AM/2803AM/2309A/2809A
PREVENTIVE MAINTENANCE (PM)
7 - 19

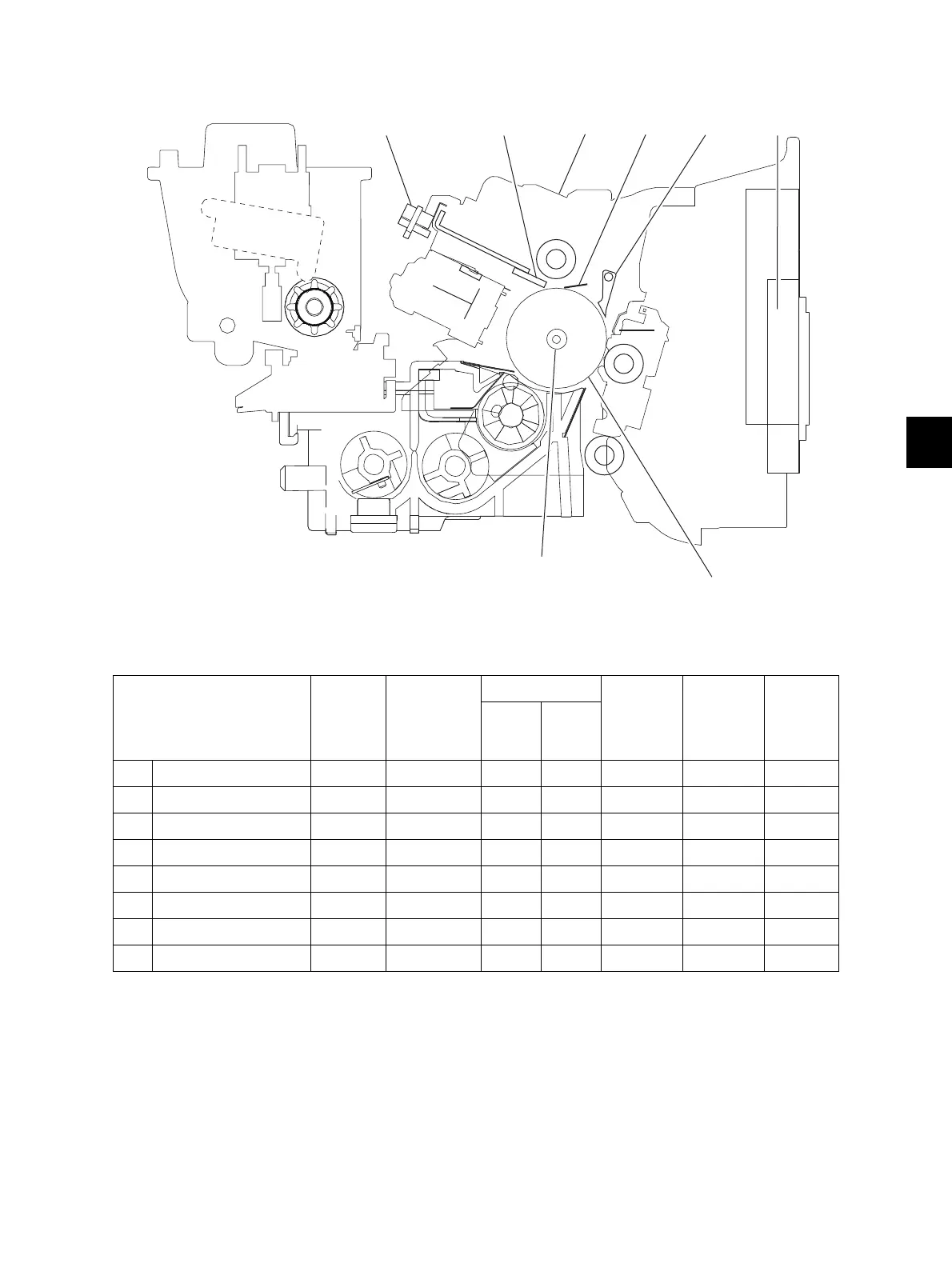

7.4.6 Drum/Cleaner related section
Fig. 7-17
<20L/23L/25L, 20H/23H/25H>
Items to check Cleaning Lubrication
Replacement
Operation
check
Parts list
<P-I>
Remarks
x1,000
sheets
x1,000
drive
count
H1 Photoconductive drum 55 115 15-20 Ch.7.8.2
H2 Discharge LED B 13-2
H3 Whole cleaner unit B 15-1
H4 Drum cleaning blade 55 115 15-5 *h1
H5 Drum separation finger 165 345 15-17 *h2
H6 Recovery blade B 165 345 15-6 *h3
H7 Ozone filter 165 345 9-3
H8 Drum Shaft FL 15-21
H6
H2
H4
H3
H5
H1
H7
H8

Toshiba e-STUDIO2303A Specifications

General

Functions	Print, Copy, Scan
Print Speed (Black/A4)	23 ppm
Print Resolution	2400 x 600 dpi
First Print Out Time	Approx. 6.4 seconds
Paper Capacity	250 sheets
Duplex	Manual
Interface	USB 2.0
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Copy Speed	23 cpm
Dimensions (W x D x H)	575 x 540 x 402 mm
Network Connectivity	Optional
Paper Size	A4, A5, B5
Paper Weight	64-80 g/m²
Operating System Compatibility	Windows, Mac
Multiple Copy	1 to 999 copies
