Toshiba e-STUDIO2303A User Manual

e-STUDIO2006/2306/2506/2007/2307/2507/2303A/2303AM/2803AM/2309A/2809A © 2013-2017 TOSHIBA TEC CORPORATION All rights reserved
PREVENTIVE MAINTENANCE (PM)
7 - 18

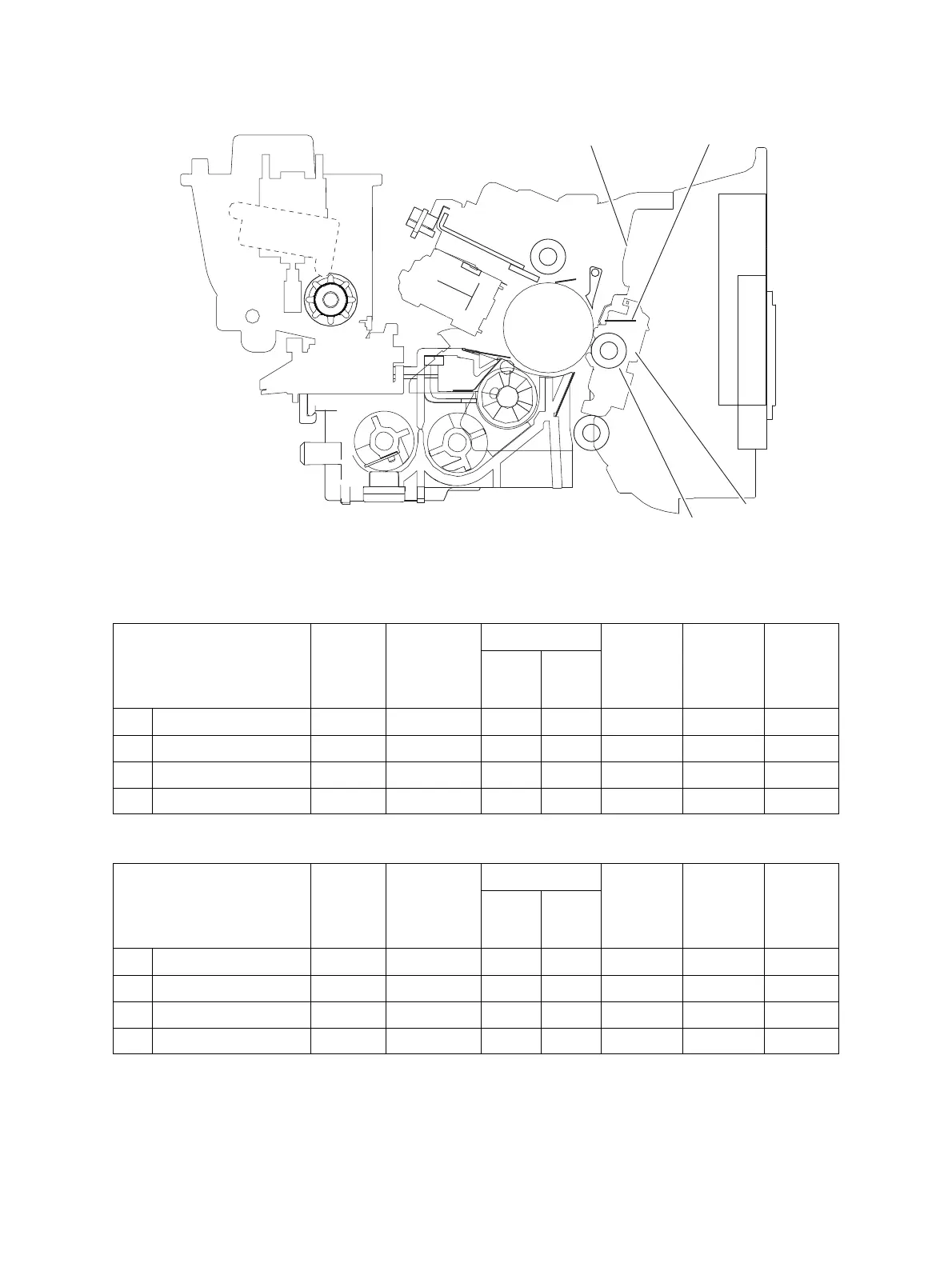

7.4.5 Transfer / Separation charger
Fig. 7-16
<20L/23L/25L, 20H/23H/25H>
<23LA/23LM/28LM/23HA/28HA>
* g1. Transfer roller
If there is damage on the roller, replace it even if the replacement time has not come.
Remarks:
Values under “Replacement” indicate the replacement cycle for the 23LA/23LM/28LM, 23HA /
28HA.
Items to check Cleaning Lubrication
Replacement
Operation
check
Parts list
<P-I>
Remarks
x1,000
sheets
x1,000
drive
count
G1 Transfer roller case B 9-6
G2 Transfer roller 55 115 O 9-11 *g1
G3 Separation needle B 9-7
G4 Post-transfer guide B or A 9-4
Items to check Cleaning Lubrication
Replacement
Operation
check
Parts list
<P-I>
Remarks
x1,000
sheets
x1,000
drive
count
G1 Transfer roller case B 9-6
G2 Transfer roller 59/64 115 O 9-11 *g1
G3 Separation needle B 9-7
G4 Post-transfer guide B or A 9-4
G2
G1
G4
G3

Toshiba e-STUDIO2303A Specifications

General

Functions	Print, Copy, Scan
Print Speed (Black/A4)	23 ppm
Print Resolution	2400 x 600 dpi
First Print Out Time	Approx. 6.4 seconds
Paper Capacity	250 sheets
Duplex	Manual
Interface	USB 2.0
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Copy Speed	23 cpm
Dimensions (W x D x H)	575 x 540 x 402 mm
Network Connectivity	Optional
Paper Size	A4, A5, B5
Paper Weight	64-80 g/m²
Operating System Compatibility	Windows, Mac
Multiple Copy	1 to 999 copies
