Toshiba Qosmio X500

Replacement Procedures
4.4 SSD/HDD (Main HDD)
Removing a SSD/MAIN HDD-H9.5mm / HDD-H12.5mm
The following describes the procedure for removing the SSD/main HDD (See Figure 4-4-1 to
4-4-3).
CAUTION: Take care not to press on the top or bottom of a SSD/HDD. Pressure may
cause data loss or damage to the device.
1. Turn the computer upside down.
2. Remove the following screws securing a SSD/HDD slot cover and remove a
SSD/HDD slot cover.
 M2.54.0B FLAT BIND screw x2
3. Remove the following screws securing the SSD/HDD assembly.
 M2.53.0B FLAT BIND screw x2
4. Disconnect the SSD/HDD assembly from the connector on the system board.

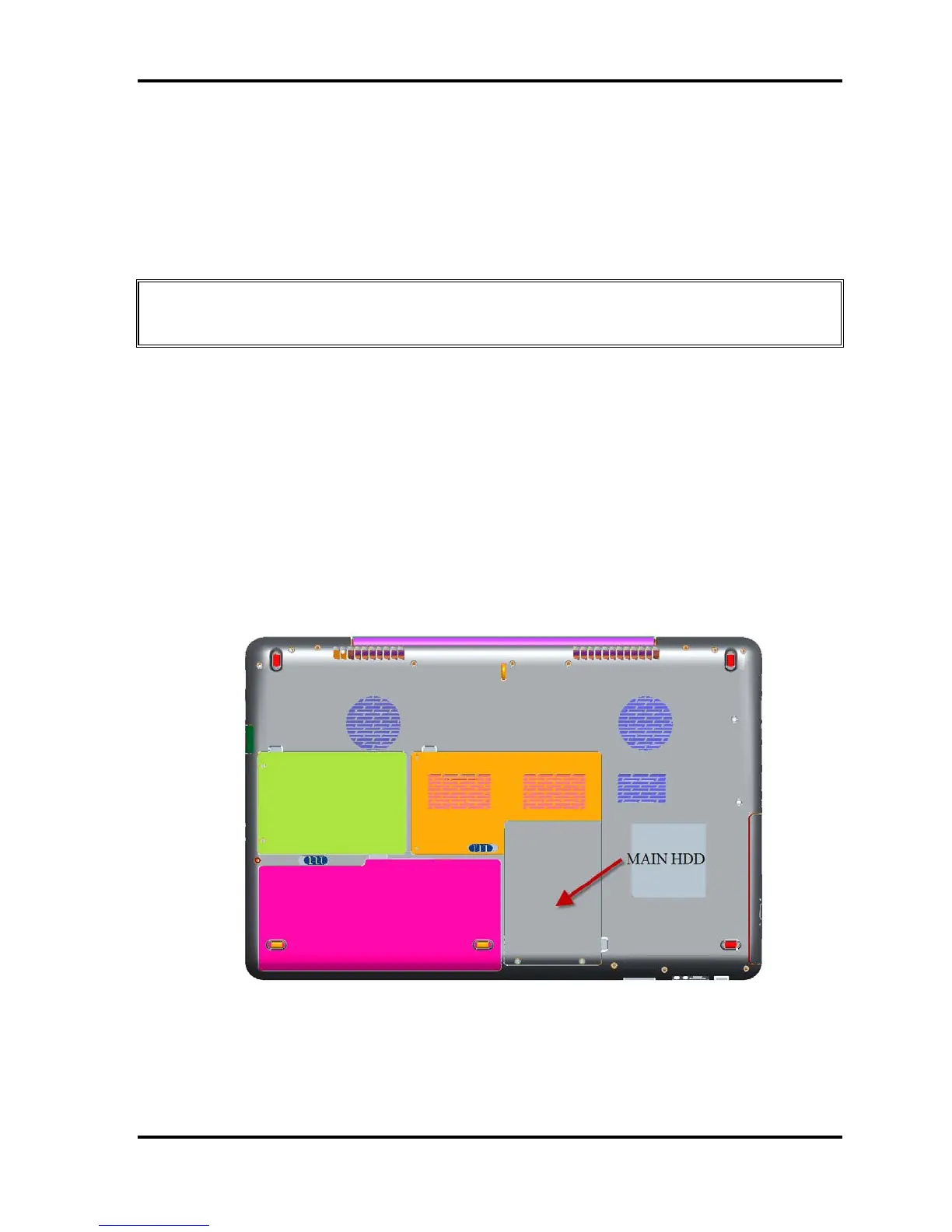

Figure 4-4-1
Turn the computer upside down
Qosmio X500 Maintenance Manual (960-Q08) 4-12
