Toshiba Qosmio X500

Replacement Procedures
4.10 Wireless LAN card
Removing a Wireless LAN card
The following describes the procedure for removing a Wireless LAN card (See Figure 4-10-1
to 4-10-2).
1. Remove the following screw of wireless cover securing wireless LAN card cover
and remove it. And remove screw of wireless board
 M2.5. x 3.0B BIND screw x2
2. Disconnect the wireless LAN antenna cable from the connectors on a wireless LAN
card
3. Open the left and right latches holding a wireless LAN card and remove a wireless
LAN card from the connector on the system board.

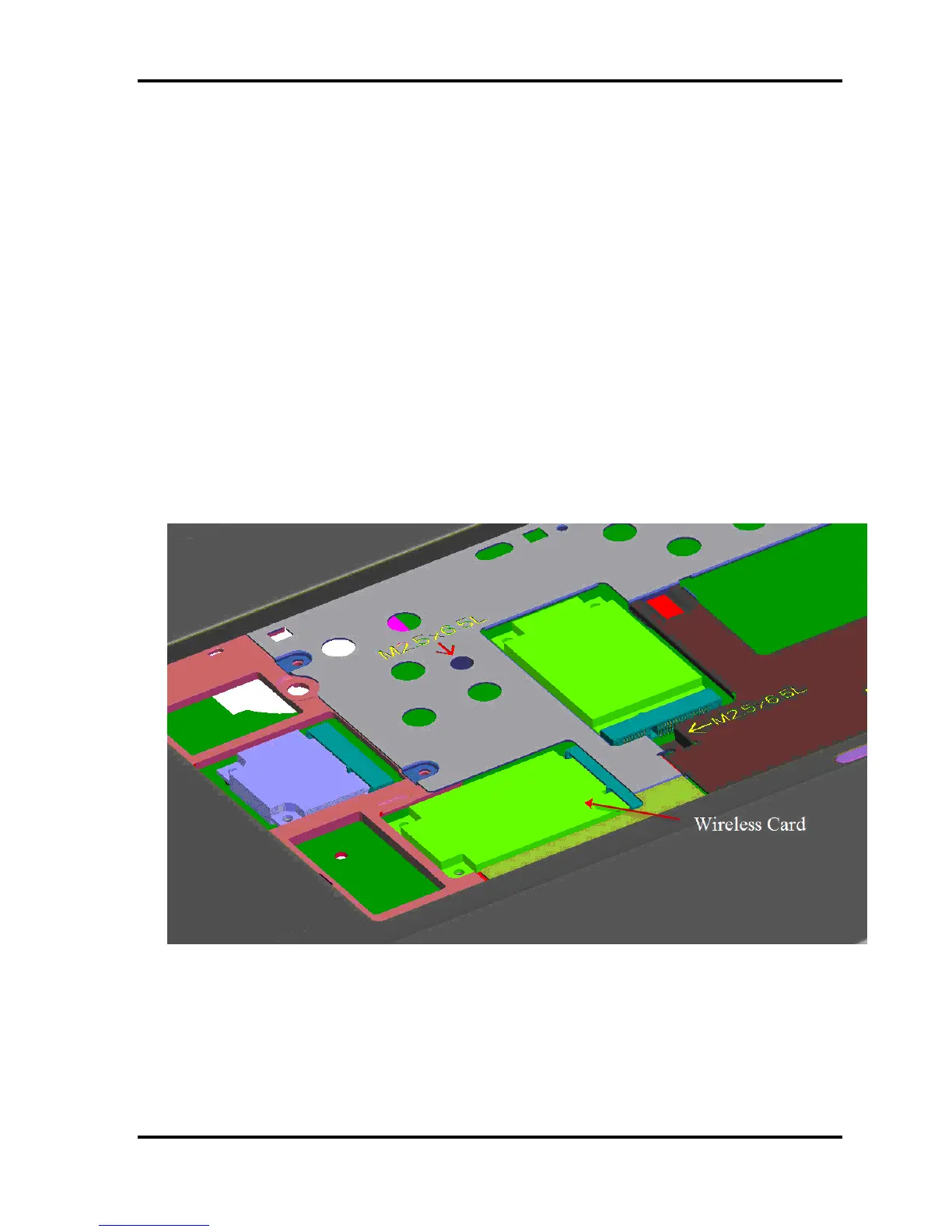

Figure 4-10-1 Wireless LAN card
Qosmio X500 Maintenance Manual (960-Q08) 4-31
