Replacement Procedures
4.12 TV Tuner card
Removing a TV Tuner card
The following describes the procedure for removing a TV Tuner card (See Figure 4-12-1).
1. Remove the following screw of TOP cover securing and remove it. And remove
screw of TV tuner card
2.5.0 x 3.0B BIND screw x2
2. Disconnect the TV antenna cable from the connectors on a TV tuner card
3. Open the left and right latches holding a TV tuner card and remove a TV tuner card
from the connector on the system board.

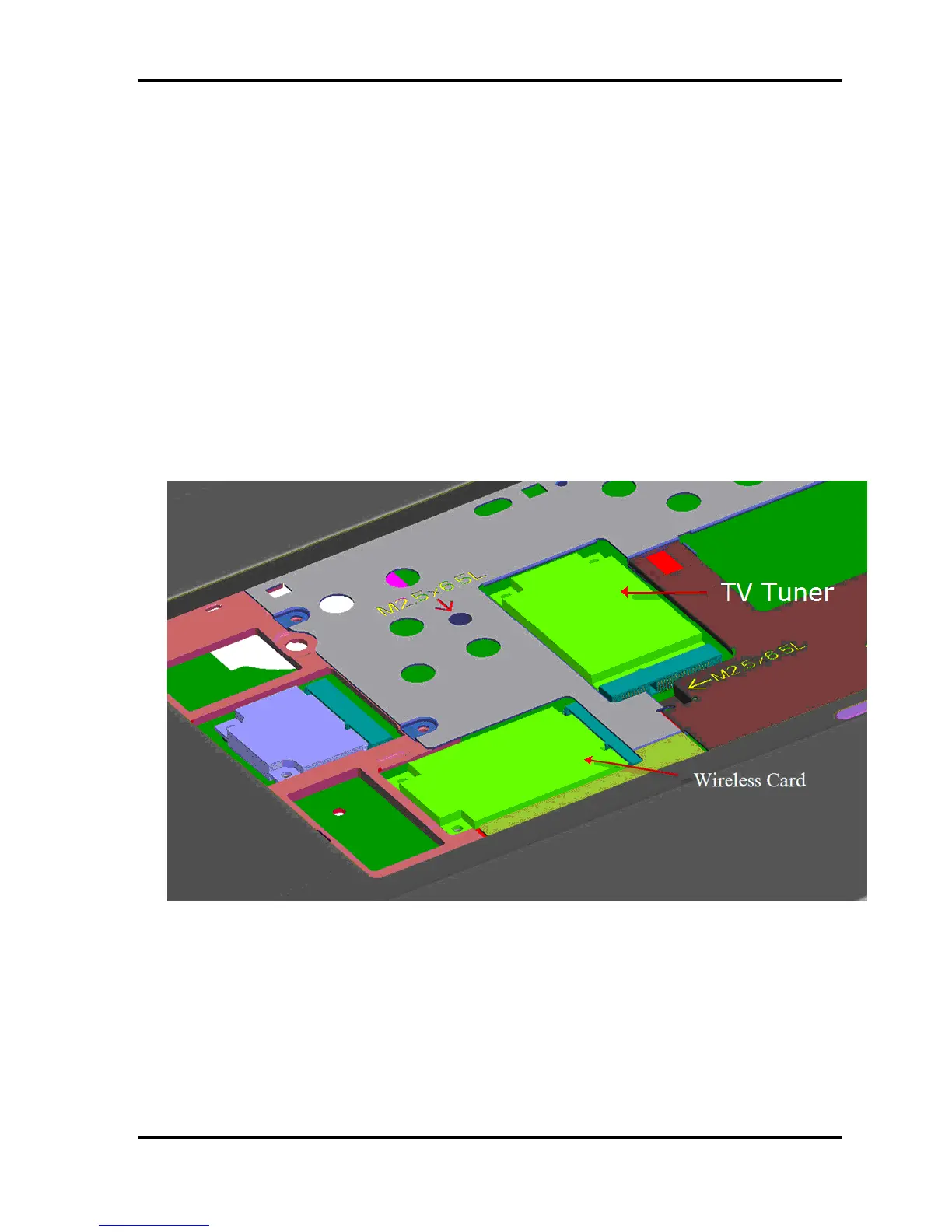

Figure 4-12-1 TV Tuner card
Qosmio X500 Maintenance Manual (960-Q08) 4-35
