Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures
4.20 LCD unit / FL inverter
CAUTION: When replacing a LCD, it is required that SVP parameter is set. Update with
the latest EC/KBC as described in Appendix H “EC/KBC Rewrite
Procedures”.
Removing the LCD unit / FL inverter
The following describes the procedure for removing the LCD unit and FL inverter (See
Figure 4-20-1 to 4-20-4).
Remove Screw MYLAR cover X8
1. Remove the following screws securing the display mask
M2.56.5 screw X8
2. Insert your finger between the edge of the display mask and the LCD, and remove the
display mask while releasing the latches of display mask.

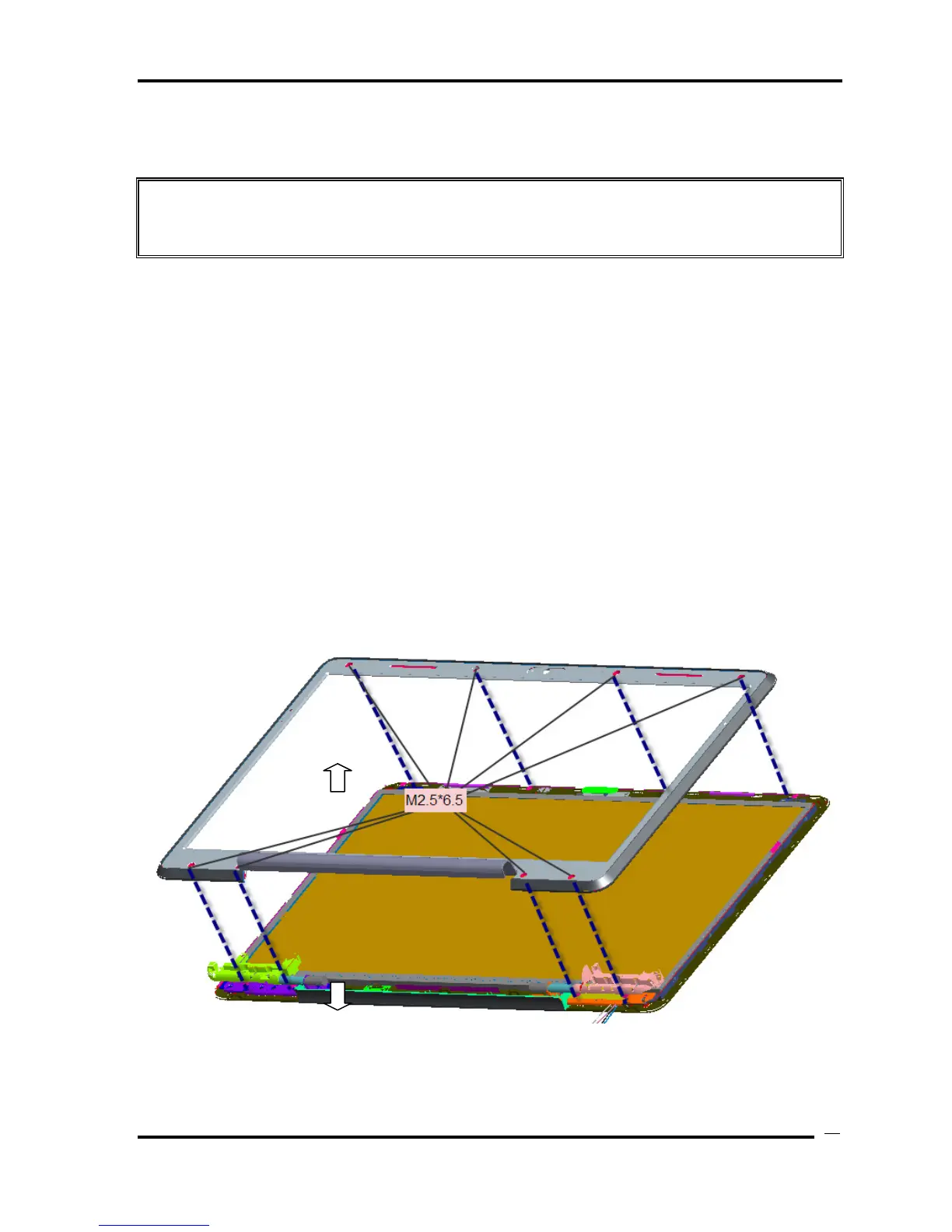

Figure 4-20-1 Remove the display mask
Qosmio X500 Maintenance Manual (960-Q08)
5
7

Toshiba Qosmio X500 Specifications

General

Graphics	NVIDIA GeForce GTS 360M
Display Size	18.4 inches
Resolution	1920 x 1080 pixels
Storage	500GB HDD
Operating System	Windows 7 Home Premium
LAN	Gigabit Ethernet
USB Ports	4 x USB 2.0
HDMI	Yes
Processor	Intel Core i7
Optical Drive	Blu-ray Disc drive
Wireless	Wi-Fi 802.11n
Battery	Lithium-ion battery (various capacities)
Weight	10.1 lbs
RAM	Up to 8GB DDR3
