Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures
4.11 Bluetooth module
Remove a Bluetooth module
The following describes the procedure for removing a Bluetooth module(see Figure4-11-1)
1. Disconnect the Bluetooth cable from motherboard side
2. Remove the following screw from TOP case and remove the Bluetooth bracket
 2.5.0 x 3.0B BIND screw x1
3. Remove the Bluetooth module

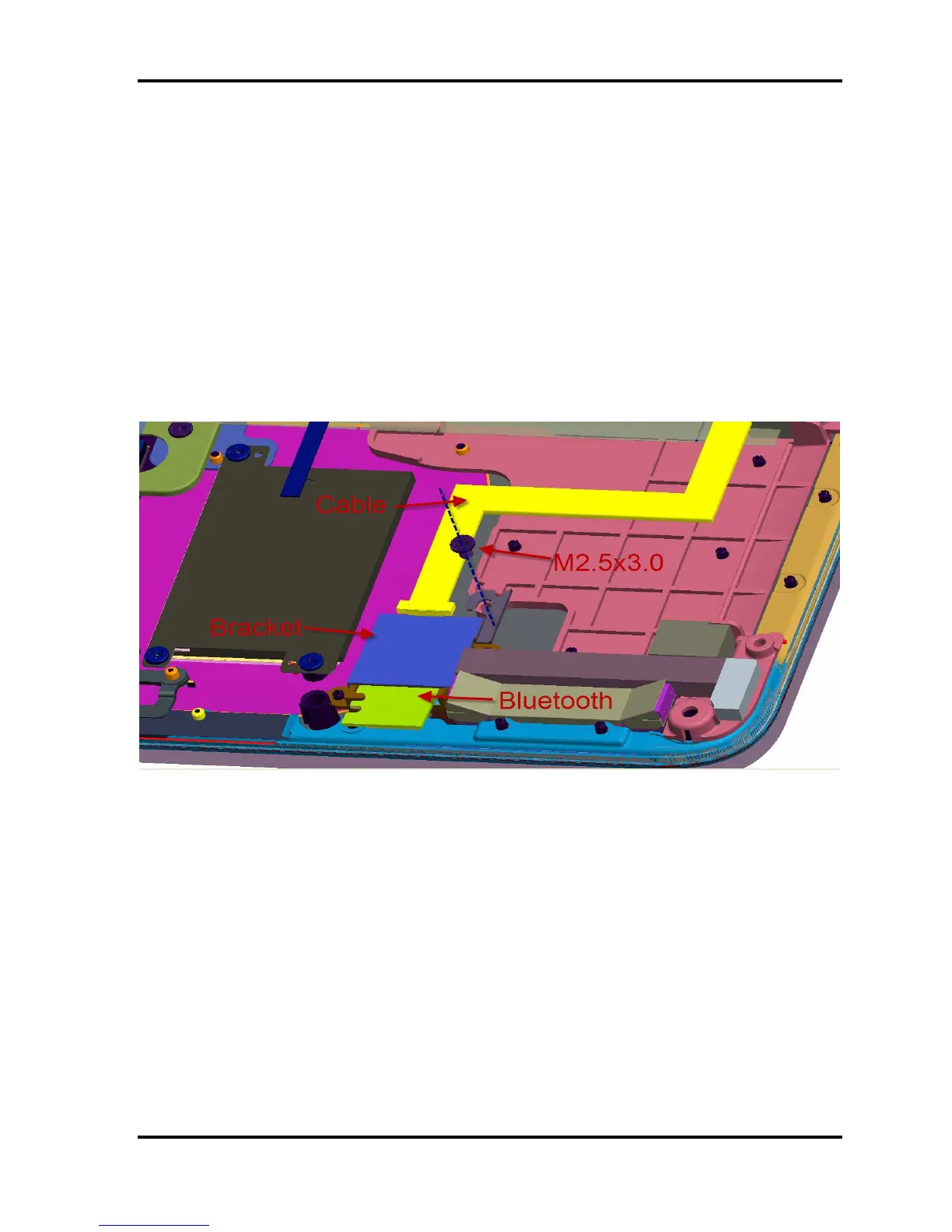

Figure 4-11-1 Remove a Bluetooth module
Installing a Bluetooth module
The following describes the procedure for installing a Bluetooth module.
1. Insert a Bluetooth into the connector on the computer.
2. Connect the Bluetooth cable to the terminals on a Bluetooth and connect it to the
motherboard side.
3. Install the Bluetooth bracket and secure it with following screw.
 2.5.0 x 3.0B BIND screw x1
Qosmio X500 Maintenance Manual (960-Q08) 4-34
