Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures
Installing a Wireless LAN card
The following describes the procedure for installing a Wireless LAN card.
1. Insert a wireless LAN card terminals slantwise into the connector on the computer
and press a wireless LAN card and lock the secure screws.
 M2.5. x 3.0B BIND screw x2
2. Connect the wireless LAN antenna cable to the terminals on a wireless LAN card.
3. Put the wireless LAN antenna cable on the right location from the guide (Antenna
cable locate top, USB cable locate bottom and FM cable locate middle).Stick the tape
of cable on the surface. If fail to stick, replace tape with new adhesive tape.(see
Figure 4-10-3)

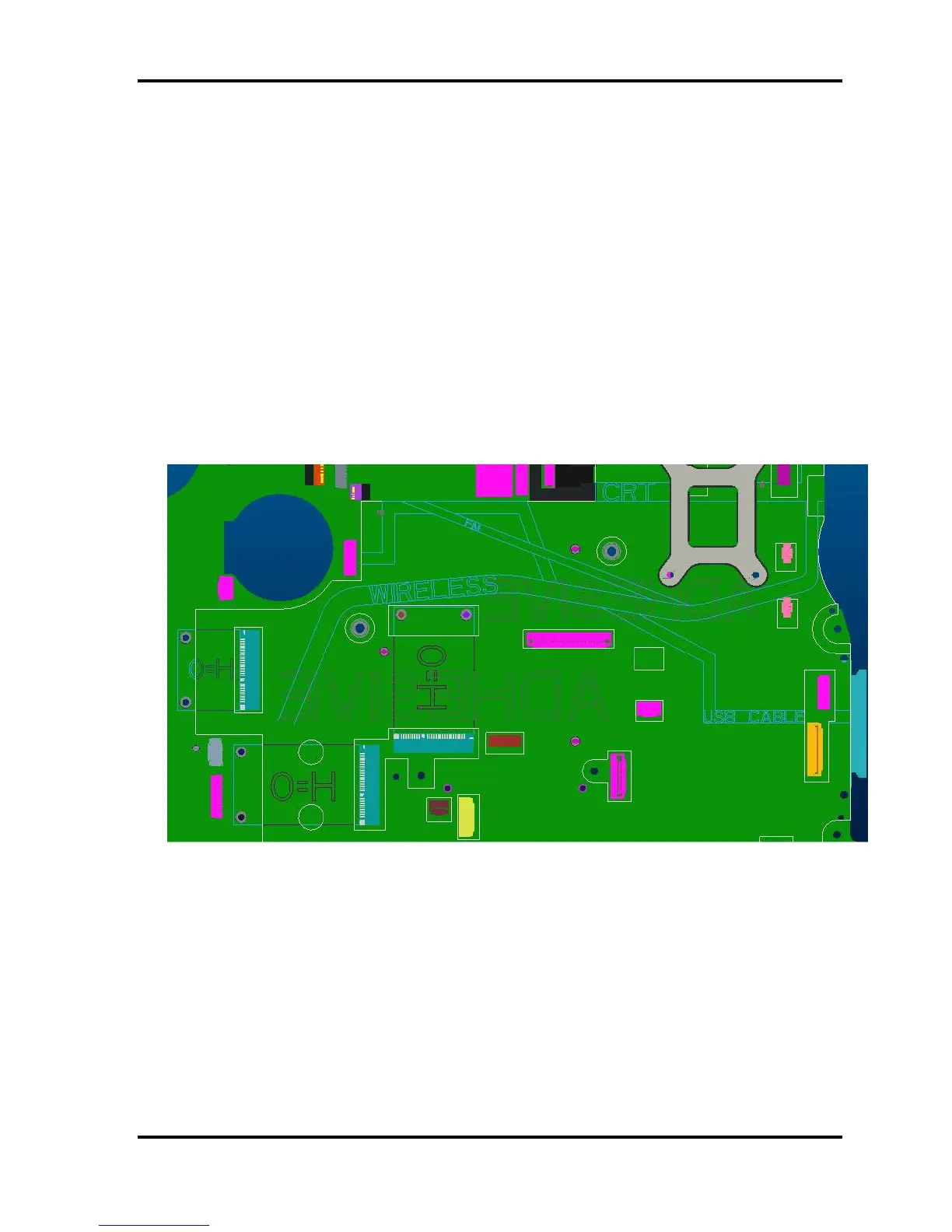

Figure 4-10-3 Cables layout on motherboard
Qosmio X500 Maintenance Manual (960-Q08) 4-33

Toshiba Qosmio X500 Specifications

General

Graphics	NVIDIA GeForce GTS 360M
Display Size	18.4 inches
Resolution	1920 x 1080 pixels
Storage	500GB HDD
Operating System	Windows 7 Home Premium
LAN	Gigabit Ethernet
USB Ports	4 x USB 2.0
HDMI	Yes
Processor	Intel Core i7
Optical Drive	Blu-ray Disc drive
Wireless	Wi-Fi 802.11n
Battery	Lithium-ion battery (various capacities)
Weight	10.1 lbs
RAM	Up to 8GB DDR3
