Chapter 1 Hardware Overview
1. Web Camera LED* 2. Web Camera*
3. Built-in microphone* 4. Wireless LAN/Wireless WAN Antennas (Not shown)
5. Speaker 6. Touch Pad
7. Fingerprint Sensor* 8. Touch Pad Control Buttons
9. Display Screen 10. Speaker
11. Power Button* 12. Internet Button*
13. CD/ DVD Button* 14. Previous Button*
15. Volume Down Button* 16. Mute Button*
17. Play/Pause Button* 18. Next Button* 19. Volume Up Button*

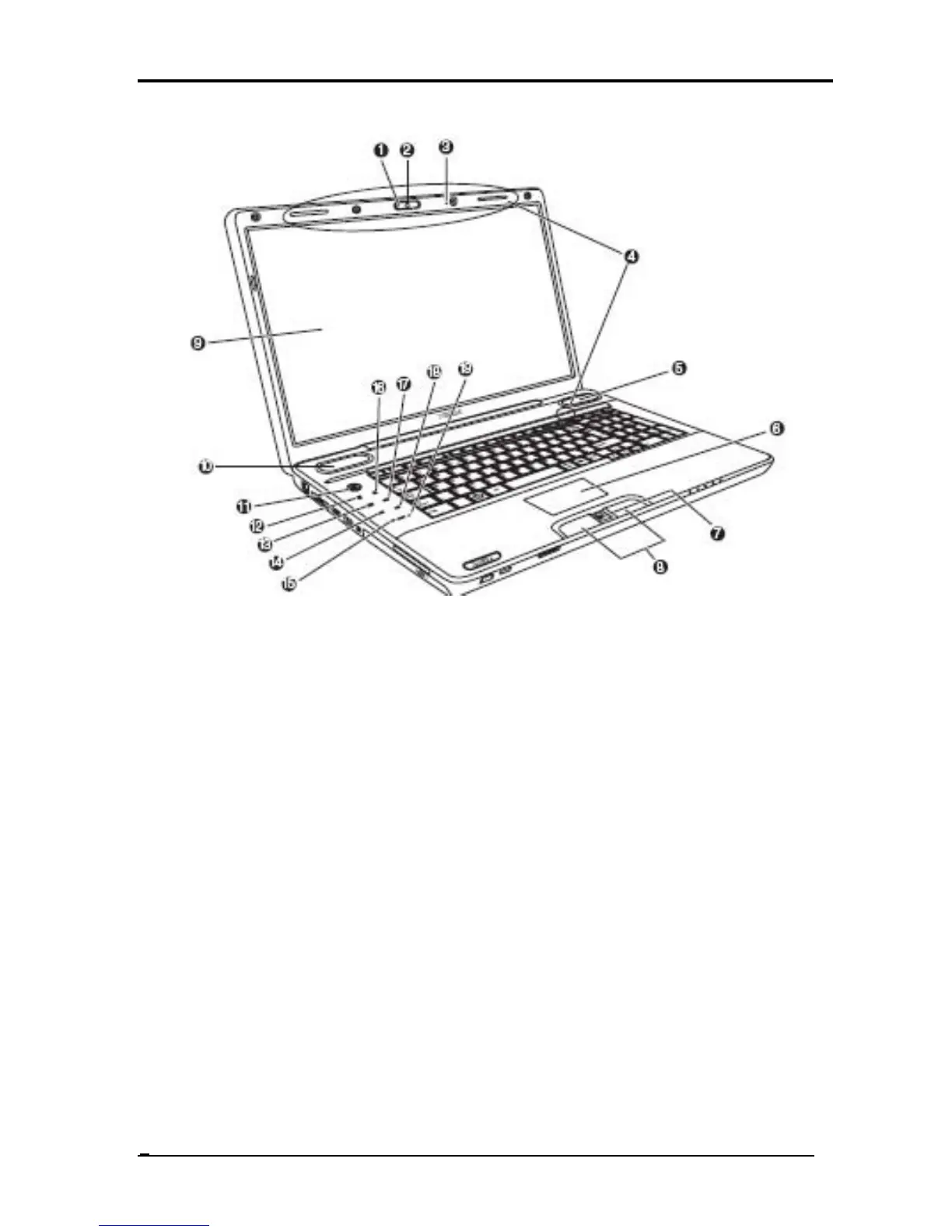

Figure 1-1-1 Front of the computer
Qosmio X500
Maintenance Manual (960-Q08)
