Toshiba Qosmio X500 - Hdd(Second Hdd)

Replacement Procedures
4.7 HDD (SECOND HDD)
Removing second HDD-H9.5mm / HDD-H12.5mm
The following describes the procedure for removing the second HDD (See Figure 4-7-1 to 4-
7-3).
CAUTION: Take care not to press on the top or bottom of a HDD. Pressure may cause
data loss or damage to the device.
1. Turn the computer upside down.
2. Remove the following screws securing a HDD slot cover and remove a HDD slot
cover.
 M2.54.0B FLAT BIND screw x2
3. Remove the following screws securing the HDD assembly.
 M2.53.0B FLAT BIND screw x2
4. Disconnect the HDD assembly from the connector on the system board.

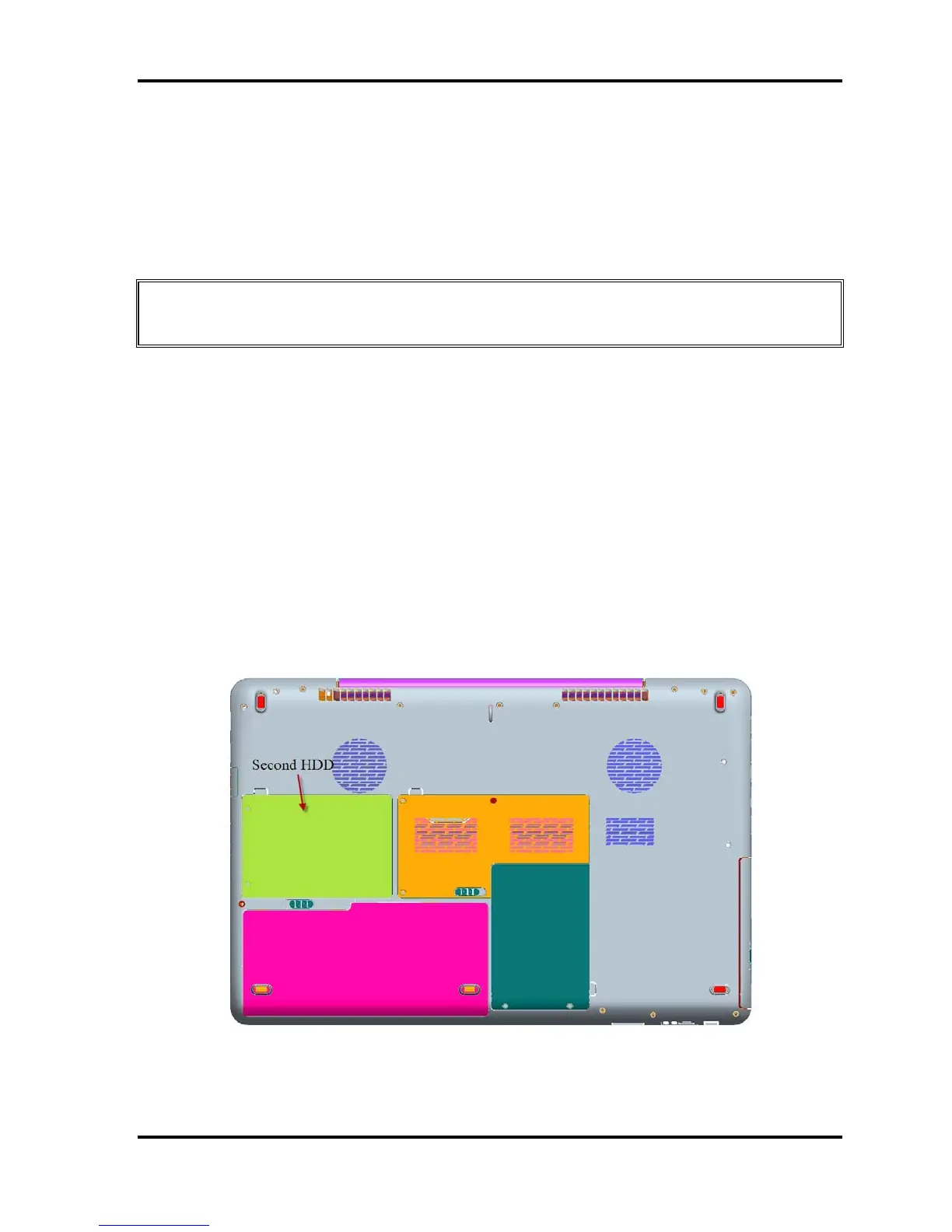

Figure 4-7-1 Turn the computer upside down
Qosmio X500 Maintenance Manual (960-Q08) 4-21
