Replacement Procedures
4.18 System Board
CAUTION: 1. when handling the system board, always hold by the edges. Do not touch
the printed circuit face.
2. if replacing with a new system board, execute the subtest01 Initial
configuration in section 3.3 “Setting of the hardware configuration”. Also
update with the latest BIOS
Removing the System Board
The following describes the procedure for removing the system board (See Figure 4-18-1 to
4-18-2).
1. Disconnect the power cable from the system board.
Power Cable

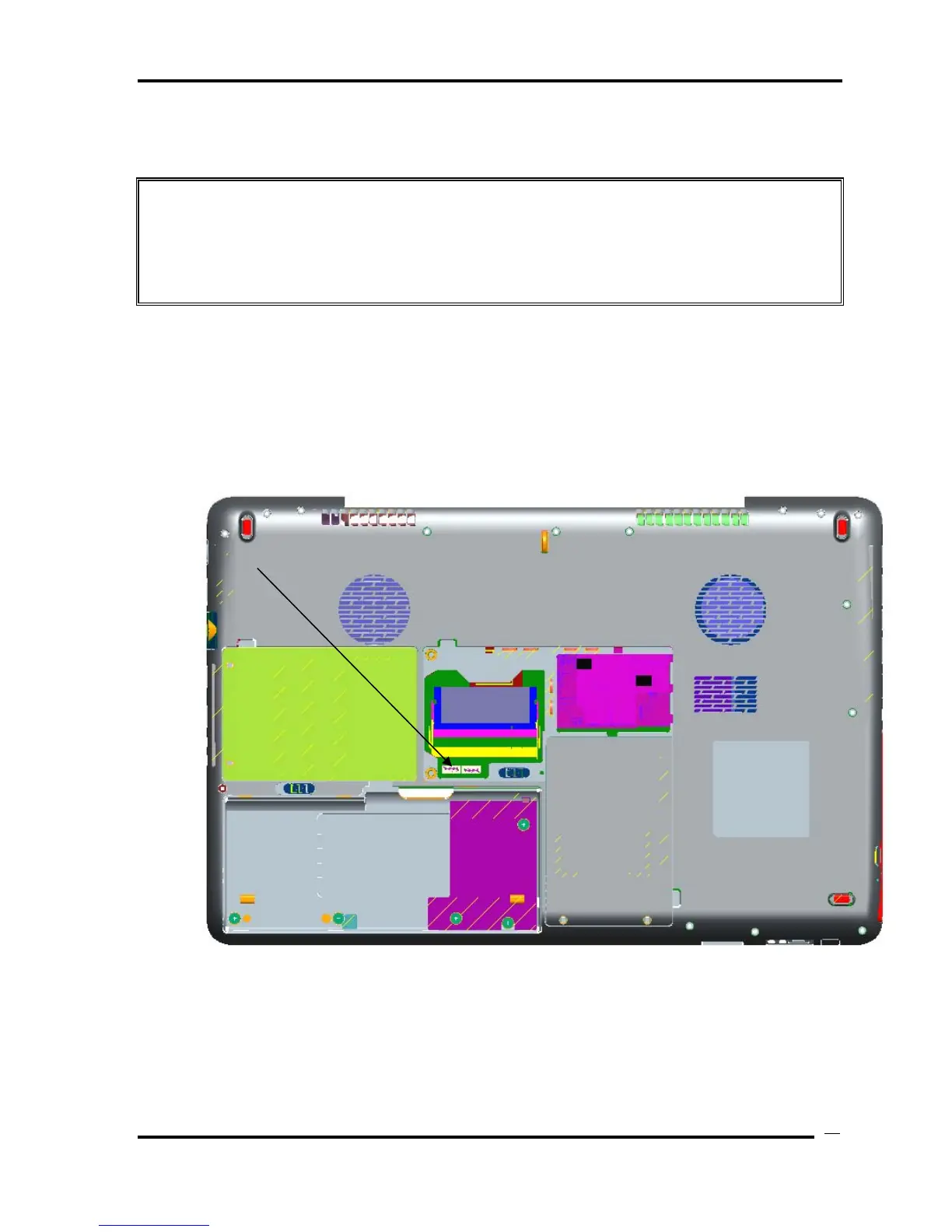

Figure 4-18-1 Disconnect the power cable
Qosmio X500 Maintenance Manual (960-Q08)
50
