Toshiba Qosmio X500

Replacement Procedures
2. Disconnect the speaker cable, LCD CABLE, WIRELESS ANTENNA, CRT cable,
USB cable, FM CABLE, MDC CABLE, and TV-F ANTENNA from the
connector on the system board.
3. Remove the following screws securing the fan and the system board and remove the
system board.
 M2.56.5 screw x2
 M2.56.5 screw x3

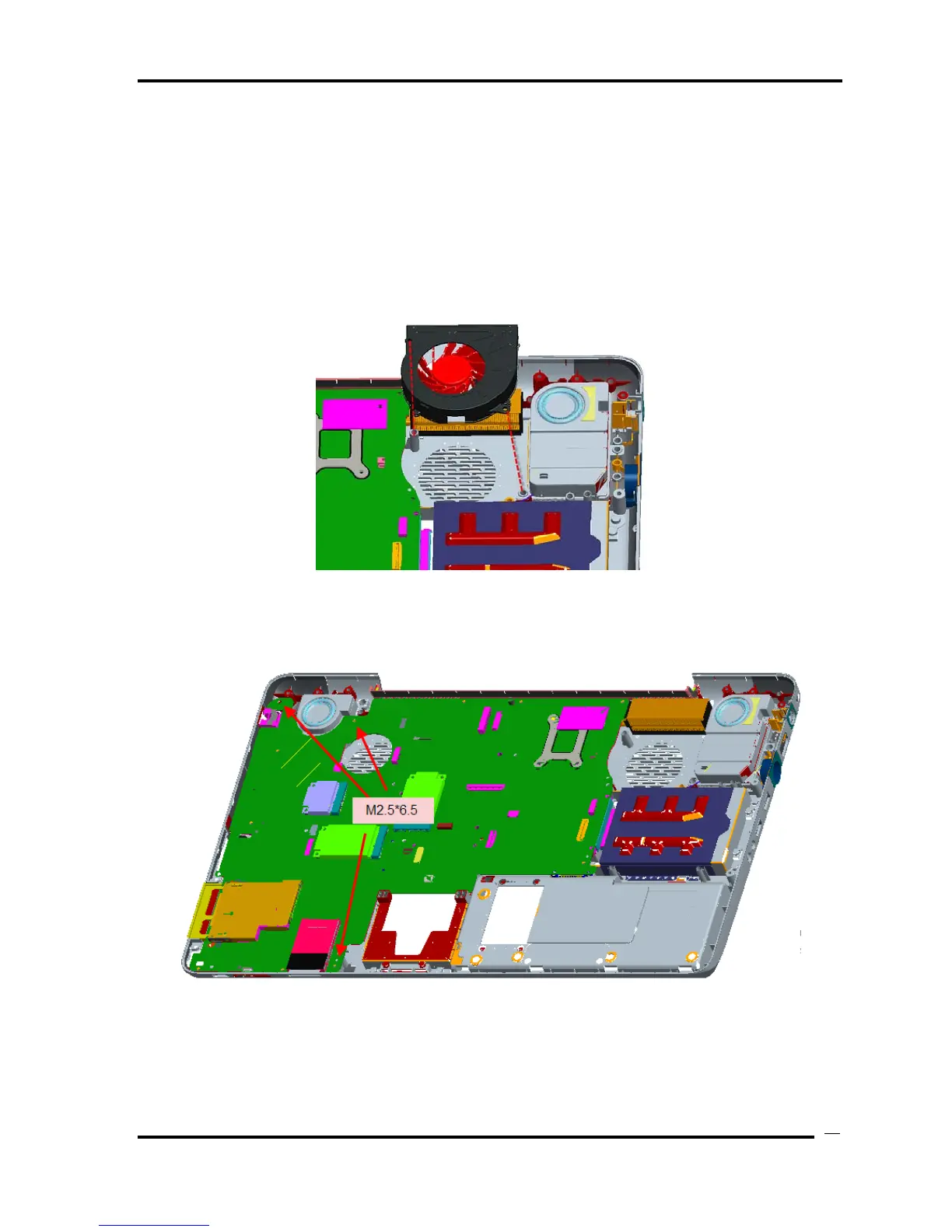

Figure 4-18-2 Remove the system board
Qosmio X500 Maintenance Manual (960-Q08)
51
