Replacement Procedures
Removing RTC battery

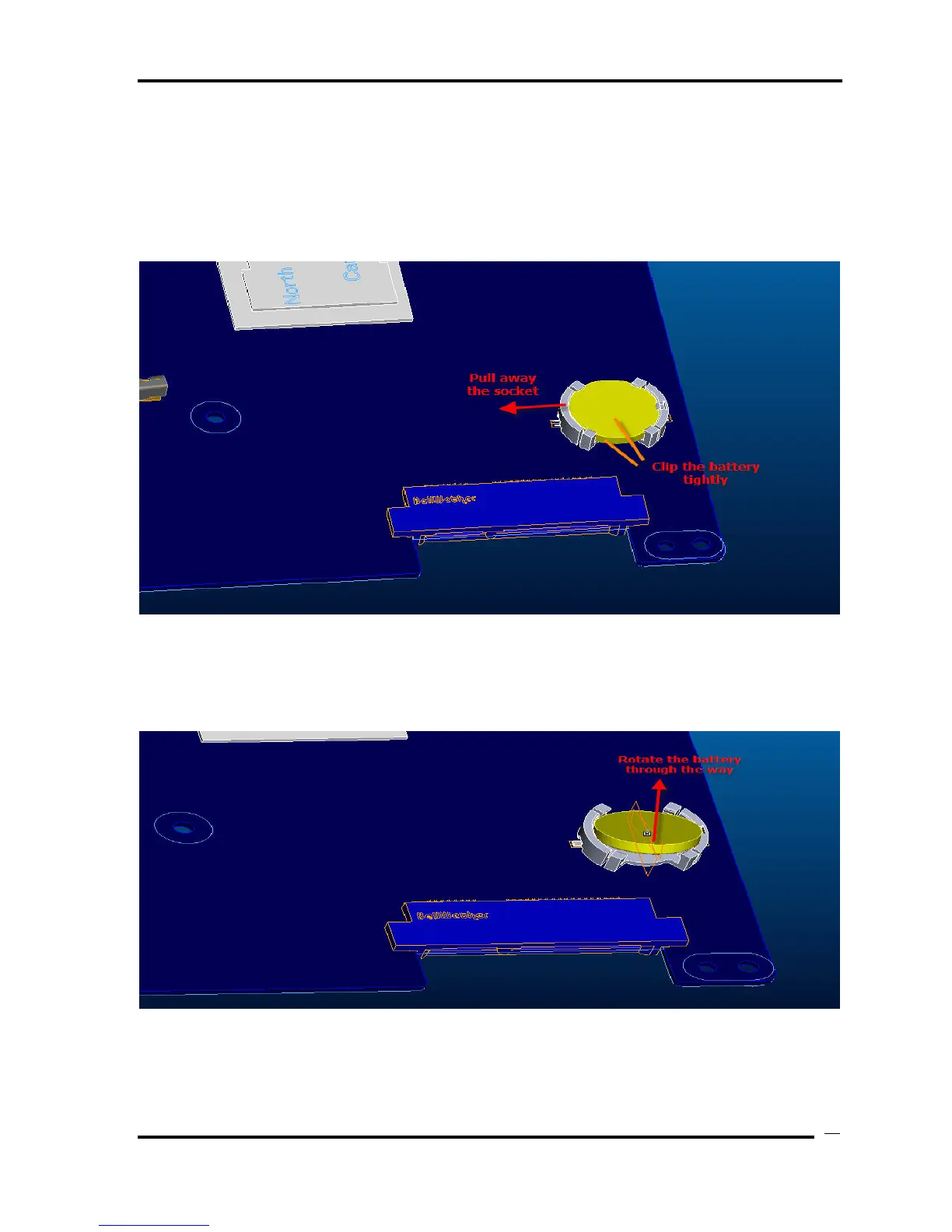

The following describes the procedure for removing the RTC battery unit (See Figure 4-18-3
to 4-18-4).
1. Pull the away the socket of RTC battery and use a clamp to hold RTC battery tightly.
Figure 4-18-3 Pull away from the socket of RTC Battery
2. Rotate battery through the way then remove it.
Figure 4-18-4 Rotate the RTC Battery
Qosmio X500 Maintenance Manual (960-Q08)
52
