Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures
Installing the System Board
The following describes the procedure for installing the system board.
1. Secure the system board with the following screws.
M2.56.5 screw x3
2. Secure the fan with the following screws.
M2.56.5 screw x2
3. Connect the speaker cable, LCD CABLE, WIRELESS ANTENNA, CRT cable,
USB cable, FM CABLE, MDC CABLE, and TV-F ANTENNA to the connector
on the system board.
4. Connect the power cable to the connector on the system board
Installing RTC battery
The following describes the procedure for installing the RTC battery unit
(See Figure 4-18-5).
1. Press the force vertically then lock the RTC battery tightly.

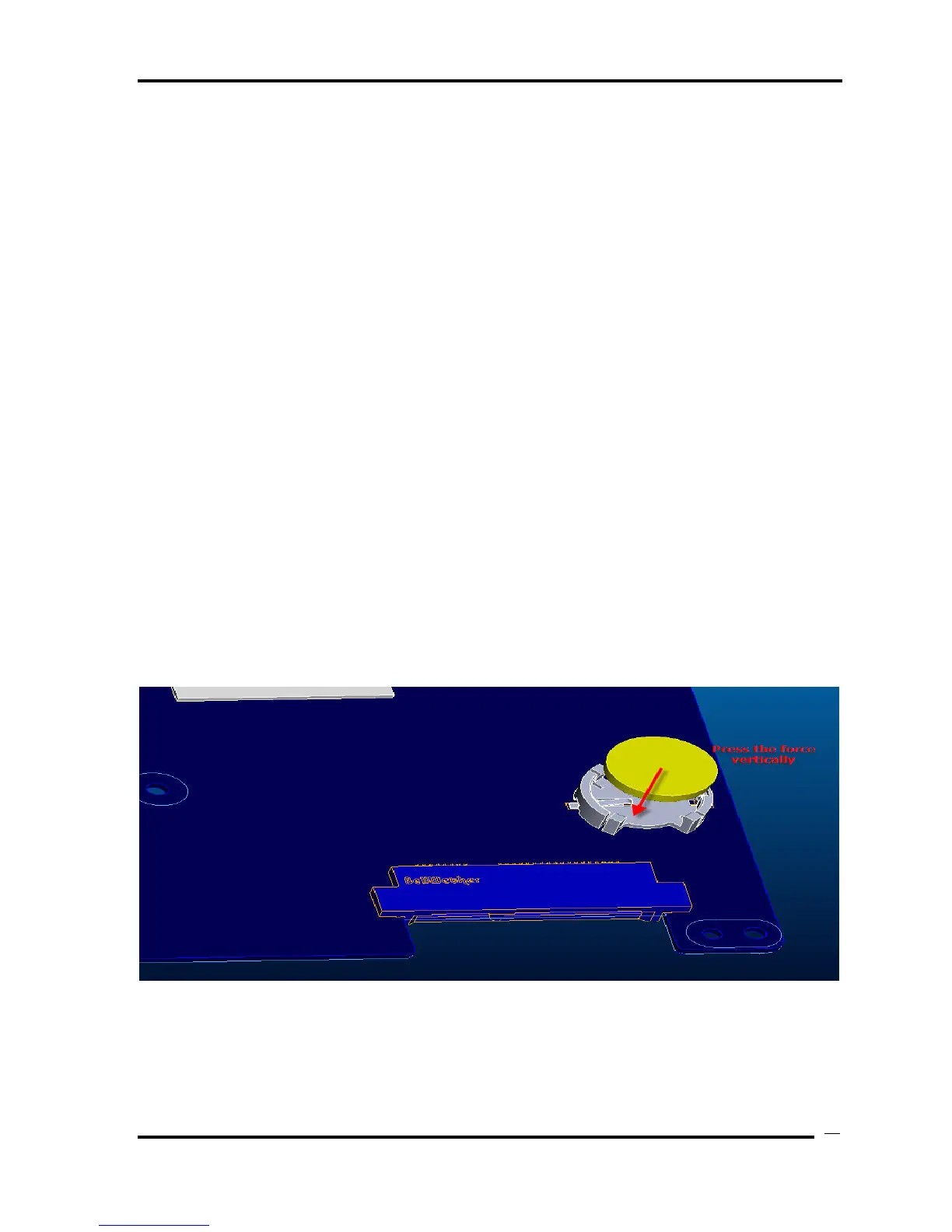

Figure 4-18-5 Install the RTC battery
Qosmio X500 Maintenance Manual (960-Q08)
53

Toshiba Qosmio X500 Specifications

General

Graphics	NVIDIA GeForce GTS 360M
Display Size	18.4 inches
Resolution	1920 x 1080 pixels
Storage	500GB HDD
Operating System	Windows 7 Home Premium
LAN	Gigabit Ethernet
USB Ports	4 x USB 2.0
HDMI	Yes
Processor	Intel Core i7
Optical Drive	Blu-ray Disc drive
Wireless	Wi-Fi 802.11n
Battery	Lithium-ion battery (various capacities)
Weight	10.1 lbs
RAM	Up to 8GB DDR3
