Toshiba Qosmio X500 Maintenance Manual

Troubleshooting Procedures
Procedure 2 Antennas' Connection Check

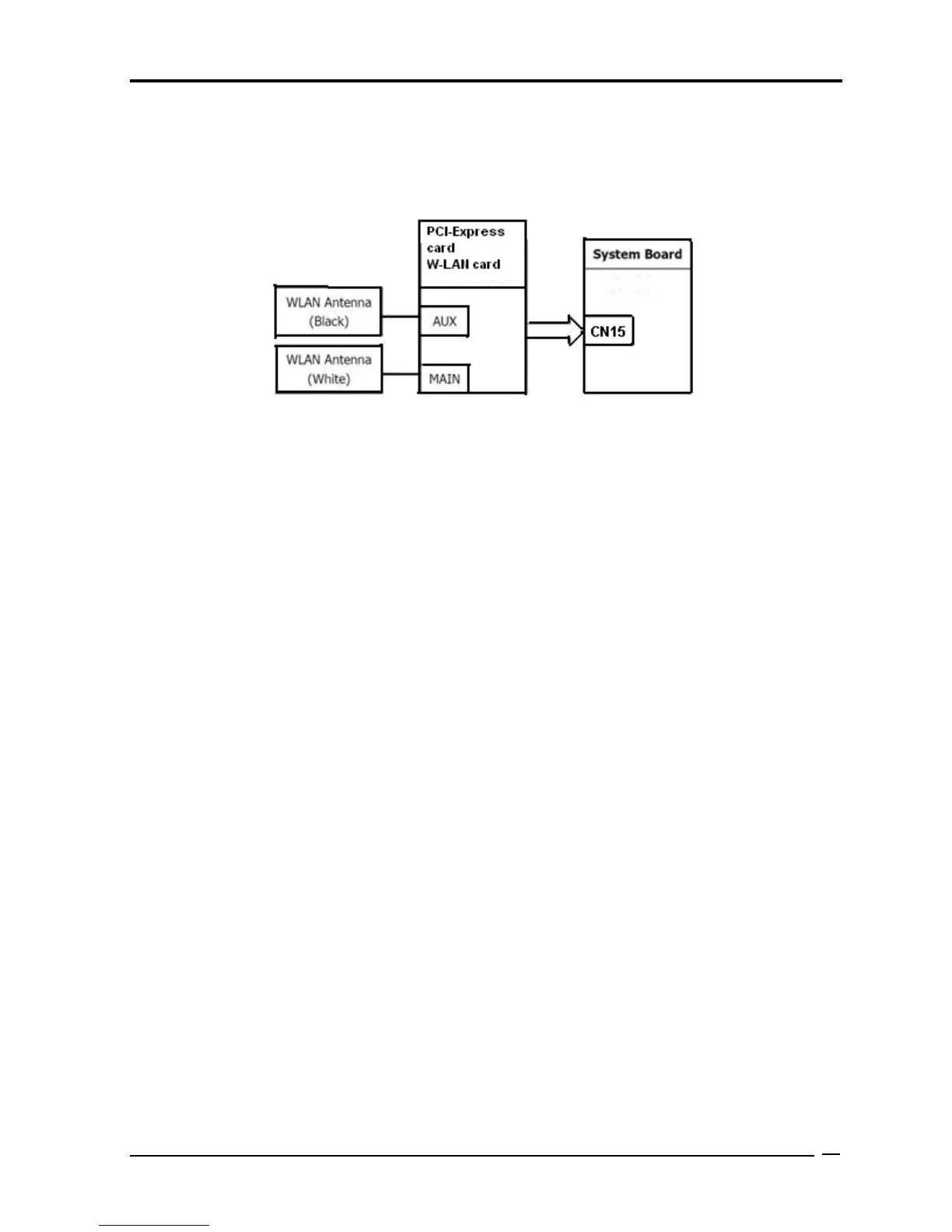

The wireless LAN function-wiring diagram is shown below:
Any of the connections may be defective. Disassemble the computer following the steps
described in Chapter 4, Replacement Procedures, and perform the following checks:
Check 1 Make sure the wireless communication is Enabled in BIOS setup
If the Wireless communication is "Disabled", change it to "Enabled". If the
problem still occurs, perform Check 2.
Check 2 Make sure wireless LAN card is firmly connected to the CN15 on system board. If
the connector is defective, connect it firmly and perform Procedure 1. If the
problem still occurs, perform Check 3.
Check 3 Make sure that wireless LAN antenna cables (black and white) are firmly
connected to the connectors on Wireless LAN card. If wireless LAN antenna
cables are not connected properly, connect them firmly and perform Procedure 1.
If the problem still occurs, go to the procedure 3.
36
Qosmio X500 Maintenance Manual (960-Q08)

Toshiba Qosmio X500 Specifications

General

Graphics	NVIDIA GeForce GTS 360M
Display Size	18.4 inches
Resolution	1920 x 1080 pixels
Storage	500GB HDD
Operating System	Windows 7 Home Premium
LAN	Gigabit Ethernet
USB Ports	4 x USB 2.0
HDMI	Yes
Processor	Intel Core i7
Optical Drive	Blu-ray Disc drive
Wireless	Wi-Fi 802.11n
Battery	Lithium-ion battery (various capacities)
Weight	10.1 lbs
RAM	Up to 8GB DDR3
