Toshiba Qosmio X500 - Display Assembly

Replacement Procedures
4
4.13 Display assembly
Removing the display assembly
The following describes the procedure for removing the display assembly (See Figure 4-13-1
to 4-13-5).
1. Close the display and turn the computer upside down.
2. Remove the battery pack (See Figure 4-2-1)
3. Remove the Main HDD door screws and open the MAIN HDD Door, remove Optical
Drive Disk.
 M2.54.0 FLAT BIND screw x2
 M2.53.0 FLAT BIND screw x1

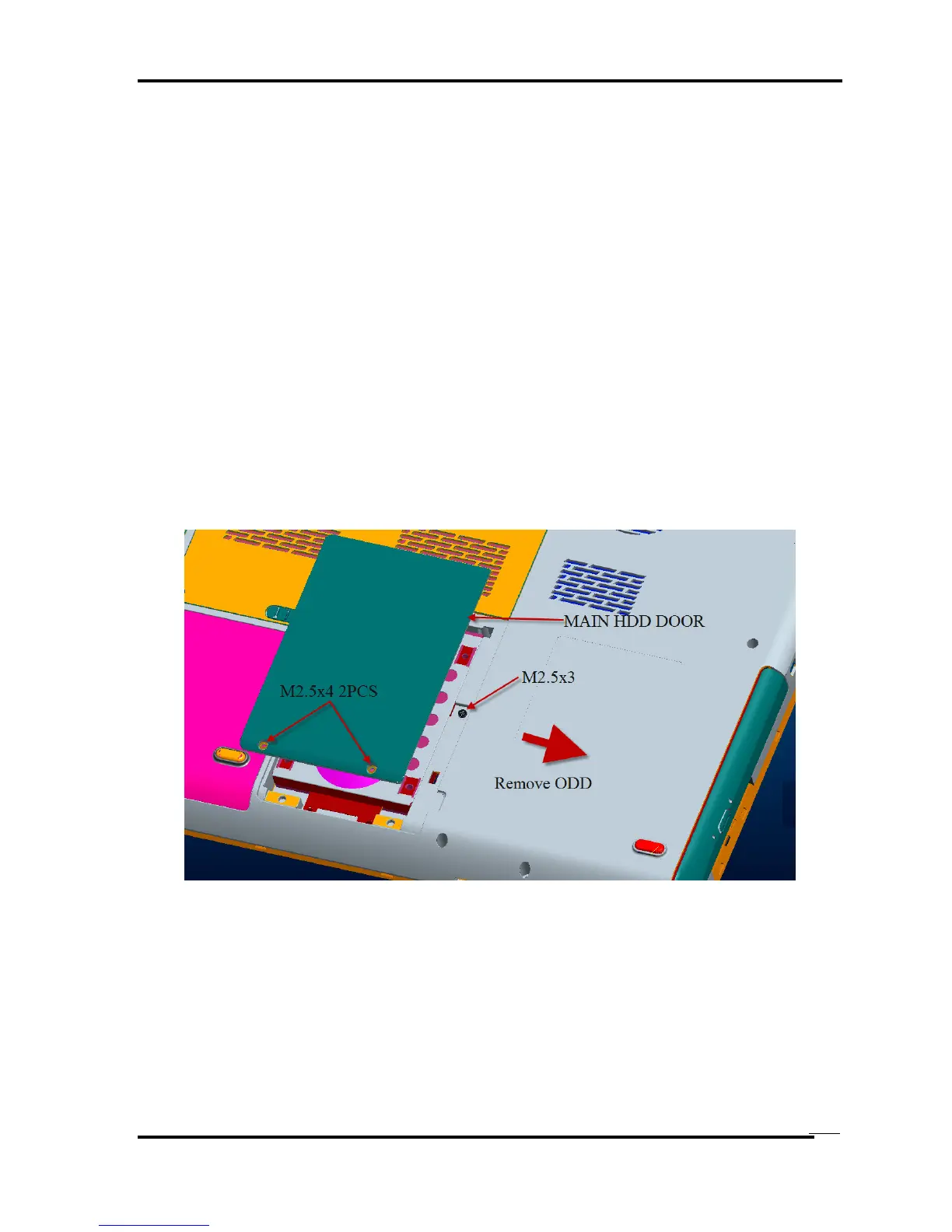

Figure 4-13-1 Remove the screws (securing display assembly)
4. Open the SECOND HDD Door.
5. Remove the screws from the bottom side.
Qosmio X500 Maintenance Manual (960-Q08)
4-37
