Toshiba Qosmio X500

Replacement Procedures
 M2.56.5 FLAT BIND screw x11
 M2.58.0 FLAT BIND screw x6
 M2.54.0 FLAT BIND screw x2
 M2.5X3.0 FLAT BIND screw x1
 M2.52.0 FLAT BIND screw x5

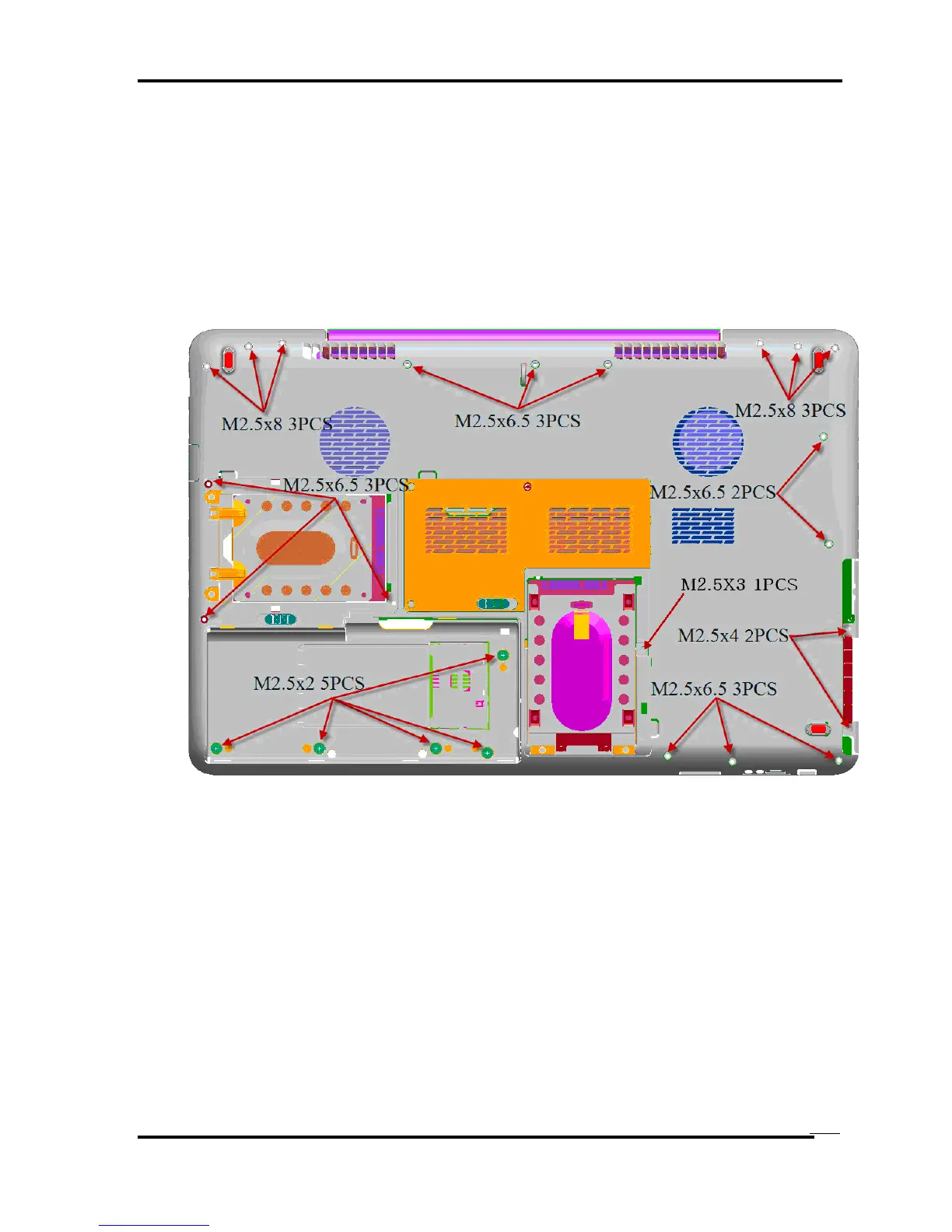

Figure 4-13-2 Remove the screws (from bottom side)
6. Disassemble KBD Holder and Keyboard screw (See Figure 4-9-1)
 M2.5x3.0 Flat BIND screws x4
7. Remove the screws from the top side and remove the cover.
 M2.5x6.5 Flat BIND screws x7
 M2.5x3.0 Flat BIND screws x2
Qosmio X500 Maintenance Manual (960-Q08)
4-38
