Replacement Procedures

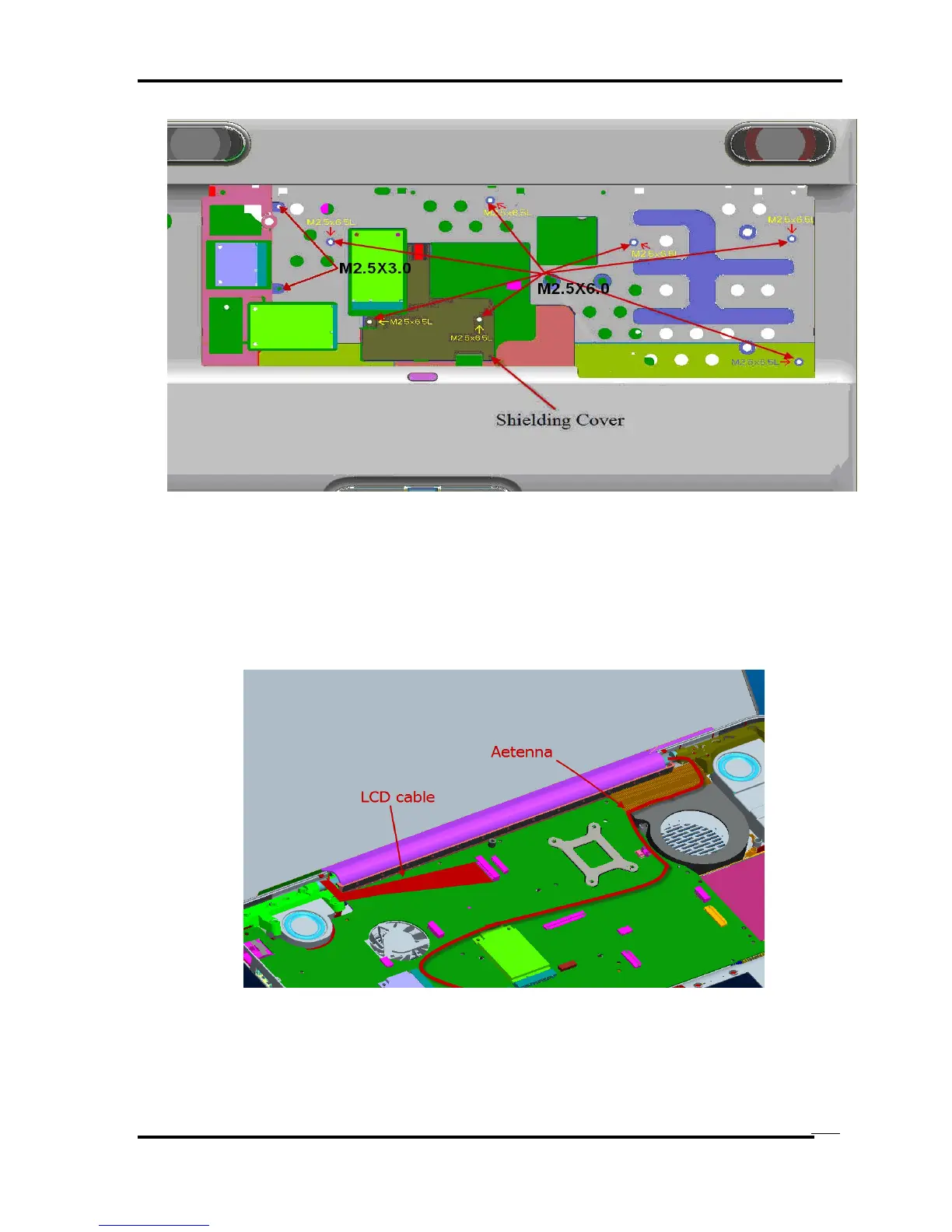

Figure 4-13-3 Remove the screws (from top side)
8. Disconnect the FFC and cables.
9. Disassembly TOP cover.
10. Pull out the wireless LAN antenna and LCD cables from the guide.
Figure 4-13-4 Remove the Wireless Antenna and LCD cable
Qosmio X500 Maintenance Manual (960-Q08)
4-39
