Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures
Opening the display to 135degree, and remove the hinge screw.
‧ M2.56.5 FLAT BIND screw x6 (Locktight)

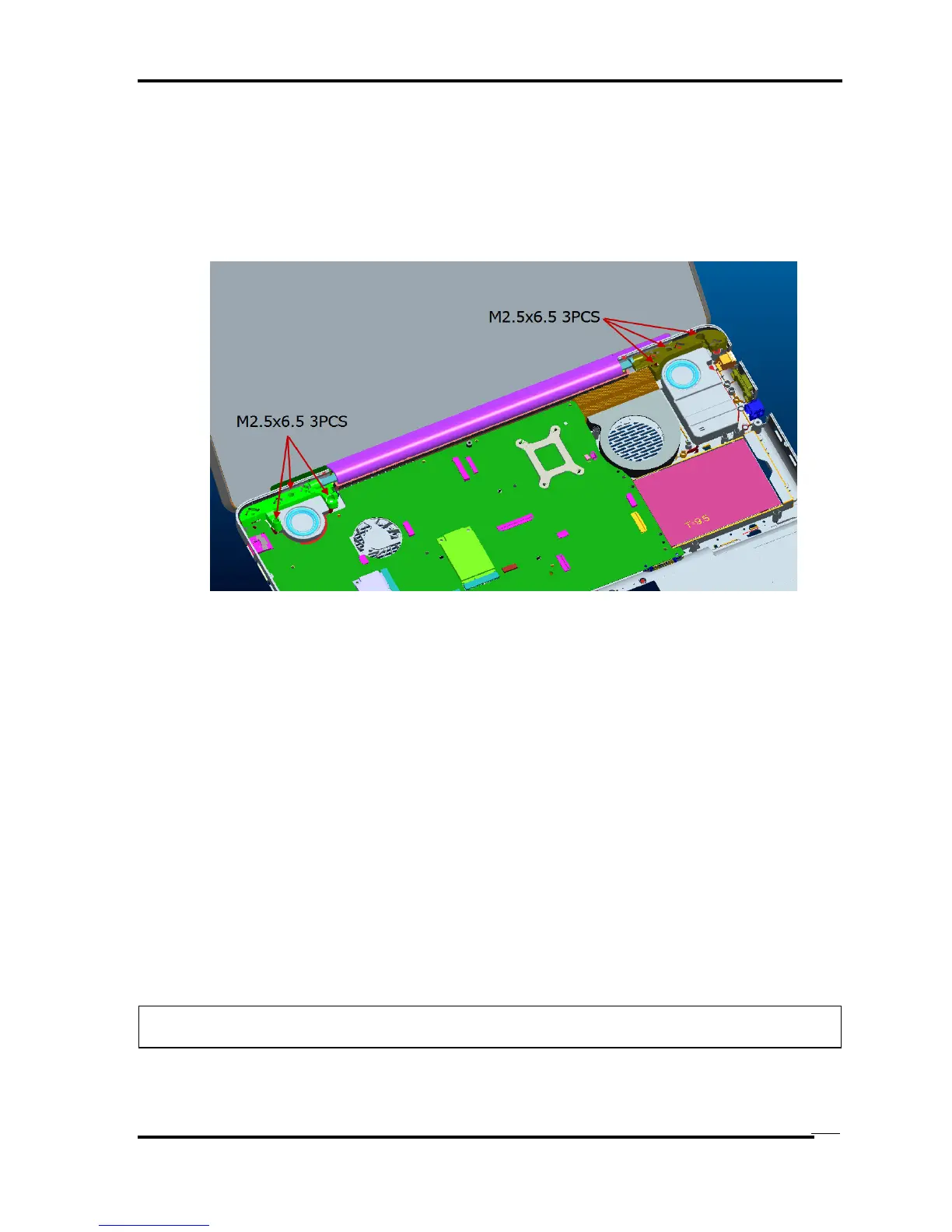

Figure 4-13-5 Remove the hinge screws
11. Pulling out the pole of hinge from the hole of hinge assembly, remove the display
assembly from the base assembly.
Installing display assembly
The following describes the procedure for installing the display assembly.
1.
Inserting the pole of hinge to the hole of hinge assembly, set the display assembly
on the base assembly.
2. Secure the hinges with the following screws secure the display mask with the
following screws and stick the mask seal on them.
 M2.56.5 FLAT BIND screw x6 (Locktight)
NOTE: Be sure to apply the locktight to the screws instructed in the figure above.
3. Connect the LCD harness to the connector on the system board.
Qosmio X500 Maintenance Manual (960-Q08)
4-40

Toshiba Qosmio X500 Specifications

General

Graphics	NVIDIA GeForce GTS 360M
Display Size	18.4 inches
Resolution	1920 x 1080 pixels
Storage	500GB HDD
Operating System	Windows 7 Home Premium
LAN	Gigabit Ethernet
USB Ports	4 x USB 2.0
HDMI	Yes
Processor	Intel Core i7
Optical Drive	Blu-ray Disc drive
Wireless	Wi-Fi 802.11n
Battery	Lithium-ion battery (various capacities)
Weight	10.1 lbs
RAM	Up to 8GB DDR3
