Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures
4.14 Top Cover assembly
Removing the Top cover assembly
The following describes the procedure for removing the top cover assembly (See Figure 4-
14-1 to 4-14-3).
1. Turn over the computer.
2. Remove the following screws securing the top cover assembly from the back and
bottom of computer.
 M2.52.0 FLAT BIND screw Back x5
 M2.56.5 FLAT BIND screw Back x11
 M2.58.0 FLAT BIND screw Back x6
 M2.54.0 FLAT BIND screw Back x2
 M2.53.0 FLAT BIND screw Back x1

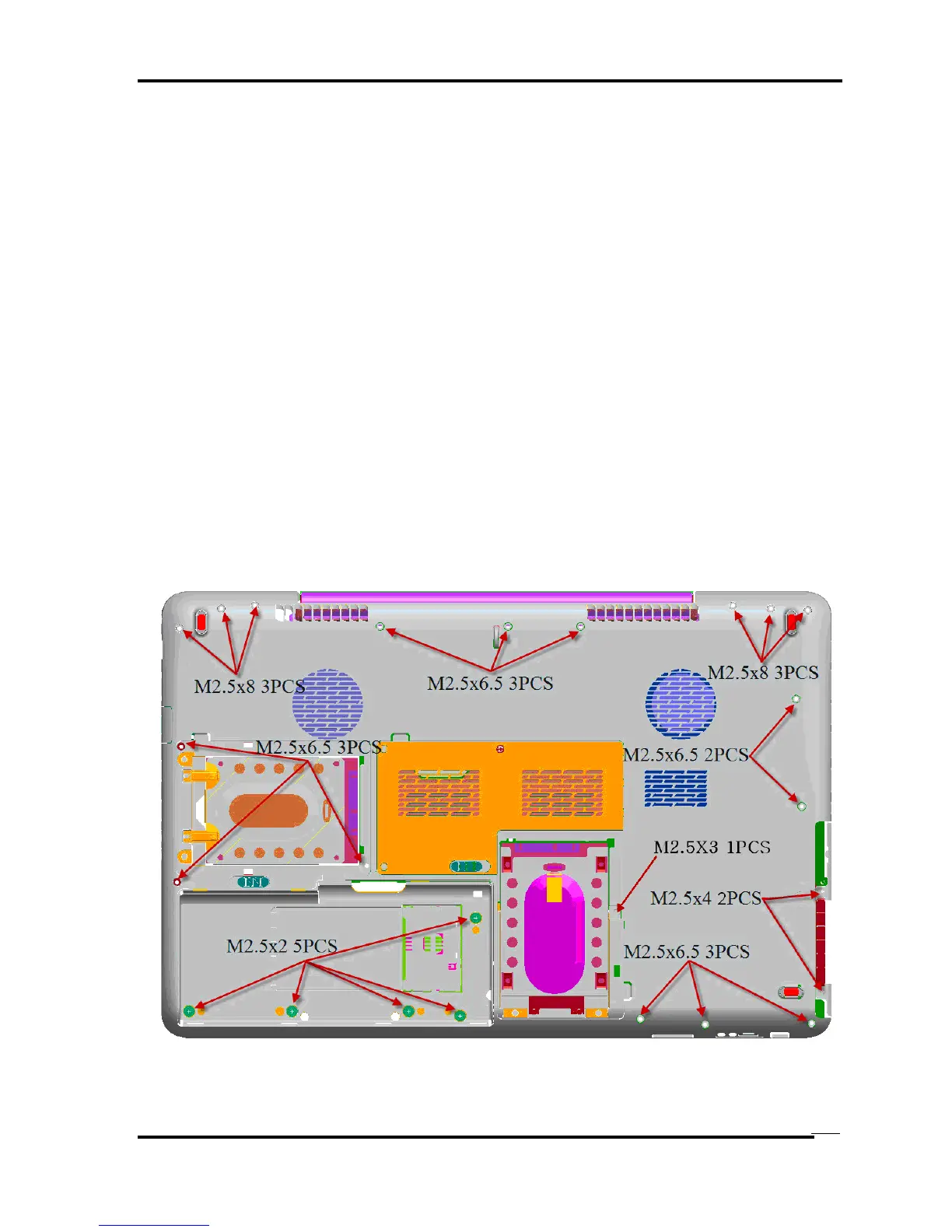

Figure 4-14-1 Remove the screws (back)
Qosmio X500 Maintenance Manual (960-Q08)
4-42
