Replacement Procedures
3. Remove the following screws securing the top cover assembly from the front of
computer. Pull up and remove the top cover assembly from the base assembly.
M2.5x6.5 Flat BIND screws x7

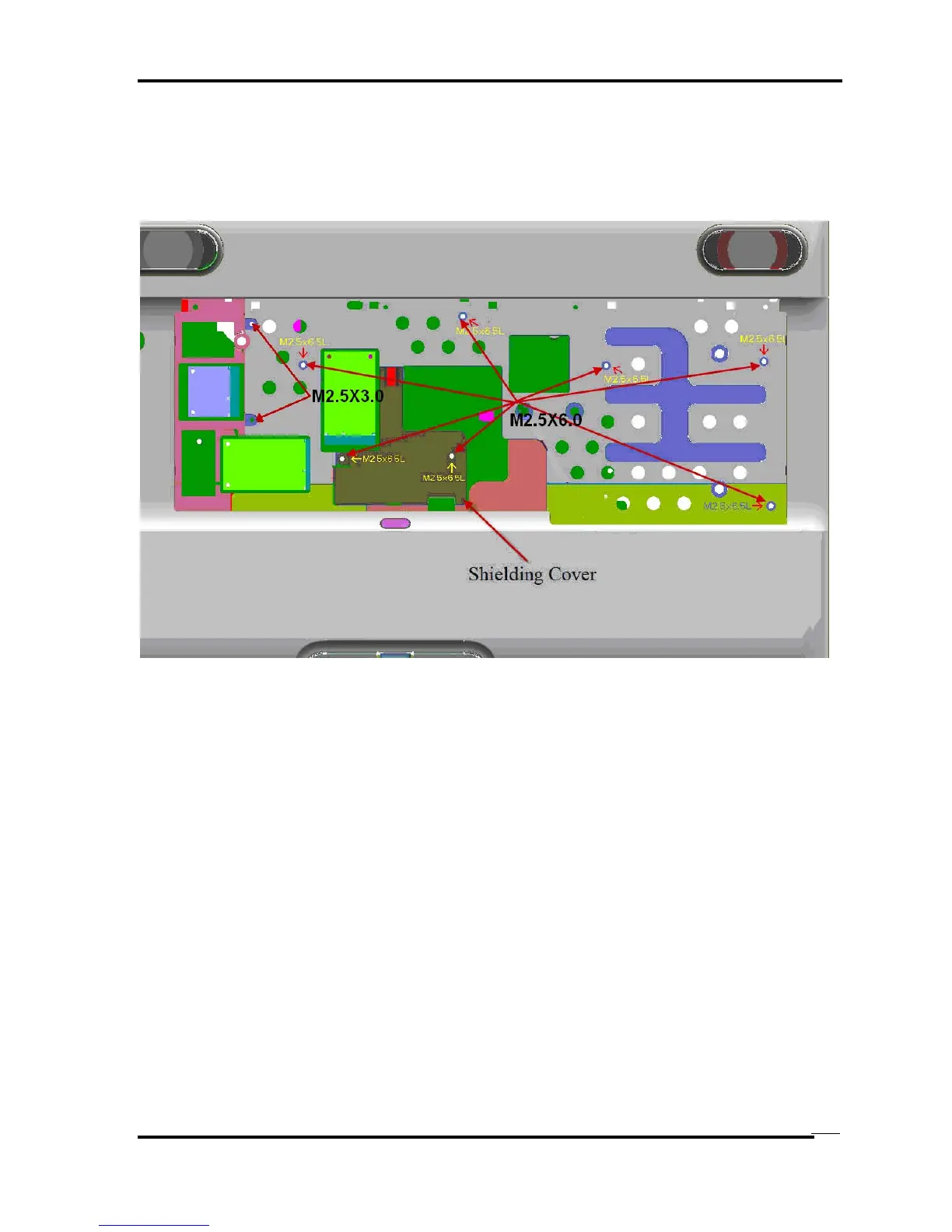

Figure 4-14-2 Remove the screws (front) and top cover assembly
4. Disconnect the touch pad flat cable/Fingerprint cable from the connector on the
system board.
Qosmio X500 Maintenance Manual (960-Q08)
4-43
