Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures

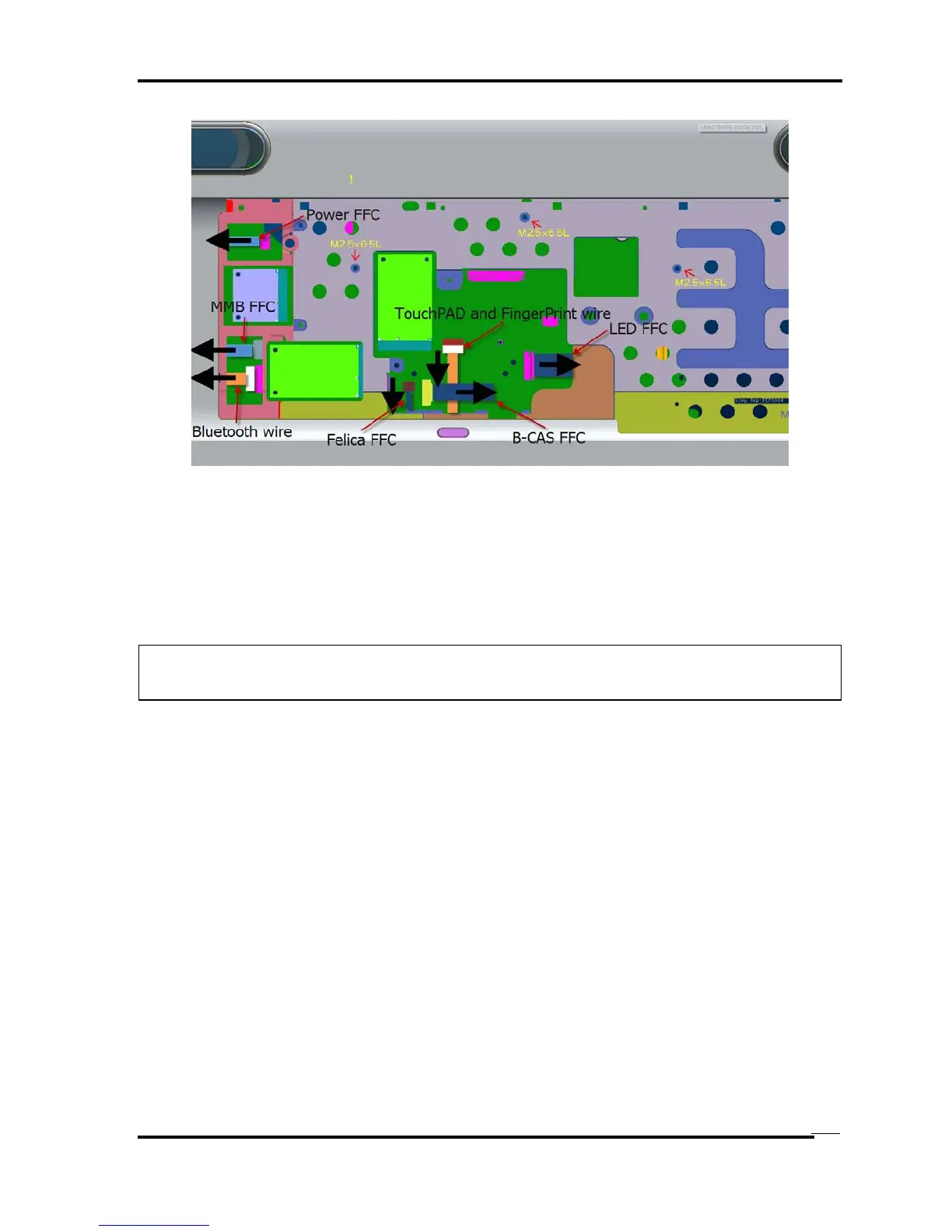

Figure 4-14-3 Disconnect the touch pad flat cable/Fingerprint cable
Installing Top Cover assembly
The following describes the procedure for installing the top cover assembly.
1. Install the top cover assembly to the base assembly.
NOTE: Be careful not to catch the cables between top cover assembly and base
assembly.
2. Connect the touch pad flat cable to the connector on the system board.
3. Secure the top cover assembly with following screws from the front of computer.
 M2.5x6.5 Flat BIND screws x7
 M2.5x3.0 Flat BIND screws x2
4. Secure the top cover assembly with the following screws from the back and bottom
of computer.
 M2.52.0 FLAT BIND screw x5  M2.56.5 FLAT BIND screw x11
 M2.58.0 FLAT BIND screw x6  M2.54.0 FLAT BIND screw x2
 M2.53.0 FLAT BIND screw x1
5. Free the cable from cable-drain when through the antenna cable to PCB hole.
Qosmio X500 Maintenance Manual (960-Q08)
4-44

Toshiba Qosmio X500 Specifications

General

Graphics	NVIDIA GeForce GTS 360M
Display Size	18.4 inches
Resolution	1920 x 1080 pixels
Storage	500GB HDD
Operating System	Windows 7 Home Premium
LAN	Gigabit Ethernet
USB Ports	4 x USB 2.0
HDMI	Yes
Processor	Intel Core i7
Optical Drive	Blu-ray Disc drive
Wireless	Wi-Fi 802.11n
Battery	Lithium-ion battery (various capacities)
Weight	10.1 lbs
RAM	Up to 8GB DDR3
